SL Series - OEM
HF RFID Reader


The SL series are a range of OEM RFID Reader/Writer modules with integrated antenna design (except for SL013) for easy integration into various products and system.

The MIFARE™ versions are based on NXP's transponder IC and supports MIFARE™ Classic 1K, MIFARE™ Classic 4K, MIFARE Ultralight™ and is applicable for 13.56MHz.

The ISO15693 version supports I.CODE SLI and Tag_it HF tags.

Options of RS232, TTL, USB Serial and HID (Keyboard wedge) are available.

Features

  • RFID Reader/Writer
  • HF / 13.56MHz
  • ISO 15693 and ISO 14443A/Mifare Protocols
  • Easy to interface
  • Low Cost

Specifications

  SL025*
SL030/031

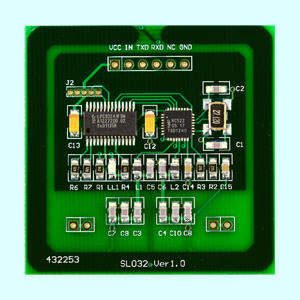

SL032

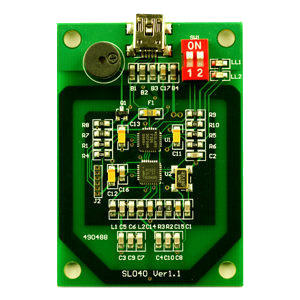

SL040
SL060

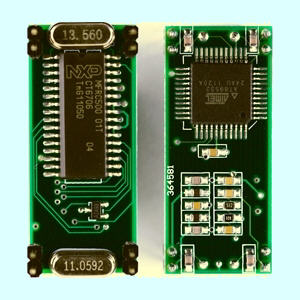

SL013

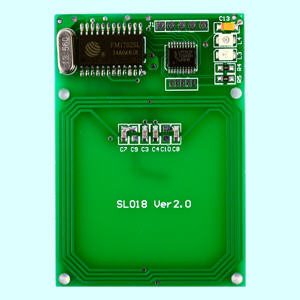

SL018
SL015
  Physical Characteristics
Size 86x55mm 38x38mm 46x46mm 65x46mm 46x46mm 42x18mm 65x45mm 86x55mm*
  Power
Power Input 4.4 to 12V/DC 2.5 to 3.6V/DC 2.5 to 3.6V/DC 4.5 to 5.5V/DC 2.5 to 3.6V/DC 4.5 to 5.5V/DC 4.5 to 5.5V/DC 4.5 to 5.5V/DC
  Reader
Frequency 13.56MHz
Internal Antenna Yes Yes Yes Yes Yes No Yes Yes
Auto Detecting Yes Yes No Yes Yes No Yes Yes
Read/Write Yes Yes Yes Read Only Yes Yes Yes Yes
Protocol ISO14443A ISO14443A ISO14443A ISO14443A ISO14443A
ISO18092 NFCIP-1
ISO14443A ISO14443A ISO15693
Tags Supported Ultralight, NTAG203, MIFARE Mini, MIFARE™ Classic 1K, MIFARE™ Classic 4K, FM11RF08 Ultralight, NTAG203, MIFARE Mini, MIFARE™ Classic 1K, MIFARE™ Classic 4K, FM11RF08 Ultralight, NTAG203, MIFARE Mini, MIFARE™ Classic 1K, MIFARE™ Classic 4K, FM11RF08, DESFire Ultralight, NTAG203, MIFARE Mini, MIFARE™ Classic 1K, MIFARE™ Classic 4K, FM11RF08, ProX, DESFire Ultralight, NTAG203, MIFARE Mini, MIFARE™ Classic 1K, MIFARE™ Classic 4K, FM11RF08, DESFire MIFARE™ Classic 1K, MIFARE Mini, FM11RF08 Ultralight, NTAG203, MIFARE Mini, MIFARE™ Classic 1K, MIFARE™ Classic 4K, FM11RF08 I.CODE SLI, Tag_it HFI
Read Distance Upto 50mm, dependant on tag
  Interface
Communication RS232 or TTL I2C or TTL TTL USB HID K/B UART TTL I2C RS232 or TTL**

* LS015M-3 and SL025M(TTL) are 80x55mm

** SL015B-3 RS232 only, SL015M-3 TTL only

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] SL015 Series - ISO15693 HF RFID Reader/Writer

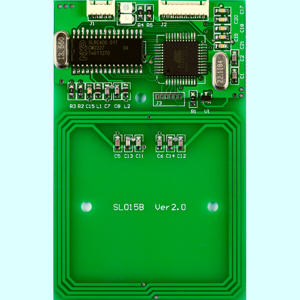

1-9035-030-5 SL015B-3 RFID Reader Module, HF ISO15693 with RS232 interface $99.00 B
1-9035-050-3 SL015M-3 RFID Reader Module, HF ISO15693 with UART interface $88.00 B
[B] SL025 Series - Mifare RFID Reader/Writer

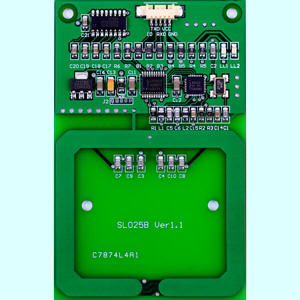

1-9035-010-7 SL025B RFID Reader Module, HF Mifare with RS232 with Cable $77.00 B
1-9035-040-4 SL025M RFID Reader Module, HF Mifare with TTL Interface $88.00 B
[C] SL030 Mifare RFID Reader/Writer

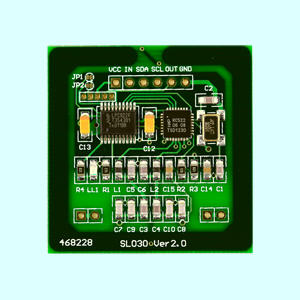

1-9035-020-6 SL030 RFID Reader Module, HF Mifare with I2C interface $77.00 B
1-9035-021-5 SL031 RFID Reader Module, HF Mifare with UART interface $77.00 B
[D] SL060 NFC & Mifare RFID Reader/Writer
1-9035-080-0 SL060 RFID Reader Module, NFC R/W with UART $99.00 B
[E] Mifare HF 13.56 RFID Tags
9-9860-090-9 RFT6008H-MF1 RFID Contact Sticker OM (Mifare 1K) $8.03 C
9-9800-010-5 FXT1.1-SLI-X ISO15693 Ferroxtag Screw Box - Epoxy (Blue) $22.00 C
9-9800-040-2 FXT2.1-SLI-BARCODE ISO15693 Ferroxtag L-Shape Black (Barcoded) $18.48 C
9-9840-011-0 RFT4001H-NM1 RFID HF Metal-Mount 34mm Disk with Hole Tag MIFARE 1K S50 $5.50 C
