RFID - Transponder - HF
TI 13.56MHz Industrial

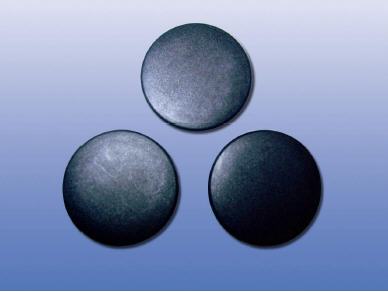

The 13.56MHz Encapsulated Transponder from Texas Instruments is compliant with the ISO/IEC 15693 standard, a global open standard that allows interoperability of products from multiple manufacturers. With a user memory of 2k bits, organized in 64 blocks, the rugged 13.56MHz Encapsulated Transponder allows for advanced solutions in demanding supply chain management applications such as laundry tracking. It is especially designed and tested for applications that require a ruggedized transponder that can withstand harsh environments.

Features

  • 13.56 MHz
  • Encapsulated
  • ISO/IEC 15693 Standard
  • 2k or 256bit onboard RAM in 64 Blocks

Specifications

Part NumberRF-HDT-DVBB-NO (2Kbit) / RF-HDT-DVBE-NO (256bit)
Supported StandardISO 15693-2,-3
Resonance Frequency13.56 MHz 300 kHz
Typical required activation strength to read (@25C)112 dBA/m
Typical required activation strength to write (@25C)115 dBA/m
Factory programmed Read Only Number64 bits
Memory (user programmable)2k bits (in 64 32-bit blocks) or
256 bits (in 8 32-bit blocks)
Typical programming cycles(@25C)100,000
Data retention time (@25C)>10 years
Simultaneous Identification of Tags Up to 50 tags per second (reader/antenna dependent)
Dimensions 22 0.2 mm x 3 0.2 mm
Weight 1.6 0.3 grams
Case Material PPS, black
Protection Class IP 68
Operating temperature -25C to +90C
Storage temperature -25C to +120C+160C for total 50 hours
+220C for total 30 seconds
Vibration ISO/IEC 68.2.6 (10g, 10..2000Hz, 3 axis, 2.5h)
Mechanical Shock ISO/IEC 68.2.27 (100g, 6ms, 6 axis, 20 times per axis)
Mechanical Stability Axial compression strength: 1000N (10s, static)
Radial compression strength: 500N (10s, static)
Isostatic water pressure: 45 bar (10h)
Chemical Resistance Typical chemicals used in laundry and dry-cleaning processes
Delivery 1000 units in bulk
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Texas Instruments 31.56 MHz Encapsulated Transponder
Stock Line
1-9031-101-6 RF-HDT-DVBE-NO Transponder, HF ISO15693, Industrial Tag 256b $3.44 3
Indent
1-9031-100-9 RF-HDT-DVBB-NO Transponder, HF ISO15693, Industrial Tag 2Kb $4.71 3
