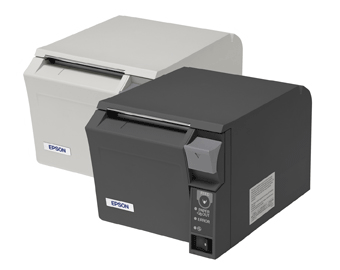

Epson - TM-T70
POS Thermal Printer



The TM-T70 is a high speed thermal receipt printer incorporating the high quality and reliability of the TM-T88 Series, whilst also providing a quiet and unobtrusive printing solution with it's full front operation, making it ideal for hospitality and retail environments

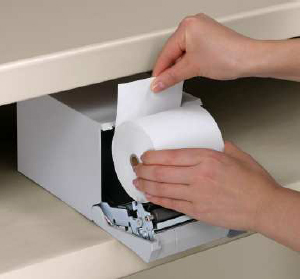

The TM-T70 gives retailers the ability to print clean receipts or coupons quickly, its partial cut delivery makes it easy to present to the customer, and the space saving design allows unobtrusive positioning on a crowded retail counter. Alternatively the TM-T70 can be mounted under the counter in a permanant fixture, as the front paper load, operation and presentation means it should never need to be moved again.

The TM-T70 features modular interface boards that enable users to select from Bi-directional Parallel, Serial, USB or Ethernet communications.

Features

  • High-speed printing of up to 170mm/sec.
  • Same fast print speed for both text and graphics
  • Ease-of-use features including front paper loading and exit, long-lasting autocutter and Auto Status Back messages
  • Improved cover design for increased spill resistance
  • Wide range of interfaces Options
  • Low Cost USB Option
  • Three year warranty

Specifications

Physical Characteristics
Dimensions125 (w) x 194 (d) x 114 (h) mm
Weight1.8Kg
CutterPartial Cut
Environmental Characteristics
Operating Temperature5C to 45C
Storage Temperature-10C to 50C
Humidity

10 - 90% Relative Humidity (Excluding Paper)

Electrical Characteristics
Power Supply24 V DC +/- 7%
Power ConsumptionLow Power: 1.2A Std. - 6.6A Peak (Approx. @ 24 V)
Printing Characteristics
Print MethodThermal Line Printing
Print Resolution180 dpi x 180 dpi
Feed MethodFriction Feed
Print Width72 mm (512 Dot Positions)
Characters
per Line
Font A: 42
Font B: 56
Character SpacingFont A: 0.28 mm
Font B: 0.28 mm
Character SizeFont A: 1.41 x 3.39 mm Standard
Font B: 0.99 x 2.40 mm Standard
Font A: 1.41 x 6.77 mm Double Height
Font B: 0.99 x 4.80 mm Double Height
Font A: 2.82 x 3.39 mm Double Width
Font B: 1.98 x 2.40 mm Double Width
Font A: 2.82 x 6.77 mm Double Height & Width
Font B: 1.98 x 4.80 mm Double Height & Width
Print SpeedHigh Speed: 200 mm/s Max.
Low Power: 100 mm/s Approx.
Barcodes: 50 mm/s Approx.
Paper Feed Speed170 mm/s Max. Continuous Paper Feed
Line Spacing4.23 mm (Default)
Character StructureFont A: 12 x 24
Font B: 9 x 17
Media Specifications
Size79.5 mm Wide x 83 mm Diameter Max.
Core SizeInside: 12 mm, Outside: 18 mm
TypeThermal
Interface
StandardCentronics Parallel RS-232 Serial, or TM-T88IV Simple USB
OptionalRS-232 High Speed, RS-435, USB, 10/100 Base-T/TX Ethernet, IEEE 802.11b Wireless
Cash Drawer2 Drawers
Memory
Data Buffer4Kb or 45 Bytes (Selectable)
Bitmap Image Buffer256K (Non Volatile)
Page Mode Area106K
Life
Mechanism15,000,000 Lines
Thermal Head100,000,000 Pulses / 100Km
Auto Cutter1,500,000 Cuts
MTBF360,000 Hours
Safety and Regulatory
EMI StandardFCC/ICES-003 Class A
Safety StandardsUL1950/CSA C22.2 No. 950
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Epson TM-T70 with Power Supply & Interface Cable- Epson Dark Gray (EDG)
9-5011-096-6 TM-T70IIg-UP Thermal Receipt with P/S, EDG - USB and Parallel I/F $605.00 I
9-5011-097-5 TM-T70IIg-UE Thermal Receipt with P/S, EDG - USB and Ethernet $660.00 I
9-5011-098-3 TM-T70IIg-UW Thermal Receipt with P/S, EDG - USB and WiFi $726.00 I
[B] Epson TM-T70II-i Intelligent Printer with Power Supply - Indent Only
9-5011-095-8 TM-T70IIg-i Intelligent Thermal Receipt with P/S, EDG - Ethernet $1,023.00 H
[C] Accessories
9-5019-011-3 PS180 PowerSupply $132.00 E1
[D] Cable Assemblies
2-6088-020-0 CA6088-2 Serial D9 Skt to Printer (2m) $11.00 3
2-5101-020-4 CA101-2 Serial D25 to Printer $33.00 3
2-5102-020-9 CA102-2 Parallel Print Cbl 2M $11.00 3
2-6284-020-8 CA6284-2 Epson High Speed Printer Cable DB9F-DB9F $16.50 3
2-6270-020-5 CA6270-2 USB 2.0 Cable A/B, Black - 2m $8.80 C
2-6310-020-2 CA6310 USB Cable A/B, Black - 2m $11.00 C
[E] Consumables
9-9080-586-5 PR8080T/24 Thermal Paper Roll 80mm(w) x 80mm(d) (pk 24) $55.00 1
9-7080-050-1 CA005 Clean-Penn (each) $11.00 5
9-7080-051-8 CA006 Clean-Penn (pack 12) $88.00 5
9-9660-004-7 L75X32000D0H-B1 Label DT 75 mm x 32 m with Slit (ie. Continuous label) $13.20 C
