Troi - CC-74
UHF RFID Industrial Tag - Raw Braided Wire Tag

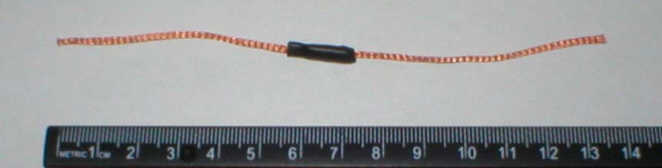

The TROI CC-74 ("Patents Pending") is a flexible braided wire based tag, employing rugged MSOP (chip) on board electronics design. The CC-74 has excellent read/write performance on any non-metal surface and can be embedded or molded into a variety of materials. Braid width dimension options are 2mm, 1.2mm & 0.7mm

Features

  • Small size
  • Consistent UHF range performance
  • EPC Class 1, Gen G2 (C1G2) Protocol
  • Delivers superior performance on a variety of materials
  • Reusable for lower cost per use

    • Specifications

    Supported StandardEPC Gen 2 / ISO 18000-6c Compliant
    Resonance Frequency902 - 928 MHz
    Memory96 bits
    Nominal Read DistanceUpto 3.0m under FCC Part 15 (36 dBm EIRP))
    Write DistanceUpto 0.3m under FCC Part 15 (36 dBm EIRP))
    Dimensions 114mm x 4mm (board area only) x 2 mm
    Operating temperature -78°C to +200°C
    (85°C 30 days; Shock 85°C/-25°C 1 week)
    (160°C 30 days; 125°C-100% Humidity 7 days; 200°C 24hr)
    Ordering Information and Pricing
    Part Number Model Number Description RRP
    Inc GST    		 T
    %
    [A] Troi Braided Wire Tag
    9-9820-040-6 CC-73 Chip Cover, Medium Braided Wire Tag $7.81 A
    9-9820-050-5 CC-74 Chip Cover , Narrow Braided Wire Tag $7.48 A
    [B] FT-7004 Flex Tag (Chip not covered)
    9-9820-250-9 FT-7004 Flex Tag $6.27 A6
