UMD - Assembly A120 Series
UHF RFID Control Panels

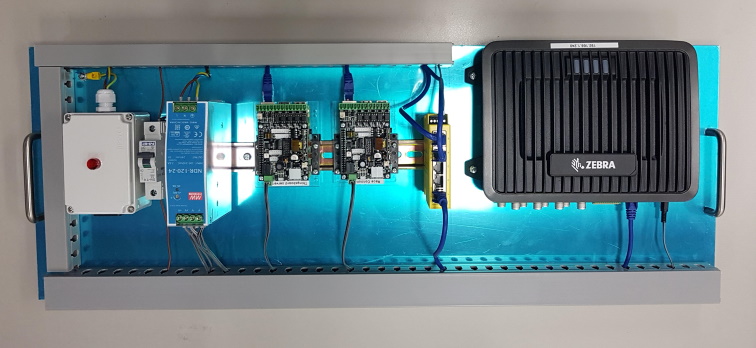

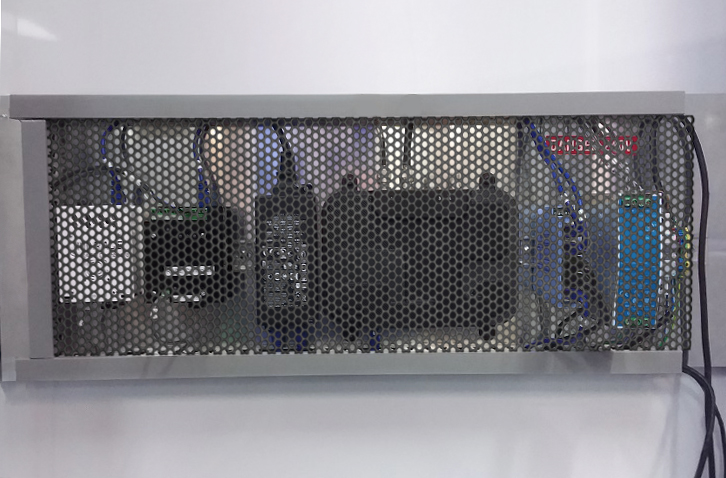

The UMD Model A120 Series of RFID Control Panels are prefabricated electrical control assemblies for embedding into RFID reading based systems such as RFID Portals and Tunnel Readers. (See UMD Model A123 Series for control box versions.)

The A120 series interconnects RFID Readers, Controllers, Network Devices, Input/Outputs and Power Supplies into a self contained control panel and uses industry standard DIN rail mounting components.

In particular the A120 Series forms the basis of UMD's RFID Advance Controller for Embedded (RACE) applications with the addition of UMD's RACE software.

The Linux based controller is used to attached LLRP based UHF readers and controls all aspect of portal systems including RFID data capture, sensor integration, diagnostics, database and communications.

Users may simply browse, using Wifi, to the RACE Dock portal to view diagnostics and basic functionality. Furthermore data capture can be processed prior to transferring to host systems via standard industry web services (REST/Jason).

  • Preassembled RFID Control Panel
  • Standard DIN mounting for flexible configuration and ease of servicing
  • Inputs/Outputs for connecting sensors an actuators
  • Ethernet and Wireless communications.
  • Supports any LLRP based RFID interrogator (reader/writer)
  • UMD RACE Architecture

Specifications

A120B Industrial UHF RFID Controller Configuration Guide

A120B



















RFID RFID Control Panel Assembly

 Panel Size

8



820 x 300 mm

 RFID Reader

F2



HSM IF2-ExMem - 4 port Ethernet (POE+)

Z2



Zebra FX7500 - 2 port RFID reader

Z4



Zebra FX7500 - 4 port RFID reader

Z8



Zebra FX9500 - 8 port RFID reader

Kx



Kathrein PRU4400, 4500, 4560, 4570

H4



Feig LR1002 with 4-Port Mux



Embedded Controller

0



None

L



Linux Controller

S



Linux Controller & Server - UMD M800C x 2 (Controller & Service



Network Switch

0



None

1



5 Port Switch (Advantech EK-2525P)

2



POE+ Injector (Advantech EK-2701HPI)

3



3 Port Switch (DIN Mount)

4



5 Port BrainBox SW505 Switch (DIN Mount)

5



5 Port Switch with POE+ (LNP-0500-24)

6



3 Port Switch with Wifi

W



Wifi (Pico M2)

C



4G Cellular Network Connection (LTE)



Power Supply

A



AC Input 240 Vac via IEC DIN connector Box

T



AC Input 240Vac - Terminal Block

D



DC Input 12Vdc-24Vdc

P



POE+ Input



I/O Module

0



Terminal Only

V



Vehicle Loop Detector (LD113B)



Options

00



Standard



Firmware

00



Unprogrammed

R0



UMD RACE Software (Device)

RD



UMD RACE with Dashboard Software



A120B





















Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] UMD A120B Series RFID Interrogator Assemblies
A120B8Z2S1A000RD UMD RFID Control Panel, Zebra FX7500-2, Server/Dashboard $6,072.00 U
A120B8Z4L1A000R0 Z0 With Zebra FX7500 RFID Reader & RACE Software
A120B8Z4S1A000RD Z1 With Zebra FX7500 RFID Reader & RACE+Dashboard
A120B8Z5L1A000R0 UMD RFID Control Panel, Zebra FX9600, Linux Controller U
A120B8Z5S1A000RD UMD RFID Control Panel, Zebra FX9600, Server U
A120B8Z8L1A000R0 UMD RFID Control Panel, Zebra FX9600, Linux Controller $5,907.00 U
A120B8Z8S1A000RD UMD RFID Control Panel, Zebra FX9600, Server $6,952.00 U
A120B8F2L1A000RD UMD RFID Control Panel - Honeywell IF2 Linux and RACE Software $5,027.00 U
[B] Key Components and Spare Parts
RFID Interrogators (LLRP based)
IF2B010020 IF2B IF2B,Mem-En,920-926MHz,Australia $1,936.00 H
FX7500-22325A50-WR FP7500-2P ZEBRA RFID FX7500 GEN-2 2-PORT POE WW $1,859.00 A
FX7500-42325A50-WR FP7500-4P ZEBRA RFID FX7500 GEN-2 4-PORT POE WW $2,013.00 A
FX9600-42325A50-WR FX9600-4 ZEBRA FX9600 FIXED RFID READER 4-PORT POE $2,332.00 A
FX9600-82325A50-WR FX9600-8 ZEBRA FX9600 FIXED RFID READER 8-PORT POE $2,739.00 A
Controllers
M800BR100RL M800B UMD DIN Controller with GPIO and RACE LLRP Software $660.00 U
Communications
SW-505 SW-505 Switch, 5 Port DIN Mount, 10/100Mbps $242.00 A
EKI-2701HPI-AE INDUSTRIAL IEEE 802.3AT GIGABIT POE INJ $ 429.00 B
LNP-0500-25 LNP-0500-24 5Port Industrial PoE+ (30W) Unmanaged Ethernet Switch (12-36VDC) $451.00 H
Interfaces
LD113B LD113B LD113B Single Channel 12/24V DC Screw Mount $187.00 A
Power
1-6009-130-6 PS24RS5000D-T Din Mount 120W Power Supply 24V/5A $165.00 C
1-6009-091-8 PS12RS4500D-T Din Mount 60W Power Supply12V/4.5A $132.00 U3
1-6009-220-0 PS12RS10000D-T Power Supply, 120W, 12V DC Switching, 10A, DIN Mounting $132.00 J
1-6009-230-6 PS24RS2500D-T Power Supply, 60W, 24V DC Switching, 2.5A, DIN Mounting $99.00 J
1-5101-010-5 MSN110 Mini Circuit Breaker, C Curp 1P 10A 6KA DIN Mount $8.36 A
A350A1D30
Hardware
4-0152-080-7 IF61/IF2 to FX7500 Mounting Bracket Adaptor $66.00 A
Cables
2-6073-005-7 CA6073-0.5 Modular Patch RJ45 - 0.5m (Blue) $2.20 U1
