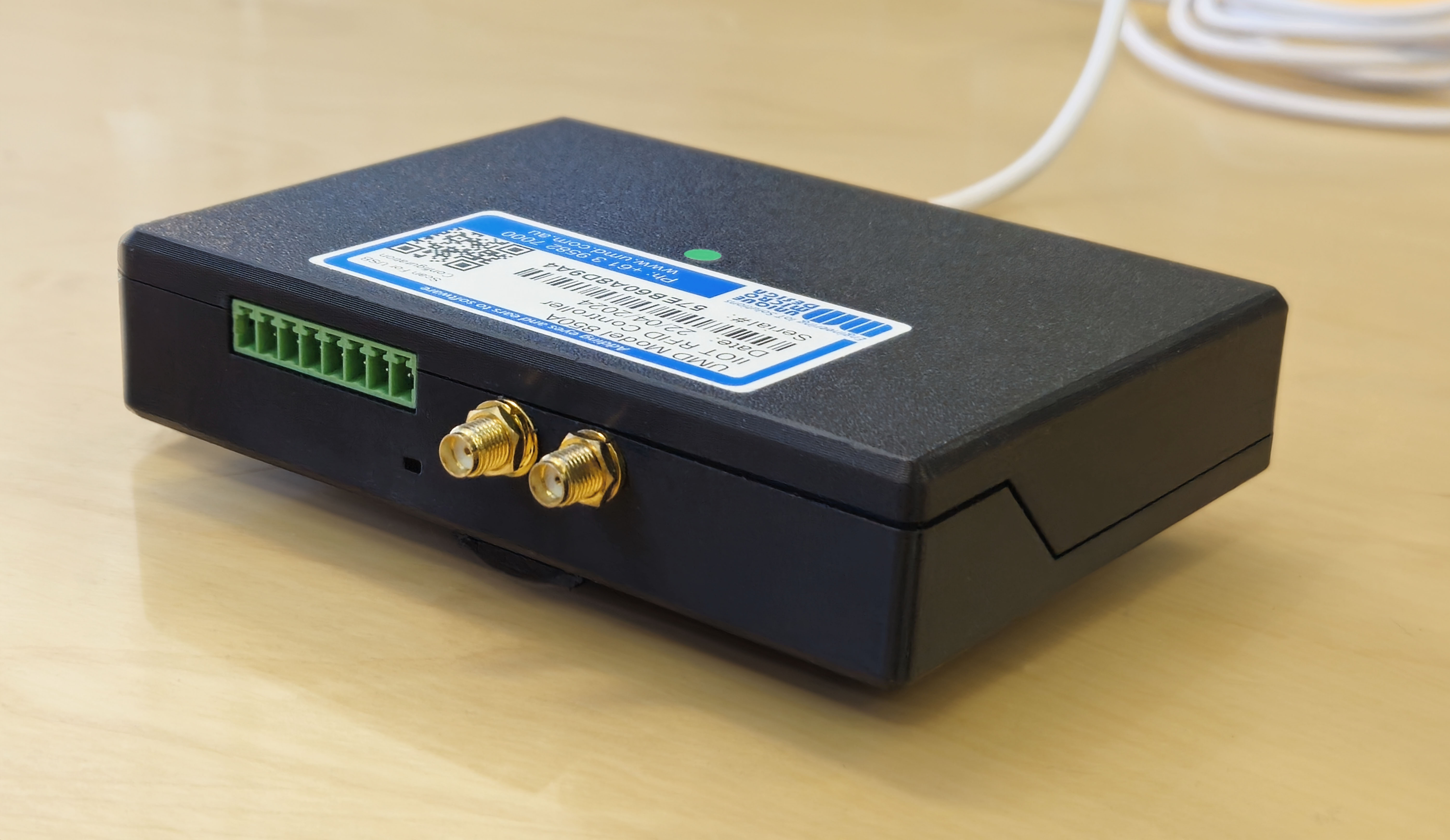

UMD - Model 850 Series
IoT UHF RFID Reader / Controller


The UMD Model 850 Series (M850) is an intelligent IoT UHF RFID Reader with the ability to communicate over USB-C (HID keyboard output, or Virtual COM port output), Ethernet, or Wi-Fi.

It is based on the Zebra RE40 OEM UHF RFID Reader module which comes in two or four port versions. Maximum RFID transmit power is +27dBm (0.5W) and UMD’s MP3090 IoT Controller module providing the intelligence and I/O functionality.

The M850 can be configured using a web browser via its internal Wi-Fi Hotspot, or via the connected Ethernet/ Wi-Fi LAN network.

Applications crafted by UMD can be readily downloaded into the controller. (Remote update via the cloud is coming soon)

  • The M850A can run stand-alone
    • Provides RFID Tag data via the configured communications channel, like a barcode scanner
    • Built in communications to UMD’s Chariot Broker for sophisticated solutions such as UMD RACE and third parties
    • Custom applications
  • It can interface to your applications
    • Using the MQTT protocol
    • Other APIs by request

Features

  • Intelligent 2 port or 4 port UHF RFID Desktop Reader and Controller
  • Web based configured via Wi-Fi Hotspot or Ethernet
  • Firmware applications can be downloaded via growing library of “Firmware Apps”
  • Multi-Channel USB, Wi-Fi or Ethernet host interface
  • Integrates with UMD RFID Advance Controller for Embedded (RACE) Architecture
  • Custom API’s can be developed

Specifications

General
Dimensions
110 (H) x 125 (W) x 37 (D) mm (Standard box with DIN Clip)
Colour
Black (other colours available on request)
Power Input
5V via USB or 8-24VDC via terminal block
Typical current consumption
510mA with Ethernet and WiFi disabled
600mA @ 5V with Ethernet and WiFi enabled
LED Indicators
1 x multicoloured Status LED
GPIO
2 x inputs for closed-contact signals (internally pulled up to 3.3V)
2 x open-drain outputs (max 24V load)
Functionality depends on custom application
Communication Interfaces
Ethernet
RJ45 jack, 10/100 Mbps
Wi-Fi
2.4GHz, IEEE 802.11 b/g/n
Configurable as a Wi-Fi client and/or access point
USB
USB 2.0 Type-C
Configurable as Virtual COM port or HID Keyboard output
RFID
RF Ports
2 or 4 monostatic ports, SMA female
TX Power
0 dBm to +27 dBm
RX Sensitivity
-78 dBm
Operating Frequency
Australia: 915 - 928 MHz
Miscellaneous
Configuration Tool
Web UI accessible via WiFi Hotspot/Ethernet/WiFi



UMD Model M850 Configuration Guide

M850A









UMD Model 850 Version A Base Model, UHF RFID

 RFID Ports

2



2 Port

4



4 Port

 Housing Options

00



Standard Box with DIN Clips

01



Desktop with Flanges



Options

00



Standard



Firmware Options

-F00

No Firmware

-FR0

Send Event to UMD RACE via Chariot Broker

-F01

MQTT API



M850A












Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] UMD Model 850 Series - UMD IoT UHF RFID Reader / Controller
M850A20000-F00 M850A-F00 UMD Industrial RFID IoT Controller 2 port, DIN Mount $264.00 U
M850A20000-FR0 M850A-FR0 M850A Industrial UHF RFID 2 Port Reader and IoT Controller with RACE Firmware $22,803.00 U
M850A20000-F01 M850A-F01 M850A Industrial UHF RFID 2 Port Reader and IoT Controller with F01 Firmware $23,078.00 U
[B] USB Power Supply Option
PS5RS1000W-U Power Supply, Regulated Switching, 5V DC 1A, Wall Mount with USB Connector $18.70 A
2-6398-020-3 CA6398-2 USB A to USB C Cable, Black, 2.0m, USB 2.0 $6.60 A
