UMD Q●Dot
QR Code Asset Labels


Unique Micro Design (UMD) Q●Dot™ are tough and small 10 mm square
high resolution adhesive barcoded asset labels
which use the QR Code symbology.

As they are printed in high resolution, they can be read by standard 2D barcode readers.

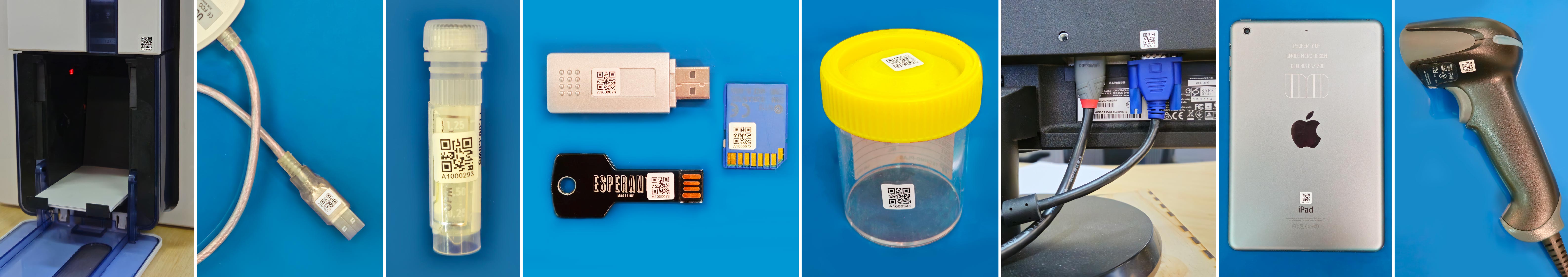

Their small size makes them ideal for tagging small assets or making the asset label inconspicuous.

UMD Q●Dot™ are available in pre-printed sheets of 252 Q●Dots per sheet, or can be customised.

FeaturesBenefits
QR Code SymbologyHolds much more information than 1D barcodes of the same area
2D ScanningCan read barcode in any direction
Error CorrectingDamaged or marked barcodes can still be read
High resolution printingCan read with standard density 2D barcode readers
Custom full color printing and encodingMatch your existing labelling standard
Small Size Can apply to all but the smallest of assets
Laminated Sealing film which protects printed surface and provides good UV resistance
ToughLong life
Low costTag everything!
Supplied in sheets of 252 Q●Dots per sheet, in A4 clear sheet protectorsFor easy storage and distribution
Stock LinesPre-Printed Q●Dots are available in single sheets.
Numbers within a series are guaranteed to be unique.



Specifications
Size10 x 10 mm (with rounded corners)
Print Resolution812 dpi (31.97 dots per mm)
ColourFull Colour
Human Readable Text2pt Helvetica (standard)
Stock Type AHigh Performance permanant rubber based. Moisture Resistant. (Fassion PP60WH)
Stock Type B2 mil gloss white polyester film, topcoated. Solvent based permanent acrylic adhesive (Ritrama 3-1307)
LaminationFassion Polypropylene Over Laminate Film / SRP / BG40 WH



Ordering Details
P/N: 9-9400-001-7NameUMD Q●Dot Asset Label – UMD Series
EncodingUMD xxxxx
(where xxxxx sequential number)
Eg. “UMD 00001”
VisualSame as encoding
ColourBlack printing on white background
StockTyoe A: Gloss White Pearlized Film
AdhesiveHigh Performance permanent rubber-based.
Moisture resistant. (Fasson® PP60WH)
P/N: 9-9400-002-4NameUMD Q●Dot Asset Label – EPC Series
EncodingEPC GS1 GIAI (globally unique)
340F7A42720007xxxxxxxxxx
(where xxxxxxxxxx hexadecimal sequential no.)
Eg.”340F7A4272000700000000F1”
Visual10 hexadecimal digit sequential number
ColourBlack printing on white background
StockType A: Gloss White Pearlized Film
AdhesiveHigh Performance permanent rubber-based.
Moisture resistant. (Fasson® PP60WH)

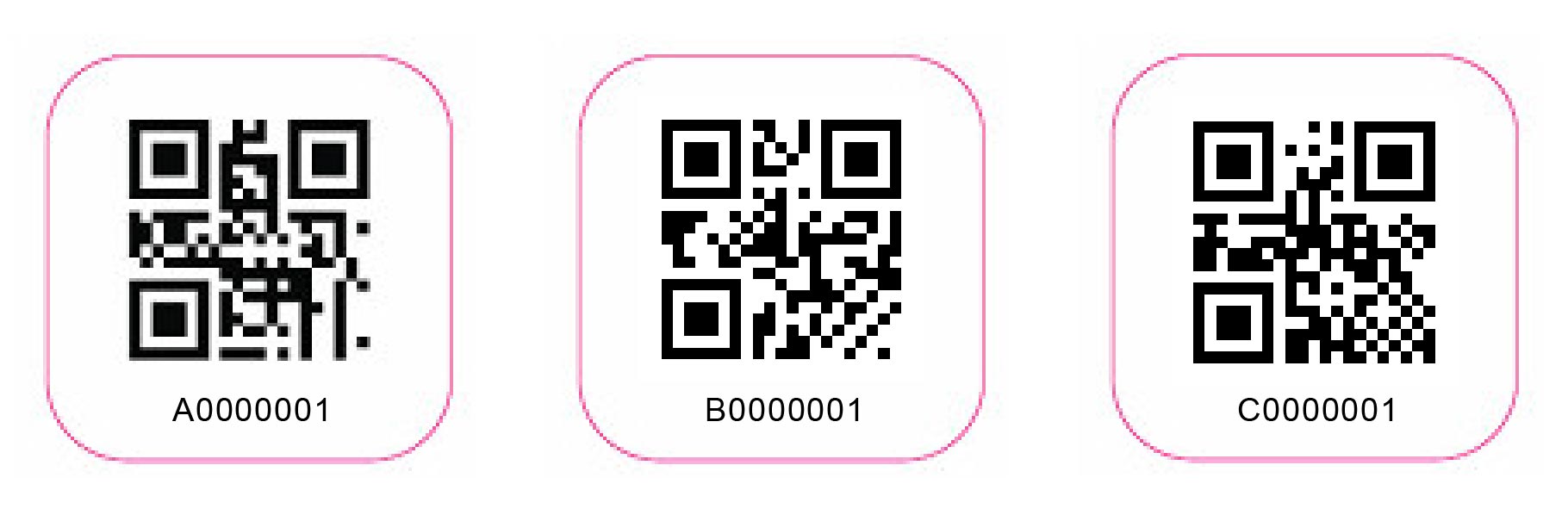

P/N: 9-9400-005-5NameUMD Q●Dot Asset Label – A Series
EncodingAxxxxx(where xxxxx sequential number)
Eg. “A00001”
VisualSame as Encoding
ColourBlack printing on white background
StockType B: Gloss White Polyester Film, topcoated
AdhesiveSolvent based permanent acrylic adhesive (Ritrama 3-1307)
P/N: 9-9400-006-2NameUMD Q●Dot Asset Label – B Series
EncodingBxxxxx(where xxxxx sequential number)
Eg. “B00001”
VisualSame as Encoding
ColourBlack printing on white background
StockType b: Gloss White Polyester Film, topcoated
AdhesiveSolvent based permanent acrylic adhesive (Ritrama 3-1307)
P/N: 9-9400-007-8NameUMD Q●Dot Asset Label – C Series
EncodingCxxxxx(where xxxxx sequential number)
Eg. “C00001”
VisualSame as Encoding
ColourBlack printing on white background
StockType B: Gloss White Polyester Film, topcoated
AdhesiveSolvent based permanent acrylic adhesive (Ritrama 3-1307)
P/N: 9-9400-008-6NameUMD Q●Dot Asset Label – D Series
EncodingDxxxxx(where xxxxx sequential number)
Eg. “D00001”
VisualSame as Encoding
ColourWhite printing on black background
StockType B: Gloss White Polyester Film, topcoated
AdhesiveSolvent based permanent acrylic adhesive (Ritrama 3-1307)
P/N: 9-9400-xxx-xNameUMD Q●Dot Asset Label – Customer Specific
 EncodingCustomer Specific
VisualCustomer Specific
ColourCustomer Specific
StockCustomer Specific
AdhesiveCustomer Specific
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] UMD Q*Dots, UMD Standard Stock Lines
9-9400-001-7 QDots-001 UMD Q*Dots UMD Generic - UMD xxxxx (per sheet of 252) $55.00 1
9-9400-005-5 QDots-005 UMD Q*Dots UMD Generic - A xxxxxxxx (per sheet of 252) $55.00 1
9-9400-006-2 QDots-006 UMD Q*Dots UMD Generic - B xxxxxxxx (per sheet of 252) $55.00 1
9-9400-007-9 QDots-007 UMD Q*Dots UMD Generic - C xxxxxxxx (per sheet of 252) $55.00 1
9-9400-008-6 QDots-008 UMD Q*Dots UMD Generic - D xxxxxxxx White on Black (per sheet of 252) $55.00 1
[B] UMD Q*Dots, EPC Standard Stock Line
9-9400-002-4 QDots-002 UMD Q*Dots UMD Generic, RFID-EPC with UMD Domain = 007H (per sheet of 252) $55.00 1
[C] UMD Q Dots, Customer Specific
Custom Configured Q Dots available on request, please contact sales for details. MOQ for Q*Dots is 20 sheets.
