UMD - RFID Tamper Evident Jewellery Tag

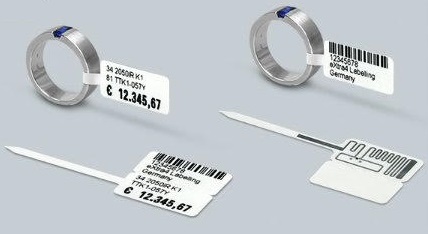

The UMD UHF Tamper Evident Jewellery Series is specially designed for tagging jewellery including rings, earrings and necklaces.

Create an anti-theft system with tamper evidence to detect damages and enhance the security of precious jewellery. Overcome traditional inventory management with RFID for quick and efficient quantity counts. UMD caters to the various sizes of jewellery and offers 25002Pcs/roll at 8 rolls/ctn.

Features

  • 25x13 mm with 43x3 mm tail
  • UHF ISO 18000-6C NXP UCODE 9
  • 96 bit EPC
  • Tamper evident to detect damaged tags

Specifications

Physical Characteristics
Dimensions25mm x 13 mm
43mm x 3mm (tail)
OverlayPET
ColourWhite
Environmental Characteristics
Operating Temperature-20C to +50
Storage ConditionsVacuum bag sealed
RFID Characteristics
Memory96 bit EPC, 96 bit TID
Chip TypeNXP UCODE 9
Operating Frequency860-960MHz


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] UHF RFID Jewellery Tamper Evident Label
IOT-UHF-JL-101-U9 UHF RFID Jewellery Label, 25x13 mm with 43x3mm Tail $0.99 A
[B] Related - UHF Jewellery Label (standard - not tamper evident)
10036110 ZEBRA JEWELLERY LABEL 76X14 1500/R 76MM RFID $518.10 A
