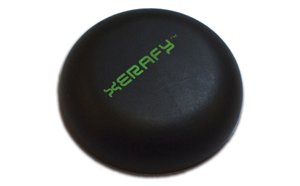

XERAFY Xylinder
UHF RFID Tags


Xerafy’s ruggedized UHF RFID Xylinder is specifically designed to fit the neck of gas cylinders and containers and perform well under extreme RFID use, providing reliable identification of assets in critical situations. The Xylinder provides unrivaled performance-to-size ratio, is easy to attach, and is ATEX certified for safe use in hazardous areas.

Features

  • High performance RFID on-metal tags
  • Passive UHF EPC Class 1 Gen 2
  • IP68 rating
  • On Metal Mounting

Specifications

Physical Characteristics
DimensionsØ 34 mm x 8.9 mm
Weight7.4g
Case MaterialEngineering Grade Nylon Polymer
MountingHigh performance adhesive
Environmental Characteristics
Operating Temperature-40 to 85°C
Application Temperature-40 to 150°C
IP ClassificationIP68
Compression Strength80 kPa
Chip Characteristics
IC TypeAlien Higgs 3
Operating Frequency Range902 MHz - 928 MHz
Memory Configuration96-EPC bits; 512-bit user memory
Read Range On MetalUpto 4.5 m
Read Range Off MetalLimited
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] XERAFY Xylinder UHF RFID On Metal Tag
9-9891-710-6 Xylinder Xylinder RFID Tag, 34 x 8.9mm. High performance adhesive $10.56 C
