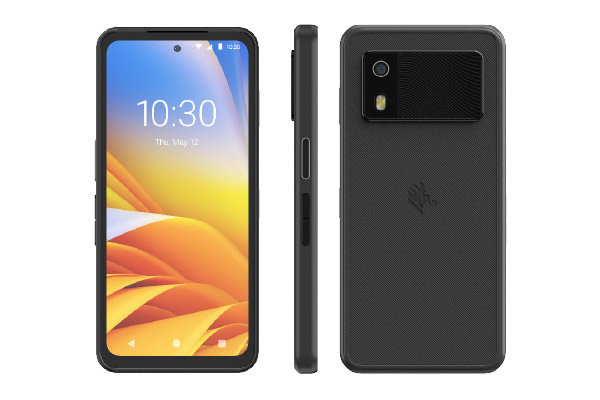

Zebra - EM45 RFID
Enterprise Mobile
 |
The Zebra EM45 RFID Enterprise Mobile is built to endure the demands of modern enterprise operations. Combining RFID reading, a high-performance camera and mobile convenience, this ergonomic, all-in-one streamlined solution simplifies tasks and boosts on-the-go operations. Integrated RFID provides precise reads to check and find inventory, complete tasks, and access critical information quickly from a single device (no separate RFID reader required). Superior data capture with RFID provides precise reads to find items, track inventory & parcels and more. Wireless connectivity supports Wi-Fi 6E, 5G and private 5G for fast, reliable communication and data transfer. It's fast-charging, long-lasting battery lasts up to 25 hours, ensuring tasks can always be performed. A high performance camera and stunning display with 6.7 inch FHD and up to 120Hz is amongst the highest refresh rates for a superior user experience. The EM45 RFID is built with Zebra DNA, the software powering Zebras devices that empowers the workforce with continuous visibility across operations, providing optimal uptime and ensuring fast adaptability to changing workflows. The ecosystem of continuous software patches and productivity tools helps businesses maximize their investment in Zebra hardware. The Zebra EM45 RFID enterprise mobile meets the expectations of modern staff and managers with the ergonomics of consumer phones, making it a valuable asset for retail and businesses looking to streamline processes and improve efficiency. Features
|
|---|
Specifications
| Physical Characteristics | |
|---|---|
| Length | 170.65mm |
| Width | 80.54mm |
| Depth | 10.7mm |
| Weight | 250g (With Embedded Battery) |
| Environmental Characteristics | |
| Operating Temperature | 0șC to +50șC |
| Storage Temperature | -40șC to +70șC |
| Relative Humidity | 5% to 95% (non-condensing) |
| Drop Spec | Multiple 1.2m over concrete at room temperature, exceeding MIL-STD 810H |
| Tumble Spec | 300 0.5m tumbles |
| Sealing | IP65 and IP68 |
| Electrostatic Discharge (ESD) | ±15kV Air Discharge, ±8kV Direct Discharge, ±8kV Indirect Discharge |
| Software | |
| Operating System | Upgradable to Android 16 |
| Hardware | |
| Microprocessor | Qualcomm 5430 Octa-core 2.2GHz |
| RAM | 8GB |
| Flash ROM | 128GB |
| Expansion Slot | User accessible MicroSD supports upto 2TB |
| Power | |
| Battery Type | Rechargeable Lithium Ion Battery with PowerPrecision for real-time battery metrics |
| Battery Capacity | 5000 mAh |
| Display | |
| Size | 6.7" (170mm), Full High Definition (1080 x 2400) |
| Touchscreen | Multi Mode Capacitive Input with bare or gloved fingertip input Water Droplet Rejection, oleophobic coating |
| Communications/Interfaces | |
| Integrated RFID | Short range integrated UHF RFID 4 ft (1.2m) range, reads 20 tags per second; EU 865-868 MHz and US 902-928 MHz |
| Barcode Scanner | SE4770 Standard Range Imager, or SE55 Advanced Range Imager Camera based scanning |
| Camera | Rear 50MP Autofocus and 8MP Front Video recording resolution: UHD 4K @30FPS |
| WWAN | 5G, 4G radio Dual SIM/Dual Standby, VoLTE, Gigabit LTE-A; Supports private 5G/LTE |
| WLAN | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc; 2X2 MU-MIMO Wi-Fi 6E (802.11ax) certified; IPv4, IPv6, Dual Band Simultaneous |
| GPS | GPS; GLONASS; Galileo; BeiDou; QZSS; Dual-Band GNSS - Concurrent + L5/E5a/BDSB2a; A-GPS; Supports XTRA |
| Bluetooth | Class 1, Bluetooth v5.3, Bluetooth Low Energy (BLE), Classic Bluetooth |
| NFC | ISO 14443 Type A and B; F; FeliCa and ISO 15693 cards; Card Emulation via Host; Contactless Payment Support, ECP 1.0 and ECP 2.0 poling support, Apple VAS certified |
| Interface Ports | USB Type-C, USB 3.1; OTG/host charging mode |
| Sensors | Light sensor, proximity sensor, motion sensor, magnetometer, pressure sensor |
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] Zebra EM45 RFID Enterprise Mobile - Wi-Fi and 5G | ||||
| EM45B2-3T106B0-RW | ||||
| [B] Charging Options | ||||
| CBL-EM45-USBC3A-01 | ||||
| PWR-WUA5V45W1AU | ||||
| Workstation Connect Cradle | ||||
| CRD-EM4X-1SNWS-01 | ||||
| PWR-BGA12V50W0WW | PS12RS416 | ZEBRA PSU 12V/4.16A 50W | $79.20 | C2 |
| CBL-DC-388A2-01 | ZEBRA DC LINE CORD FOR SINGLE LEVEL VI PSU | $22.00 | C2 | |
| 50-16000-217R | ZEBRA CABLE POWER AC 10A 250V 1.9M | $16.50 | C2 | |
| [C] Accessories | ||||
| SG-EM45EXO1-01 | ||||
| SG-EM45-SCRNPT1-1 | ||||
| SG-STYLUS-TCX-MTL-03 | ZEBRA STYLUS PASSIVE MICRO-KNIT HYBR FIBER TIP 3PK | $39.60 | C2 | |
| 58-40000-007R | ZEBRA SHOULDER STRAP UNIVERSAL | $25.30 | C2 | |
| 11-08062-02R | ZEBRA BELT UNIVERSAL RUGGED BELT FOR HIP HOLSTER | $57.20 | C3 | |
| Headsets | ||||
| HS3100-OTH | ZEBRA AUDIO HEADSET RUGGED HS3100 OTH BT | $820.60 | C2 | |
| HS3100-OTH-SB | ZEBRA AUDIO HEADSET RUGGED HS3100 OTH BT KIT | $820.60 | C2 | |
| HS3100-SBOOM-01 | ZEBRA HS3100 SHORTENED BOOM MODULE | $484.00 | C2 | |
| HDST-USBC-PTT1-01 | ZEBRA HEADSET W/ROTATING EAR PIECE USB-C | $154.00 | C2 | |
| [D] Extended Maintenance | ||||
| Z1AE-EM45XX-3300 | ||||
| Z1AS-EM45XX-3303 | ||||
