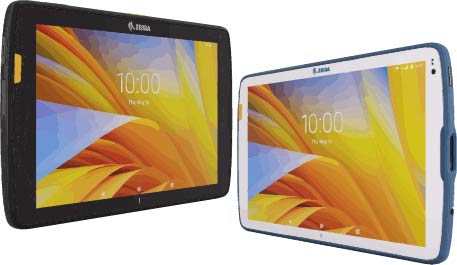

Zebra - ET40/45 Series
Enterprise Tablets
 |
The Zebra ET40/45 Series Enterprise Tablets are built with durability for businesses right out of the box at the right price. Designed from the inside out to support retail and hospitality as well as transportation and logistics. Choose from an easy to carry 8 inch screen or a larger 10 inch display for easy viewing. The ET4x series goes where you go and is built for long working durations without compromise. Get the fastest connectivity with Wi-Fi 6 and 5G. The ET40 Wi-Fi is ideal for indoors in retail and hospitality while the ET45 Wi-Fi and cellular is ideal for delivery drivers. Zebra's scan engine range offers standard range scanning for dependable decoding or an advanced range scanner to capture items at a distance or up close. Take high resolution photos with the two inbuilt cameras and unleash a series of enterprise tools and security with Zebra Mobility DNA. Use the ET40/45 inside and outside: in the heat, sub-zero temperature, drop it on concrete floors or hose it off, and it will still work. Power options keep your tablets up and running over multiple shifts, while Zebra's PowerPrecision batteries provide the intelligence to better manage your battery pool. Get constant power with an optional hot-swappable secondary battery. Create a mobile POS for anywhere payment with innovative payment solutions. Download the Zebra ET4x Series product brochure Here. Features
|
|---|
Specifications
| ET40 (Wi-Fi only) | ET45 (Wi-Fi and 5G) | |||
|---|---|---|---|---|
| 8" Screen | 10" Screen | 8" Screen | 10" Screen | |
| Physical Characteristics | ||||
| Dimensions | 213.9mm (l), 134.8mm (h), 11.4mm (d) | 257.9mm (l), 162.9mm (w), 11.4mm (d) | 213.9mm (l), 134.8mm (h), 11.4mm (d) | 257.9mm (l), 162.9mm (w), 11.4mm (d) |
| Weight | 485g | 690g | 485g | 690g |
| Environmental Characteristics | ||||
| Operating Temperature | -20ēC to +50ēC | |||
| Storage Temperature | -40ēC to +70ēC | |||
| Relative Humidity | 5% to 95% (non-condensing) | |||
| Drop Spec | 1.2m to concrete (1.55m to concrete with optional rugged frame per MIL-STD-810H) | |||
| Electrostatic Discharge | +/- 15 kV air discharge; +/- 8 kV contact; +/- 8 kV indirect | |||
| Sealing | IP65 | |||
| Vibration | 4 gs PK Sine (5 Hz to 2 kHz); 6 g RMS Random (20 Hz to 2 kHz); 60 minute duration per axis, 3 axis | |||
| Software / Hardware | ||||
| Operating System | Android 11. Upgradeable to Android 14 | |||
| CPU | Qualcomm Snapdragon SM6375 Octa-Core: 2.2GHz and 1.8GHz | |||
| Memory | Standard: 4GB SDRAM/ 64GB UFS Flash Premium: 8GB RAM / 128GB | |||
| Expansion Slot | Integrated connector to easily add accessories | |||
| SIM Slot | 1 Nano SIM | |||
| Power | ||||
| Battery Type | Rechargeable 3.87V Li-Ion Polymer User Replaceable | |||
| Battery capacity: | 6100 mAh 3.87V | 7600 mAh 3.87V | 6100 mAh 3.87V | 7600 mAh 3.87V |
| Optional | Hot swappable 3400 mAh 7.6 V (25.84Wh) secondary battery | |||
| Display | ||||
| Size | 8.0" (203mm) | 10.0" (257mm) | 8.0" (203mm) | 10.0" (257mm) |
| Resolution | WXGA, 1280x800 | WUXGA, 1920x1200 | WXGA, 1280x800 | WUXGA, 1920x1200 |
| Screen Brightness | 500 nits | |||
| Protection | Corning Gorilla Glass | |||
| TouchScreen | Capacitive multi-touch | |||
| Communications/Interfaces | ||||
| Keypad/Buttons | On-screen Keypad, Volume up/down, Power, Barcode Reader, Programmable buttons | |||
| Barcode Scanner Options | Integrated SE4100 Imager, SE4710 Imager, SE55 Advanced Range Imager | |||
| Camera | Rear 13MP Autofocus and 5MP Front | |||
| WWAN | - | 5G, Global LT, 3G, 2G | ||
| WLAN | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax 2x2 MU-MIMO; Wi-Fi certified; IPv4, IPv6 (Wi-Fi 6) | |||
| GPS | - | GNSS supports GPS, Galileo, Beidou, Glonass. Dual Band (L1+L5) | ||
| Bluetooth | v5.1 / Bluetooth Low Energy | |||
| NFC | Reader/Writer: ISO 14443 Type A and B, ECP, MIFARE, FeliCaŽ, ISO 15693, NFC Forum Tag Types 1 to 5; Host Card Emulation Support for Apple Pay VAS8/Google SmartTap8, NFC Forum Certified | |||
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] Zebra ET4x Series | ||||
| Wifi Only | ||||
| ET40AB-001D1B0-A6 | #N/A | #N/A | C1 | |
| Healthcare Version | ||||
| ET40AB-0H1C1B0-A6 | ZEBRA TABLET ET40-HC 10IN 4/64 2D WIFI6 AD/GMS | $1,595.00 | C1 | |
| ET45CB-1H1C1B0-A6 | ZEBRA TABLET ET45-HC 10IN 4/64 2D 5G AD/GMS | $1,881.00 | C1 | |
| [B] Charging Options | ||||
| USB Wall Charger | ||||
| PWR-WUA5V12W0AU | PS5RS2500W | ZEBRA PSU AC 2.5A 5V TC51/TC56/TC57 WITH AU PLUG | $37.40 | C2 |
| CBL-TC5X-USBC2A-01 | ZEBRA CABLE DATA/POWER USB-C TO USB-A 1M | $16.50 | C2 | |
| Connected Cradle | ||||
| CRD-ET4X-1SNWS-01 | ZEBRA DOCK WORKSTATION HDMI/ETH/USB ET4X | $858.00 | C2 | |
| PWR-BGA12V50W0WW | PS12RS416 | ZEBRA PSU 12V/4.16A 50W | $74.80 | C2 |
| CBL-DC-388A2-01 | ZEBRA DC LINE CORD FOR SINGLE LEVEL VI PSU | $22.00 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| [C] Replacement Battery: | ||||
| BTRY-ET4X-8IN1-01 | ZEBRA BATTERY 8IN ET40/ET45 | $198.00 | C3 | |
| BTRY-ET4X-10IN1-01 | ZEBRA BATTERY 10IN ET40/ET45 | $231.00 | C3 | |
| [D] Accessories | ||||
| Replacement T-adapters for tablets used in multi slot cradles: | ||||
| ADP-ET4X-8T4S1-04 | ZEBRA T-ADAPTER 4/PK FOR 8IN ET40/ET45 4-BAY DOCK | $88.00 | C2 | |
| ADP-ET4X-10T4S1-04 | ZEBRA T-ADAPTER FOR 10IN ET40/ET45/ET40-HC/ET45-HC | $88.00 | C2 | |
| Expansion Pack Spare battery | ||||
| BTRY-ET5X-PRPK2-01 | ZEBRA BATTERY EXPANSION 2ND FOR 8IN & 10IN ET5X | $349.80 | C3 | |
| VESA Adapter for 10 Tablet: | ||||
| ZBK-ET4X-10VESA-01 | ZEBRA EXPANSION BACK ET40/ET45 10IN VESA/DC INPUT | $495.00 | C2 | |
| PWR-BGA12V50W0WW | PS12RS416 | ZEBRA PSU 12V/4.16A 50W | $74.80 | C2 |
| CBL-DC-388A2-01 | ZEBRA DC LINE CORD FOR SINGLE LEVEL VI PSU | $22.00 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| Handstrap | ||||
| SG-ET4X-HCHNDSTR1-01 | ZEBRA HANDSTRAP FOR 10IN ET40-HC/ET45-HC | $198.00 | C2 | |
| Universal Shoulder Strap: | ||||
| 58-40000-007R | ZEBRA SHOULDER STRAP UNIVERSAL | $24.20 | C2 | |
| Workstation Dock | ||||
| CRD-ET4X-1SNWS-01 | ZEBRA DOCK WORKSTATION HDMI/ETH/USB ET4X | $858.00 | C2 | |
| Presentation Stand: | ||||
| STND-ET4X-10POS1-01 | ZEBRA PRESENTATION STAND ET40/ET45 10IN | $715.00 | C2 | |
| Battery Door for Presentation Stand | ||||
| MISC-ET4X-BTDPS-01 | ZEBRA BATTERY COVER POS STAND LANDSCAPE ET4X 10IN | $121.00 | C3 | |
| Desktop Mounting Plate for Presentation Stand: | ||||
| BRKT-ET4X-DSKPS-01 | ZEBRA MOUNTING BRACKET FOR ET4X PRESENTATION STAND | $33.00 | C2 | |
| Plastic Stylus Set | ||||
| SG-TC7X-STYLUS-03 | ZEBRA STYLUS PLUS TETHER MC33/TC5X/TC7X/TC8X 3PK | $69.30 | C2 | |
| Fiber Tipped Passive Stylus Set: | ||||
| SG-STYLUS-TCX-MTL-03 | ZEBRA STYLUS PASSIVE MICRO-KNIT HYBR FIBER TIP 3PK | $37.40 | C2 | |
| Coiled Tether Set | ||||
| KT-TC7X-TETHR1-03 | ZEBRA TETHER COILED BLK 3/PK FOR TC7X | $46.20 | C2 | |
| USB-C wired headsets for Workforce Connect: | ||||
| HDST-USBC-PTT1-01 | ZEBRA HEADSET W/ROTATING EAR PIECE USB-C | $154.00 | C2 | |
| HS2100 wired rugged headsets: | ||||
| HS2100-OTH | ZEBRA AUDIO HEADSET RUGGED HS2100 WIRED | $315.70 | C2 | |
| HS2100-OTH-SB | ZEBRA AUDIO HEADSET RUGGED HS2100 WIRED + HSX100 | $315.70 | C2 | |
| CBL-HS2100-3MS1-01 | ZEBRA CABLE 3.5MM JACK STANDARD ASSY 1.1M HS2100 | $44.00 | C2 | |
| ADP-USBC-35MM1-01 | ZEBRA CABLE USB-C TO 3.5MM ADPT W/PTT BUTT SUPPORT | $151.80 | C2 | |
| HS3100 wireless rugged headsets | ||||
| HS3100-OTH | ZEBRA AUDIO HEADSET RUGGED HS3100 OTH BT | $770.00 | C2 | |
| HS3100-OTH-SB | ZEBRA AUDIO HEADSET RUGGED HS3100 OTH BT KIT | $770.00 | C2 | |
| HS3100-SBOOM-01 | ZEBRA HS3100 SHORTENED BOOM MODULE | $451.00 | C2 | |
| [E] Support Contracts | ||||
| Standard | ||||
| Z1AE-ET4XXX-3C00 | ZEBRA ONECARE ESSENTIAL ET4XXX 3YR COMP | $313.50 | V | |
| Z1AE-ET4XXX-3C03 | ZEBRA ONECARE ESSENTIAL ET4XXX 3YR COMP+COMM+DASH | $429.00 | V | |
| Z1AE-ET4XXX-5C00 | ZEBRA ONECARE ESSENTIAL ET4XXX 5YR COMP | $511.50 | V | |
| Z1AE-ET4XXX-5C03 | ZEBRA ONECARE ESSENTIAL ET4XXX 5YR COMP+COMM+DASH | $704.00 | V | |
| Including Dock and Battery | ||||
| Z1AE-ET4XXX-3103 | ZEBRA ONECARE SELECT ET4XXX 3YR COMP+COMM+BATT | $677.60 | V | |
| Z1AS-ET4XXX-3C03 | ZEBRA ONECARE SELECT ET4XXX 3YR COMP+COMM+DASH | $391.60 | V | |
| Z1AE-ET4XXX-5103 | ZEBRA ONECARE SELECT ET4XXX 5YR COMP+COMM+BATT | $953.70 | V | |
