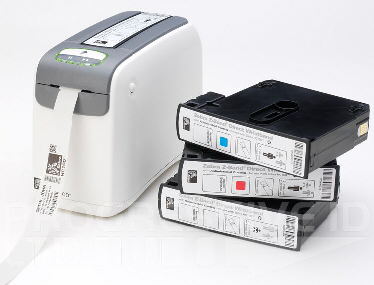

Zebra - HC100
Wristband Thermal Printer


The new Zebra HC100 Wristband Printer combines a small footprint, with easy-load media cartridges, for simplicity of deployment and ease of use. Combined with Zebra's anti-microbial Z-Band Direct Cartridges, the HC100 printer is ideal for patient identification and tracking. Alternatively, standard media cartridges (available soon) provide a simple, high-speed, real-time solution, for use in leisure and hospitality events where intermittent identification is required over a period of hours upto a full day.

  • High-quality wristband thermal text and barcode printing
  • Felxible Connectivity with USB, Ethernet and Wifi options available
  • Fast print speed of 50 mm (2.0 inches) per second
  • Small footprint
  • Simple to load Smart-Cartridges in 3 different wristband lengths, multiple colour stripes, in either adhesive or clip fastening
  • 12 Months Return to Base Warranty

Specifications

Physical Characteristics
Dimensions127 (w) x 242 (d) x 178 (h)mm
Weight1.4 Kg
Print Engine Characteristics
Print methodThermal Line
Print Resolution12 dots per mm/300dpi
Print LengthMaximum: 558mm
Minimum: 76mm
Print Widths19mm, 25.4mm, 30.2mm
Print Speed51mm/sec
Environmental Characteristics
Operating Temperature5C to 40C
Storage Temperature-40C to 60C
Operating Humidity20% to 85% Non-Condensing
Storage Humidity5% to 85% Non-Condensing
Interfaces
Standard OptionUSB
Upgrade OptionEthernet or Wifi
Media Characteristics
Wristband OptionsCurrent: Antimicrobal Polypropylene
Future: Standard Polypropylene and Card
Colour OptionsZ-Band Direct Adhesive:White, Red, Blue, Yellow, Green, Orange, Pink
Clips:White, Red, Blue, Yellow, Green, Pink
(Colours are 4 stripes, 65mm long, at one end of the wristband)
Wristband Sizes Adult(11"), Child(7"), Infant(6")
Printing Characteristics
FontsStandard Zebra Bitmapped Fonts, User defined Font Support
BarcodesLinear: Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, RSS (reduced space symbology), Standard 2-of-5, UPC-A, UPC-A and UPC-E with EAN 2 or 5 digit extensions, UPC-E
2-dimensional: Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code
GraphicsDownload Bitmap Support
Firmware/Software
Printer LanguageStandard: ZPL II, Including XML support
Optional: ZBI 2.0
Available Software OptionsZebraDesigner, ZebraDesigner Pro, ZebraNet Bridge Enterprises, ZebraNet Utilities 7.0, ZebraDesigner Driver, Zevra Universal Driver, ZBI-Developer
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Zebra HC100 Wristband Printer
HC100-3006-1000 HC100-U HC100 printer 300 DPI direct thermal print method ZPL II programming language USB & Serial connectivity Power Cord withAustralia Plug standard flash memory $968.00 G
HC100-3006-0100 HC100-E ZEBRA HC100 WST BAND 10/100 PRINTER $1,177.00 G
HC100-3006-1100 HC100-U+E HC100 printer 300 DPI direct thermal print method ZPL II programming language USB Serial & 10/100 Ethernet connectivityPower Cord with Australia Plug standard flash memory $1,177.00 G
HC100-3006-1200 HC100-U+W HC100 printer 300 DPI direct thermal print method ZPL II programming language USB Serial wireless LAN (802.11 b/g) connectivity Power Cord with Australia Plug standard flash memory $1,320.00 G
[B] Accessories
61344M
[C] Z-Band Wristbands (cartridges)
Ultrasoft (Healthcare) Ultra-softf polyproypylene and vinyl with adhesive tamper evident tab
10015355K
10015357K
10019249K
Custom (Healthcare)
10018960K
Direct (Direct thermal, polypropylene with teamper evident tab tab)
10006995K Z-BAND Direct ADULT 25X279MM 200 bands/cartr WHITE Box of 6 $528.00 G
10006996K
10006995-1K Z-BAND Direct ADULT 25X279MM 200 bands/cartr RED Box of 6 $561.00 G
10006999K Z-BAND Direct PEDIATRIC 25X178MM 300 bands/cartr WHITE Box of 6 $693.00 G
10006995-2K
10006998K Z-BAND Direct INFANT 25X152MM 350 bands/cartr WHITE Box of 6 $792.00 G
QuickClip Kit (Polypropylen with secure clip closure)
10007000K
Fun Wristband (for events and amusement parks)
10012713-3K Z-BAND FUN WRISTBAND 25X254MM 350 band/cartr BLUE Box of 6 $407.00 G
10012713-4K Z-BAND FUN WRISTBAND 25X254MM 350 band/cartr GREEN Box of 6 $407.00 G
10012713-6K Z-BAND FUN WRISTBAND 25X254MM 350 band/cartr ORANGE Box of 6 $407.00 G
10012713-2K Z-BAND FUN WRISTBAND 25X254MM 350 band/cartr YELLOW Box of 6 $407.00 G
