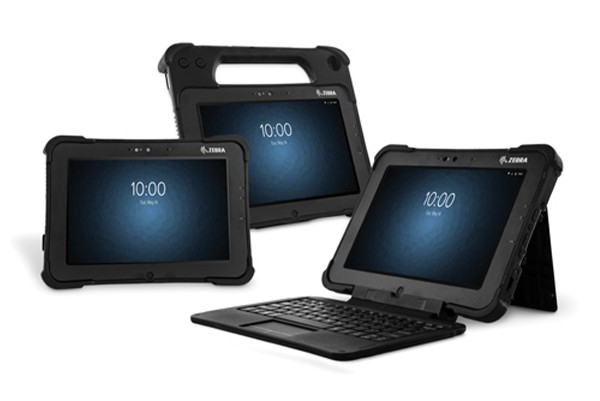

Zebra L10 Andriod Tablets
Rugged Tablet PC


Zebra's L10 Series rugged Android go-anywhere tablets Put the power of mobile data in the hands of workers in your most demanding environments. With a choice of three models meet the needs of workers out in the field in energy, mining, utilities, telecommunications,construction, public safety and government — as well as in warehouses and manufacturing plants.

The rugged go-anywhere design is at home indoors, outside, in freezers, sub-zero cold and extreme heat, in forklifts, trucks and other vehicles — and even in bright sunshine. An advanced platform delivers blazing fast performance on all your apps, a battery that provides full shift or around-the-clock power with a single charge, plus the fastest wireless connections — WiFi, Bluetooth, cellular, GPS and NFC. Manage Android updates with pushbutton simplicity. And with Mobility DNA, you get valuable only-from-Zebra applications that take device performance, ease-of-use, manageability and security to the next level.

Features

  • Meet the needs of practically any job with the choice of three models
  • A built-to-last rugged design with Magnesium Frame
  • 10.1 in. display with all the right features
  • Customise with mix-and-match accessories
  • Add ports and additional data capture options
  • Choose the right power for the job with unmatched battery power — and battery management
  • Enterprise Data Capture And Voice Over-IP (VOIP)
  • Mobility DNA
  • Extended Maintenance options
Specifications
ModelXSLATEXPADXBOOK
Physical Characteristics
Length 281mm 281mm 281mm
Width 195mm 256mm 209mm
Depth 22mm 22mm 64mm
Weight 1.2 Kg 1.4 Kg 2.0 Kg
Environmental Characteristics
Operating Temperature -20 to 60°C
Storage Temperature -30 to 70°C
Thermal Shock -30 to 70°C within 5 minutes, non-operating
Operating Humidity 3 to 95% (Non-Condensing)
IP RatingIP65
Shock40G impact, operating
Drop SpecificationMIL-STD-810G: 6'/1.8 m drop to plywood over concrete 4'/1.2m drop to concrete
VibrationMIL-STD-810G: Minimum integrity non-operating, composite wheel operating
Hazardous EnvironmentsC1D2 (Class 1 Division 2) for hazardous locations(Requires a Hazardous Locations certified model)
AltitudeOperating: 50,000 ft./15,240m
System Specifications
Operating System Android 8.1 Oreo with Zebra’s Restricted Mode for control over GMS and other services
Processor Qualcomm SnapdragonTM 660 Octa-core 2.2 GHz
System Memory
(Factory Fitted)
4 GB or 8 GB
Graphics Qualcomm Adreno 512 GPU or 620 GPU
Storage Options 64 GB or 128 GB
Audio Multi-directional array microphone- 2 microphones (2 front facing array mic)
Speakers1 rear facing speaker1 front facing speaker1 rear facing speaker
Display Specifications
Size 10.1"
Resolution 1920 x 1200
Electrical Specifications
Battery Lithium Ion, 36W/hr Standard, or 98W/hr Extended, Hot Swapable
Operating Time Upto 9.8 Hours Standard Battery, Upto 26 Hours Extended Battery
Regharge Time 2.75 Hours - Standard Battery, 3.25 Hours - Extended Battery (With Tablet Off)
External Power 12-20V Input. Supplied 19V/DC Universal AC Adaptor
Wireless Specifications
Standard WiFi: IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/w, IPv4, IPv6, 2x2 MU-MIMO
Bluetooth: Bluetooth V5.0,BLE
WWAN, Dual SIM slots,
LTE FDD: Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 19, 20, 25, 26, 28, 66
LTE TDD: Bands 38, 39, 40, 41
UMTS/HSPA/HSPA+: Bands 1, 2, 4, 5, 8
Autonomous and Concurrent GPS, GLONASS, Gallileo, BeiDou, and A-GPS. Supports IZat XTRA
Optional -
User Interface
Keyboard Optional Add-on Compact QWERTY, Backlit, IP65, 1m Drop to Concrete
LED's System status, battery status, camera active
Additional Interface Options
Standard Docking connector
NFC -ISO 14443 Type A and B FeliCa and ISO 15693 cards; P2P mode and Card Emulation via Host and UICC
2x USB 3.0 ports
1x USB Type-C port (USB 2.0, USB 3.0, Display Port)
3.5 mm audio output
RJ-45 ethernet port
Dual Nano SIM (4FF)
Micro-SDXC
Options Optional 1D/2D barcode reader (XPAD only)
True RS232 serial or HDMI-In or Optional UHF RFID reader (AEI)
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Zebra L10 Series Android Tablets
Contact UMD for pricing and configuration options: UMD Sales
[B] Dock with Spare Battery Charger
CRD-L10-IND03 ZEBRA DOCK DESK INDUSTRIAL ANZ L10 $767.80 C2
ZT-300159 ZEBRA DOCK DESK OFFICE L10 ANZ $856.90 C2
[C] Communications Cables
CBA-UF6-C12ZAR ZEBRA CABLE DATA USB BC1.2 COILED 2.8M -30C $132.00 C2
CBA-UF8-C12ZAR ZEBRA CABLE DATA USB -30 BC1.2 3.6M COILED $132.00 C2
P1031365-055 ZEBRA CABLE USB-PC W/STRAIN RELIEF QLN SERIES $33.00 C3
[D] Vehicle Cradles and Holders
ZT-300142 ZEBRA DOCK VEHICLE DIM/CLA L10 $873.40 C2
ZT-300144 ZEBRA DOCK VEHICLE RF PASS THROUGH/DIM/CLA L10 $1,529.00 C2
[E] Vehicle Mounting Hardware
ZT-300140 ZEBRA DOCK VEHICLE XDIM MODULE G3 CIG/ADAPTER L10 $437.80 C2
CRD-ET8X-M-KBBK1-01 ZEBRA ET8X DOCK KEYBOARD SUPPORT BRACKET $396.00 C2
[F] Accessories
ZT-400022 ZEBRA SCREEN PROTECTOR L10 3PK $112.20 C2
ZT-440036 ZEBRA STYLUS LONG ACTIVE DIGITIZER L10/B10/XC6 $121.00 C2
ZT-440043 ZEBRA STYLUS LONG EPEN L10 $112.20 C2
ZT-440037 ZEBRA STYLUS SHORT ACTIVE DIGITIZ W/TETHER B10/L10 $88.00 C2
ZT-440042 ZEBRA STYLUS ACTIVE TIP REPLACEMENT L10 $13.20 C2
SG-ET5X-SLTETR-01 ZEBRA STYLUS COIL TETHER ET5X/ET6X/ET8X $16.50 C2
[G] Support Contracts
Z1AE-L10AXX-3C00 Z1AE-L10AXX-3C00 ZEBRA ONECARE ESSENTIAL L10AXX 3YR COMP $422.40 V
