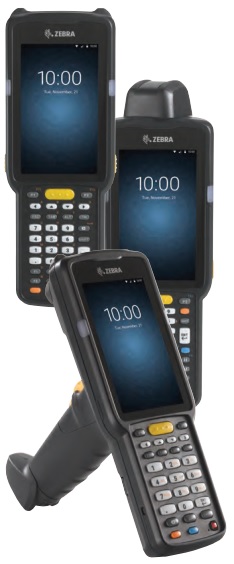

Zebra - MC3300
Hand Held RF Terminal


The Zebra MC3300 makes it easy to migrate to the next generation in mobility business platforms — Android. This is the same operating system that took the consumer world by storm and is ready for business, providing a well proven mobility platform and guaranteed security support you can count on. This next generation of the highly successful MC3000 series offers everything you need to run your business today and tomorrow. You can run current terminal emulation (TE) applications right out of the box — or reformat to create intuitive screens that utilize touch to simplify the user experience. A unique toolbox of powerful applications — known as Zebra’s Mobility DNA — not only makes deployment and application development easier than ever, it also allows you to add new capabilities to your MC3300 mobile computers to streamline everyday processes and improve worker productivity. When it comes to features and options, this best-in-class device delivers, offering a light weight ergonomic design, large touchscreen, a variety of keypad options, unmatched scanning performance and much more. And with its multiple form factors, the MC3300 gives you unmatched versatility and flexibility from the warehouse to the retail store. The MC3300 — the easy way to power your business with advanced Android mobile computing.

The MC3300 offers the perfect transition product combination. Touchscreen and keypad.
Whether your application requires touch or physical keypad input, we’ve got you covered. Your application can utilise the entire display, while the physical keypad allows you to give your workers the exact same experience they have today. In addition, the touchscreen paves the way to migrate to intuitive touch-based interfaces. And you can choose the keypad that most simplifies data entry — alphanumeric, numeric and functional numeric.

Features

  • Highly configurable, offering terminal emulation, browser or custom client applications
  • Zebra’s Mobility DNA Tools
  • Rugged multi-touch capacitive touch panel
  • Choice of 29 key Numeric, 38 key Function Numeric or 47 key Alpha keypad
  • Choice of 1D Laser, Standard or Extended Range 2D Imager and straight or angled scanning
  • Advanced ergonomic design for comfort
  • 12 Month Warranty with Zebra OneCare extension options

Specifications

Physical Characteristics
Dimensions
202.2 (l) x 74.7 (w) x 34.5 (d) mm With Straight Read and 45º Barcode Reader
223.4 (l) x 74.7 (w) x 34.5 (d) mm With Rotating Barcode Reader Head
2 (l)2.20 x 74.7 (w) x 163.9 (d) mm With Pistol Grip Handle
Weight
375g, With Straight Barcode Reader
377g, With Rotating Barcode Reader Head
505g With Pistol Grip Handle
382g With 45º Barcode Reader
Shock Protection
1.5m drop to concrete across temperature range
1,000 (1.0 m) tumbles
Environmental Characteristics
Operating Temperature
-20º to 50ºC
Storage Temperature
-40º to 70ºC
Humidity
5 to 95% (Non-Condensing)
Hardware
Processor
Qualcomm 8056 1.8 GHz hexa-core 64 bit with power optimization
Display/Touch Panel
102mm (4 in) WVGA colour LCD with backlight, With Gorilla Glass capacitive touch panel
Keypad Options
Numeric (29 Key), Function-Numeric (38 Key), Alpha-Numeric (47 Key)
Barcode Scanning Options
MC3300 Brick/Straight Shooter (0° Scan): SE965 1D, SE4750SR 2D, SE4850 ERI
MC3300 Turret/Rotating Head: SE965 1D Laser
MC3300 Gun/Pistol: SE965 1D, SE4750SR 2D, SE4850 ERI
MC3300 (45° Scan): SE4750SR 2D
Rear Camera Option
13MP with Flash (Premium + models only)
(Not available on the MC3300 Gun/Pistol)
Memory
2GB/16GB Standard Models
4GB/16GB Premium Models
4GB/32GB Premium Plus Models
WiFi Radio
802.11 a/b/g/n/ac/d/h/i/k/r/w
(2.4GHz: 144Mbps, 5GHz: 867Mbps)
Radio Security
WEP, WPA/WPA2 (Personal and Enterprise)
Bluetooth
V4.1, V2.1 + EDR w/ Bluetooth Low Energy (BLE)
NFC
Available on Premium and Premium + models
Power
Battery Type
High Capacity 3.7V LiIon
Battery Capacity
2700mAh Standard Battery or 5200mAh High Capacity Battery



MC3300 Hand Held Computer Configuration Guide

MC330



-















MC3300 Series Warehouse RF Terminals

 NFC

M



-

K



NFC

      -

-



 Form Factor

R



Rotating Scanner Head

S



Straight Scanning Head - 0º or 45º

G



Pistol Grip Handle

 Scan Engine/Camera

E



SE4850 Extended Range Imager

G



SE4850 Extended Range + Camera (N/A for Pistol Grip configurations)

I



SE4750 Standard Range Imager

B



SE4750 SR + Camera (N/A for Pistol Grip configurations)

L



SE965 1D Standard Range Laser

C



SE965 1D Laser + Camera (N/A for Pistol Grip configurations)

N



45 degree SE4750 (45 degree scan angle N/A for Pistol Grip configurations)

P



45 degree SE4750 + Camera (45 degree scan angle N/A for Pistol Grip configurations)

A



SE4770 + Camera (N/A for Pistol Grip configurations)

J



SE4770 Standard Range Imager

K



45 degree SE4770 (45 degree scan angle N/A for Pistol Grip configurations)

M



45 degree SE4770 + Camera (45 degree scan angle N/A for Pistol Grip configurations)

 Keypad

2



29 Key

3



38 Key

4



47 Key

 Battery

S



Standard Battery, 2740mAh

H



High Capacity Battery, 5200mAh

 Operating System

A



Andriod 8.x AOSP with MX

G



Andriod 8.x GMS with MX



Memory

2



Standard, 2GB RAM/16GB Flash - No Sensors

3



Premium, 4GB RAM/16GB Flash + Sensors

4



Premium Plus, 4GB RAM/32GB Flash + Sensors



Location

RW

Rest of the World (Not US, China, India or Tunisia)



MC330



-

















Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] MC3300 Terminals
Pistol Grip Terminal - includes All Touch TE
MC330K-GL2HA3RW ZEBRA PDT MC330K-G PREM 29KY 1D-SR 4GB/16GB AD $2,706.00 A
MC330K-GI4HG4RW ZEBRA PDT MC330K-G PREM+ 47KY 2DSR 4GB/32GB AD/GMS $3,080.00 A
MC330K-GI3HG3RW ZEBRA PDT MC330K-G PREM 38KY 2D-SR 4GB/16GB AD/GMS $2,915.00 A
Straight Scanning Head
MC330K-SL2HG3RW ZEBRA PDT MC330K-S PREM 29KY 1D 4/16 NFC GMS $2,508.00 A
MC330K-SE3HG3RW ZEBRA PDT MC330K-S PREM 38KY 2DER 4/16 NFC GMS $3,509.00 A
MC330K-SE4HG3RW ZEBRA PDT MC330K-S PREM 47KY 2D-ER 4/16 NFC GMS $3,509.00 A
Rotating Scanning Head
MC330K-RC4HG4RW ZEBRA PDT MC330K-R PREM+ 47KY 1D 4/32 NFC CAM GMS $2,739.00 A
MC330K-RC3HG4RW ZEBRA PDT MC330K-R PREM+ 38KY 1D 4/32 NFC CAM GMS $2,739.00 A
There are many other configurations available. Contact UMD Sales for a specific build.
[B] Spare Battery
BTRY-MC33-27MA-01 ZEBRA BATTERY STANDARD MC33 2740MAH 1PK $110.00 A
BTRY-MC33-52MA-01 ZEBRA BATTERY EXTENDED MC33 5200MAH 1PK $143.00 A
[C] Dock Options
Single Dock (Select All)
CRD-MC33-2SUCHG-01 ZEBRA DOCK CHARGE/COMMS 1-BAY MC33 $308.00 A
PWR-BGA12V50W0WW ZEBRA PSU 12V/4.16A 50W $77.00 A
CBL-DC-388A1-01 ZEBRA CABLE POWER DC PWR-BGA12V50W 1-BAY/BATT $22.00 A
2-5199-020-0 CA199-2 IEC Power C13 to AU 3 pin Plug - 2m $9.26 U1
Multi Dock - Charge Only (Select All)
CRD-MC33-5SCHG-01 ZEBRA MULTIDOCK CHARGE ONLY 5-BAY MC33 $671.00 A
PWR-BGA12V108W0WW ZEBRA PSU AC 12V/9A/108W $165.00 A
CBL-DC-381A1-01 ZEBRA CABLE POWER DC PWR-BGA12V1080WW MULTIDOCK $44.00 A
2-5199-020-0 CA199-2 IEC Power C13 to AU 3 pin Plug - 2m $9.26 U1
[D] Charge Cable
CBL-MC33-USBCHG-01 ZEBRA CABLE CHARGE/COMMS MC33 USB CLIENT $132.00 A
Holsters
SG-MC3021212-01R ZEBRA HOLSTER BELT/SHOULDER FABRIC MC31/MC32/MC33 $110.00 A
SG-MC33-RDHLST-01 ZEBRA HOLSTER BELT RIGID MC33 BRICK $33.00 A
11-69293-01R
11-08062-02R ZEBRA BELT FOR HOLSTER MC91/MC92/MC33 $55.00 A
58-40000-007R ZEBRA SHOULDER STRAP UNIVERSAL $22.00 A
[E] Replacement Parts
SG-MC33-HDSTPB-01 ZEBRA HANDSTRAP MC33 FOR BRICK TERMINAL $33.00 A
SG-TC7X-STYLUS-03 ZEBRA STYLUS PLUS TETHER MC33/TC5X/TC7X/TC8X 3PK $77.00 A
[F] Accessories
SG-MC33-RBTG-01 ZEBRA RUBBER BOOT MC330M-G/MC330K-G $22.00 A
SG-MC33-RBTRT-01 ZEBRA RUBBER BOOT MC33 TURRET CUP 1PK $11.00 A
SG-MC33-RBTRD-01 ZEBRA RUBBER BOOT MC33 ROTATING HEAD $22.00 A
SG-MC33-RBTS-01 ZEBRA RUBBER BOOT MC33 BRICK $22.00 A
MISC-MC33-SCRN-01 ZEBRA SCREEN PROTECTOR TEMPERED GLASS MC33 PK/5 $77.00 A
MNT-MC33-FLCHKT-01 ZEBRA MOUNT KIT UN-POWERED FORKLIFT MC33 $407.00 A
PWR-WUA5V12W0AU ZEBRA PSU AC 2.5A 5V TC51/56/57 AU $44.00 A
[G] Extended Warranty Service Contracts
Z1AE-MC33XX-3C03 ZEBRA ONECARE ESSENTIAL MC33XX 3YR COMP+COMM+DASH $495.00
Z1AE-MC33XX-5C03 ZEBRA ONECARE ESSENTIAL MC33XX 5YR COMP+COMM+DASH $869.00 A
[H] Notes
(1) Contact UMD for additional pricing sales@umd.com.au
(2) An extensive range of off-the-shelf peripherals are also available.
