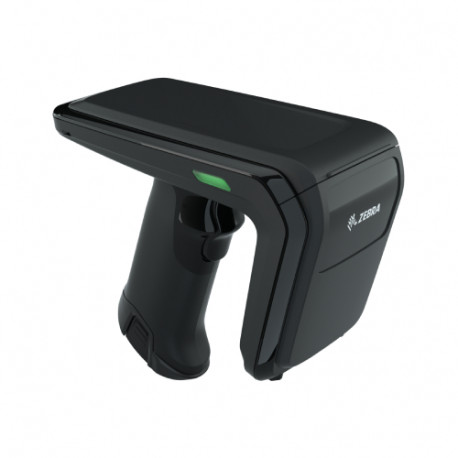

Zebra - RFD40
Handheld UHF RFID Reader
 |
The Zebra RFD40 UHF RFID Sled brings industry-leading RFID technology to select Zebra and compatible third-party mobile devices, tablets and smart phones with enterprise-class UHF RFID, whenever and wherever you need it. This versatile accessory makes these mobile devices state-of-the-art handheld RFID readers that are at home in the storefront, business operations or out in the field. With its light weight, solid design and well-balanced, gun-style grip, the RFD40 is suited to the most read-intensive applications. With the new eConnex technology that allows for snap-and-go pairing, you can future-proof your workplace with a sled that supports the latest Zebra mobile computers, including WWAN-enabled variants. What’s more, the sled has the ability to instantly connect to supported Zebra eConnex-enabled devices including the TC21/26, EC50/55 and future models. Zebra devices have the ability to withstand everyday environments. The RFD40 Sled has a 5-foot drop to concrete specification and a 500 cycle 0.5 meter/1.6 foot tumble specification to replicate real world knocks and bumps. It has an IP54 sealing for dust and water protection, and an extended operating temperature range of -10°C to 50°C. With these durable specifications you can feel confident that the RFD40 Sled will meet the demanding needs of your workplace. Features
|
|---|
Specifications
| Physical Characteristics | |
|---|---|
| Height | 151mm |
| Width | 84 mm |
| Length | 167mm |
| Weight | 541g |
| Environmental Specifications | |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 5 to 85% Non-Condensing |
| Drop Spec. | 1.8m drop to concrete |
| Tumble Spec. | 1000 0.5m tumbles |
| Power | |
| Battery Type | LiIon |
| Battery Capacity | 7000mAh |
| Recharge Time | Upto 5 Hours |
| Reader | |
| Frequency | UHF |
| Antenna | Omnidirectional |
| Interfaces | |
| eConnex | Direct connection using available adaptor (Available adaptors: TC21/26, EC50/55 |
| USB | USB Cup Cable USB-C to Communication Dock |
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] Zebra RFD40 RFID Reader Sled | ||||
| Standard Sled | ||||
| RFD4030-G00B700-WR | ZEBRA RFID SLED RFD40 STD 900MHZ BLK | $1,969.00 | C3 | |
| Premium (2D Scanner,WiFi (for remote management only), NFC) | ||||
| RFD4031-G00B700-WR | ZEBRA RFID SLED RFD40 PREM 900MHZ WIFI BLK | $2,508.00 | C3 | |
| RFD4031-G10B700-WR | ZEBRA RFID SLED RFD40 PREM+ 900MHZ-SR 2D/WIFI BLK | $2,827.00 | C3 | |
| IMPORTANT: The Handheld selected must have the 8-Pin connector to be used with the RFD40 | ||||
| [B] Charge/ Communication Docks | ||||
| Single Bay, Charge only (Requires Power Supply, DC Line Cord and AUS Power Cable) | ||||
| CRD1S0T-RFD40-TC2X-CHG-1R | ZEBRA DOCK DESK CHARGE 1-BAY RFD40 | $242.00 | C2 | |
| CRD1S0T-RFD40-EC5X-CHG-1R | ZEBRA DOCK CHARGE 1-BAY RFD40 | $242.00 | C2 | |
| CRD1S0T-RFD49-UNIV-CHG-1R | ZEBRA DOCK DESK CHARGE 1-BAY RFD40/UNIV | $242.00 | C2 | |
| Single Bay, Communication (Requires Power Supply, DC Line Cord and AUS Power Cable) | ||||
| CRD1S0T-RFD40-TC2X-COM-1R | ZEBRA DOCK DESK CHARGE ETH 1-BAY RFD40 | $434.50 | C2 | |
| CRD1S0T-RFD40-EC5X-COM-1R | ZEBRA DOCK DESK CHARGE 1-BAY RFD40/EC50/EC55 | $434.50 | C2 | |
| CRD1S0T-RFD49-UNIV-COM-1R | ZEBRA DOCK DESK CHARGE/ETH 1-BAY RFD40/UNIV | $434.50 | C2 | |
| PWR-BGA12V50W0WW | PS12RS416 | ZEBRA PSU 12V/4.16A 50W | $79.20 | C2 |
| CBL-DC-388A1-01 | ZEBRA DC LINE CORD FOR SINGLE SLOT CRADLE | $15.40 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| Multi-Bay, Charge only (Requires Power Supply, DC Line Cord and AUS Power Cable) | ||||
| CRD1S0T-RFD40-TC2X-COM-1R | ZEBRA DOCK DESK CHARGE ETH 1-BAY RFD40 | $434.50 | C2 | |
| CRD1S0T-RFD40-EC5X-COM-1R | ZEBRA DOCK DESK CHARGE 1-BAY RFD40/EC50/EC55 | $434.50 | C2 | |
| CRD1S0T-RFD49-UNIV-COM-1R | ZEBRA DOCK DESK CHARGE/ETH 1-BAY RFD40/UNIV | $434.50 | C2 | |
| Multi-Bay, Communication (Requires Power Supply, DC Line Cord and AUS Power Cable) | ||||
| CRD3S4T-RFD40-TC2X-COM-1R | ZEBRA MULTIDOCK CHARGE/ETH 3-BAY RFD40 TC21/26 | $1,859.00 | C2 | |
| CRD3S4T-RFD40-EC5X-COM-1R | ||||
| CRD3S4T-RFD49-UNIV-COM-1R | ZEBRA MULTIDOCK CHARGE/ETH 3-BAY RFD40/RFD90/UNIV | $1,859.00 | C2 | |
| PWR-BGA12V108W0WW | PS12RS9000 | ZEBRA PSU AC 12V/9A 108W | $170.50 | C2 |
| CBL-DC-382A1-01 | ZEBRA CABLE POWER DC FOR MULTIDOCK CRADLES | $42.90 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| 4-Slot Battery Charger | ||||
| SAC-TC8X-4SCHG-01 | ZEBRA MULTIDOCK BATTERY 4-BAY TC8X | $452.10 | C2 | |
| [C] Adapter (device dependent) | ||||
| Standard | ||||
| ADP-RFD40-TC2X-1E | ZEBRA RFD40 SLED ADAPTOR FOR TC21/26 | $108.90 | C3 | |
| ADP-RFD40-EC5X-1E | ZEBRA RFD40 SLED ADAPTOR FOR EC50/EC55 | $108.90 | C3 | |
| ADP-RFD40-TC5X-0R | ZEBRA RFD40 SLED ADAPTOR FOR TC5X | $44.00 | C3 | |
| ADP-RFD40-TC5X-1E | ZEBRA RFD40 SLED ADAPTOR FOR TC52AX/TC57X | $110.00 | C3 | |
| ADP-RFD40-TC5X-2E | ZEBRA RFD40 SLED ADAPTOR FOR TC53/TC58 | $110.00 | C3 | |
| [D] Accessories | ||||
| CBL-RFD49-USB1-01 | ZEBRA SNAP-ON POWER/COMMS USB RFDXX | $121.00 | C2 | |
| PWR-WUA5V12W0AU | PS5RS2500W | ZEBRA PSU AC 2.5A 5V TC51/TC56/TC57 WITH AU PLUG | $39.60 | C2 |
| [E] Replacement Parts | ||||
| BTRY-RFD49-70MA1-01 | ZEBRA BATTERY STANDARD 7000MAH RFD40/RFD90 | $220.00 | C3 | |
| ADP-RFD40-BLNK-1R | ||||
| SG-RFD40-ADPSCRWS-01 | ||||
| [F] After Sales Support | ||||
| Z1AE-RFD40X-3C00 | ZEBRA ONECARE ESSENTIAL RFD40X 3YR COMP | $374.00 | V | |
| Z1AE-RFD40X-3C03 | ZEBRA ONECARE ESSENTIAL RFD40X 3YR COMP+COMM+DASH | $495.00 | V | |
