Zebra - RS-6100
Wearable Bluetooth Industrial Barcode Reader
 |

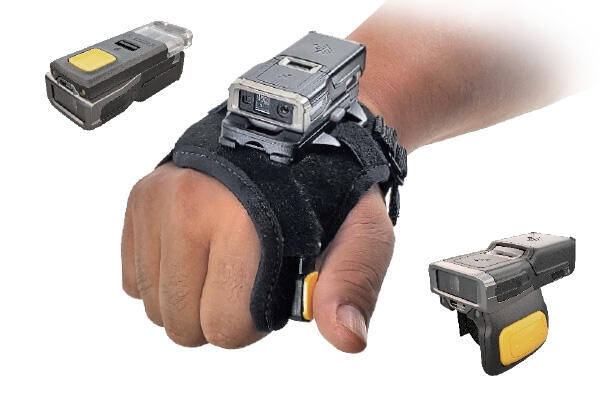

The Zebra RS6100 is a small and practically weightless wearable scanner less than half the size and weight of its predecessor, the RS6000. With an advanced multi-focus scan engine the RS6100 captures 1D and 2D barcodes at close range and on the top shelf of a rack 40 ft./12.2 m away, regardless of condition — scratched, dirty, poorly printed, under shrinkwrap and more. With five interchangeable wearing options, there’s a style that will maximize comfort for every user. Use it anywhere — from warehouse aisles, freezers and coolers to the seat of a fork truck and out on the dock in rain, snow, blazing summer heat or sub zero winter cold. The RS6100 is always in service with its removable battery — no downtime needed for charging, just swap in a fully charged battery. Choose cordless freedom with two battery options or corded battery-free operation. And since the RS6100 and RS5100 share common trigger assemblies, batteries and mounts, upgrading from earlier readers is easy and cost-effective. Features
|
|---|
Specifications
| Mechanical | |||
|---|---|---|---|
| Dimensions | 66.6 (l) x 32.7 (w) x 21 (d) mm | ||
| Weight | 17g(Standard Battery) 76g (Extended Battery) | ||
| Environmental | |||
| Operating Temp. | 0°C to 50°C(Standard Battery) -30°C to 50°C (Extended Battery) | ||
| Storage Temp. | -40°C to 60°C (-40°C to 70°C without battery) | ||
| Humidity | 5 to 95% (non-condensing) | ||
| Drop Survival | Multiple 1.8m drops onto concrete over the operating range | ||
| Tumble Survival | 1000 0.5m tumbles | ||
| Rain and Dust Resistance: | IP-65 rated | ||
| Vibration | Sine 5-2000Hz, 4g peak, 1 hour per axis; Random 20-2000Hz, 6g RMS or 0.04g2/Hz, 1 hour per axis | ||
| Electrostatic Discharge (ESD) | ±15kVdc air discharge; ±8kVdc contact discharge | Optical | |
| Scan Engine | SE55 1D/2D Advanced Range Scan Engine with IntelliFocusTM technology | ||
| Optical Resolution | 2688 x 1520 pixels | ||
| Field of View | 37° Horizontal, 21.4° Vertical | ||
| Aiming Element | 515nm Laser | ||
| Illumination Element | 1 warm white LED | ||
| Ambient Light | Maz 107,639 lux (direct sunlight) | ||
| Roll | 360° | ||
| Pitch | ±60° | ||
| Skew | ±60° | ||
| Symbologies Decoded | All common 1D, Stacked, 2D and Postal codes, OCR-A, OCR-B | ||
| Communications | |||
| Pairing | NFC Tap to Pair | ||
| Bluetooth | Class 1 and 2, Bluetooth v5.2 with Bluetooth Low Energy (BLE) | ||
| Bluetooth Profiles | Serial Port Profile (SPP), Human Interface Device Profile (HID), Service Discovery Application Profile (SDAP) | ||
| Electrical | |||
| Battery | Lithium-ion or corded adaptors for connection to select Zebra Terminals | ||
| Battery Capacity | 480mAh (Standard) for Full Shift 735mAh (Extended) for Extended Shift | ||
| Battery Support | Power Precision+ Tools | ||
| User Interface | |||
| Activation | Manual Ambidextrous Trigger | ||
| Indicators | 4 Programmable RGB LED's at rear for easy visibility Beeper of up to 85 dBA | ||
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] Zebra RS6100 Wearable Barcode Reader | ||||
| RS61B0-KBBHZWR | ZEBRA SCANNER RS6100 2D-SE55 BT BACK-OF-HAND STD | $1,870.00 | C2 | |
| RS61B0-KBDSZWR | ZEBRA SCANNER RS6100 2D-SE55 BT DBL/TRIGGER STD | $1,793.00 | C2 | |
| RS61B0-KBENZWR | ZEBRA SCANNER RS6100 2D-SE55 BT ENT-HAND-MNT STD | $1,870.00 | C2 | |
| RS61B0-KBSSZWR | ZEBRA SCANNER RS6100 2D-SE55 BT SGL/TRIGGER STD | $1,793.00 | C2 | |
| RS61B0-KEDSXWR | ZEBRA SCANNER RS6100 2D-SE55 BT DBL/TRIGGE EXT -30 | $1,826.00 | C2 | |
| RS61B0-KEENXWR | ZEBRA SCANNER RS6100 2D-SE55 BT ENT-HAND-M EXT -30 | $1,903.00 | C2 | |
| RS61B0-KESSXWR | ZEBRA SCANNER RS6100 2D-SE55 BT SGL/TRIGGE EXT -30 | $1,826.00 | C2 | |
| RS61B0-KNNTZWR | ZEBRA SCANNER RS6100 2D-SE55 BT NO/BATT NO/TRIGGER | $1,518.00 | C2 | |
| [B] Chargers | ||||
| 4-Slot Charge Kit | ||||
| CRD-RS61-4SCHG-01 | ZEBRA MULTIDOCK CHARGE ONLY 4-BAY RS6100 | $539.00 | C2 | |
| PWR-BGA12V50W0WW | PS12RS416 | ZEBRA PSU 12V/4.16A 50W | $74.80 | C2 |
| CBL-DC-388A1-01 | ZEBRA DC LINE CORD FOR SINGLE SLOT CRADLE | $15.40 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| 20-Slot Charge Kit: | ||||
| CRD-RS61-20SCHG-01 | ZEBRA MULTIDOCK CHARGE ONLY 20-BAY RS6100 | $2,310.00 | C2 | |
| PWR-BGA12V108W0WW) | ||||
| CBL-DC-381A1-01 | ZEBRA CABLE POWER DC PWR-BGA12V1080WW MULTIDOCK | $39.60 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| 8-Slot Battery Charger Kit: | ||||
| SAC-RS51-8SCHG-01 | ZEBRA MULTIDOCK CHARGE/BATTERY 8-BAY RS5100 | $870.10 | C2 | |
| PWR-BGA12V50W0WW | PS12RS416 | ZEBRA PSU 12V/4.16A 50W | $74.80 | C2 |
| CBL-DC-388A1-01 | ZEBRA DC LINE CORD FOR SINGLE SLOT CRADLE | $15.40 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| 40 Slot Battery Charger Kit: | ||||
| SAC-RS51-40SCHG-01 | ZEBRA MULTIDOCK CHARGE/BATTERY 40-BAY RS5100 | $3,652.00 | C2 | |
| PWR-BGA12V108W0WW | PS12RS9000 | ZEBRA PSU AC 12V/9A 108W | $160.60 | C2 |
| CBL-DC-381A1-01 | ZEBRA CABLE POWER DC PWR-BGA12V1080WW MULTIDOCK | $39.60 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| [C] RS6100 Bluetooth Host Cradle: | ||||
| STB3678-C100F3WW | ||||
| FLB3678-C100F3WW | ZEBRA CRADLE CHARGE/COMMS 3678 IP65 BLK | $591.80 | C3 | |
| CBL-TC5X-USBC2A-01 | ZEBRA CABLE DATA/POWER USB-C TO USB-A 1M | $16.50 | C2 | |
| PWRWUA5V12W0US | ||||
| [D] Accessories and Replacement Parts: | ||||
| SG-RS51-TRGSS-02 | ||||
| SG-RS51-TRGDS-01 | ZEBRA TRIGGER ASSY DOUBLE SIDED RS5100 | $165.00 | C2 | |
| SG-RS51-TRGDV-01 | ZEBRA RS5100 TRIGGER ASSY DBL-SIDED/VIBRATOR | $220.00 | A | |
| SG-RS51-TRGDU-01 | ZEBRA TRIGGER ASSY DOUBLE SIDED USB-C RS5100 | $191.40 | C2 | |
| SG-RS51-CMPD-05 | ZEBRA COMFORT PADS SINGLE TRIGGER 5PK FOR RS5100 | $69.30 | C2 | |
| SG-RS51-STRPN2-10 | ZEBRA NYLON FINGER STRAP SGL SIDED 10PK FOR RS5100 | $77.00 | C2 | |
| SG-RS5X6-BHMT-01 | ZEBRA RS5100/RS6100 BACK OF HAND MOUNT | $220.00 | C2 | |
| SG-RS51-BHSTP-01 | ZEBRA STRAP FOR BACK OF HAND MOUNT RS5100 | $33.00 | C2 | |
| SG-RS51-BHSTLG-01 | ||||
| SG-RS5X6-BHMTX-01 | ZEBRA RS6100 BACK OF HAND MOUNT - LOW TEMP | $253.00 | C2 | |
| SG-RS5X6-BHSTX-01 | ZEBRA HAND STRAP FOR RS6100 | $66.00 | C2 | |
| SG-RS5X6-BHFSS-10 | ZEBRA FINGER STRAP SMALL FOR RS6100 10/PK | $198.00 | C2 | |
| SG-RS5X6-BHFSM-10 | ZEBRA FINGER STRAP MEDIUM FOR RS6100 10/PK | $198.00 | C2 | |
| SG-RS5X6-BHFSX-10 | ZEBRA FINGER STRAP X-LARGE FOR RS6100 10/PK | $198.00 | C2 | |
| SG-RS5X6-HNMT-01 | ZEBRA HAND MOUNT FOR RS5100/RS6100 | $165.00 | C2 | |
| SG-WEAR-HNWPRL-01 | ZEBRA HANDWRAP RIGHT HAND LARGE WS50/RS5100/RS6100 | $77.00 | C2 | |
| SG-WEAR-HNWPRM-01 | ZEBRA HANDWRAP RIGHT HAND MED WS50/RS5100/RS6100 | $77.00 | C2 | |
| SG-WEAR-HNWPRS-01 | ZEBRA HANDWRAP RIGHT HAND SMALL WS50/RS5100/RS6100 | $77.00 | C2 | |
| SG-WEAR-HNWPLL-01 | ZEBRA HANDWRAP LEFT HAND LARGE WS50/RS5100/RS6100 | $77.00 | C2 | |
| SG-WEAR-HNWPLM-01 | ZEBRA HANDWRAP LEFT HAND MEDIUM WS50/RS5100/RS6100 | $77.00 | C2 | |
| SG-WEAR-HNWPLS-01 | ZEBRA HANDWRAP LEFT HAND SMALL WS50/RS5100/RS6100 | $77.00 | C2 | |
| SG-RS5X6-LNYD-01 | ZEBRA RS5100 RS6100 LANYARD TRIGGER ASSEMBLY | $176.00 | C2 | |
| SG-RS51-RLYD1-01 | ZEBRA RS5100 RETRACTOR WITH MAGNETIC RECOIL | $160.60 | C2 | |
| PWR-WUA5V12W0AU | PS5RS2500W | ZEBRA PSU AC 2.5A 5V TC51/TC56/TC57 WITH AU PLUG | $37.40 | C2 |
| BTRY-RS51-4MA-01 | ZEBRA BATTERY STANDARD 480MAH RS5100 | $115.50 | C3 | |
| BTRY-RS51-4MA-10 | ZEBRA BATTERY STANDARD 480MAH RS5100 10PK | $1,111.00 | C3 | |
| BTRY-RS51-7MA-01 | ZEBRA BATTERY EXTENDED 735MAH RS5100 | $156.20 | C3 | |
| BTRY-RS51-7MA-10 | ZEBRA BATTERY EXTENDED 735MAH RS5100 10/PK | $1,507.00 | C3 | |
| CBL-RS5X6-ADPWT-01 | ZEBRA RS5100/RS6100 CORDED ADAPTER FOR WT6X | $253.00 | C2 | |
| CBL-RS5X6-ADPTC-01 | ZEBRA RS5100/RS6100 CORDED ADPT USB-C TC2X/TC5X | $253.00 | C2 | |
| [E] Maintenance: | ||||
| Z1AE-RS6000-3C00 | ZEBRA ONECARE ESSENTIAL RS6000 3YR COMP | $523.60 | V | |
| Z1BE-RS6000-1C00 | ||||
