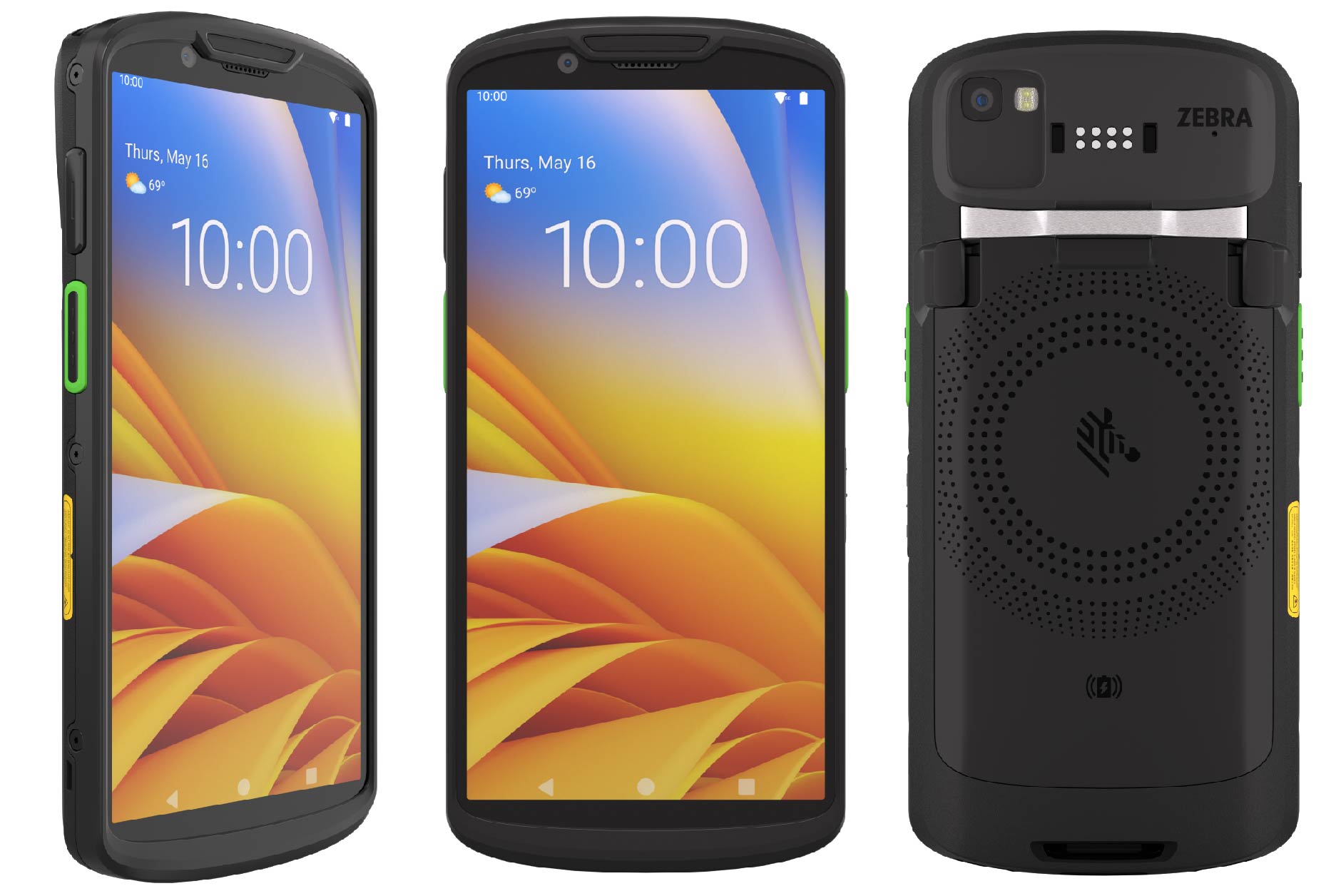

Zebra - TC53e RFID
Mobile Touch Computer
 |
The Zebra TC53e-RFID hand held computer is a member of the new generation of Zebra mobile computers designed to do more, building on the TC53 feature set to meet the ever-evolving mobility needs of todays front line workers. With new hardware redefining performance and new solutions, sensors and technologies to redefine the world of possibilities. Using the latest wireless technology to provide workers with faster and more reliable access to the information they need to get the job done. A class leading 6-inch screen allows workers to see more, do more, and scroll less. Zebra's Mobility DNA tools deliver a built-in advantage, maximising user productivity while minimising IT complexities throughout the entire life cycle. New manufacturing capabilities make the TC53e RFID computer thinner and yet more rugged, while still enabling short range reading of RFID Tags. Features
|
|---|
Specifications
| Physical Characteristics | |
|---|---|
| Length | 164.8mm |
| Width | 77.35mm |
| Depth | 16.75mm |
| Weight | 282g (With Standard Battery) |
| Environmental Characteristics | |
| Operating Temperature | -20șC to +50șC |
| Storage Temperature | -40șC to +70șC |
| Relative Humidity | 5% to 95% (non-condensing) |
| Drop Spec | 1.8m to concrete above -10șC (2.4m to concrete with protective boot) Exceeds MIL-STD-810H |
| Tumble Spec | 1000 500mm tumbles at room temperature (1000 1m tumbles at room temperature with protective boot) |
| Sealing | IP65 or IP68 Options |
| Electrostatic Discharge (ESD) | ±15kV Air Discharge, ±8kV Direct Discharge, ±8kV Indirect Discharge |
| Software | |
| Operating System | Upgradable to Android 17 |
| Hardware | |
| Microprocessor | Qualcomm 4490 Kryo octa-core, 2.4 GHz |
| RAM | 6GB & 8GB Options |
| Flash ROM | 64GB & 128GB Options |
| Expansion Slot | User accessible MicroSD supports upto 2TB |
| Power | |
| Battery Type | Rechargeable Lithium Ion Battery |
| Battery capacity: | Standard: 4480 mAh Extended: 7000 mAh BLE Battery: 4680 mAh QI Compatible Wireless: 4680 mAh Warm Swap battery mode |
| Display | |
| Size | 6.0" (152mm), High Definition (1080 x 2160), outdoor viewable (600 NITS) |
| TouchScreen | Multi Mode Capacitive Input with stylus, finger and gloved fingertip input With Gorilla Glass and Water Droplet Rejection Fingerprint Resistant Anti-Smudge Coating |
| Communications/Interfaces | |
| Keypad | On-screen |
| Barcode Scanner | SE4720 Standard Range Imager |
| Camera | Rear 16MP Autofocus with LED Flash and 8MP Front |
| WLAN | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax; 2X2 MU-MIMO Wi-Fi 6E (802.11ax) certified; IPv4, IPv6, Dual Band Simultaneous |
| Bluetooth | Class 1 and 2, Bluetooth v5.3; Secondary Bluetooth Low Energy (BLE) for beaconing within BLE Battery |
| NFC | ISO 14443 Type A and B; MIFARE, FeliCa and ISO 15693 cards; Card Emulation via Host; Contactless payment support; Google Smart Tap ready; CPoC Compliant |
| Integrated RFID | Short range integrated UHF RFID; 4 ft (1.2m) range; reads 20 tags per second; EU 865-868MHz and US 902-928Mhz |
| Interface Ports | USB 2.0 (Back I/O - Host Only), USB 3.1 superspeed (Bottom Type C) - Super Speed (Host and Client) |
| Buttons | Programmable buttons for maximum flexibility: dual dedicated scan buttons, dedicated push-to-talk button, volume up/down buttons and trigger button of trigger handle via Back I/O. |
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] Zebra TC53e-RFID - Wifi Only | ||||
| TC530R-0T1E1B1000-RW | ZEBRA PDT TC53E 2D-SR 6/64 WLAN RFID AD/GMS | $4,664.00 | C3 | |
| [B] Charging Options | ||||
| Single Dock Kit - Charge Only | ||||
| CRD-NGTC5-2SE1B | ZEBRA DOCK KIT ETH+BATT 1-BAY TC53/TC58 | $660.00 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| Single Dock Kit - USB/Charge | ||||
| CRD-NGTC5-2SE1B | ZEBRA DOCK KIT ETH+BATT 1-BAY TC53/TC58 | $660.00 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| 25-124330-01R | ZEBRA CABLE DATA MICRO USB | $16.50 | C2 | |
| Single USB Dock Ethernet Module | ||||
| MOD-MT2-EU1-01 | ZEBRA USB TO ETH MODULE FOR CRADLES | $176.00 | C2 | |
| KT-TC51-ETH1-01 | ZEBRA ADAPTER SHAREPOINT USB TO ETH TC51 | $233.20 | C2 | |
| Workstation Connect Cradle | ||||
| CRD-NTC5X-1SNWS-01 | ZEBRA DOCK CHARGE/WORKSTATION 1-BAY TC53/TC58 | $957.00 | C2 | |
| PWRBGA12V50W0WW | ||||
| CBL-DC-388A2-01 | ZEBRA DC LINE CORD FOR SINGLE LEVEL VI PSU | $22.00 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| Point of Sale Connect Cradle | ||||
| CRD-NTC5X-1SNHP-01 | ZEBRA DOCK CHARGE/POS 1-BAY TC53/TC58 | $1,155.00 | C2 | |
| PWRBGA24V150W1WW | ||||
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| 5-Slot Charge Dock Kit | ||||
| CRD-NGTC5-5SC5D | ZEBRA MULTIDOCK KIT CHARGE ONLY 5-BAY TC53/TC58 | $1,749.00 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| 4-Slot Charge Dock Kit with 4-slot Battery charge slots | ||||
| CRD-NGTC5-5SC4B | ZEBRA MULTIDOCK KIT CHARGE+BATT 4-BAY TC53/TC58 | $1,749.00 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| 5-Slot Ethernet Charge Dock Kit | ||||
| CRD-NGTC5-5SE5D | ZEBRA MULTIDOCK KIT CHARGE/ETH 5-BAY TC53/TC58 | $2,024.00 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| [C] Battery | ||||
| BTRY-NGTC5TC7-44MA-01 | ZEBRA BATTERY STANDARD 4400MAH 1/PK TC53/TC58 | $209.00 | C3 | |
| BTRY-NGTC5TC7-44MA-10 | ZEBRA BATTERY STANDARD 4680MAH 10/PK FOR TC53/TC58 | $2,057.00 | C3 | |
| BTRY-NGTC5TC7-44MABLE-01 | ZEBRA BATTERY 4400MAH BLE TC53/TC58 | $242.00 | C3 | |
| BTRY-NGTC5TC7-66MA-01 | ZEBRA BATTERY EXTENDED 6600MAH TC53/TC58/TC73/TC78 | $297.00 | C3 | |
| [D] Accessories | ||||
| TRG-NGTC5-ELEC-01 | ZEBRA SCAN HANDLE TC53/TC58 REQ-BOOT V2 | $484.00 | C2 | |
| ADP-RFD40-TC5X-2E | ZEBRA RFD40 SLED ADAPTOR FOR TC53/TC58 | $110.00 | C2 | |
| SG-NGTC5TC7-HLSTR-01 | ZEBRA HOLSTER SOFT TC53/TC58 | $176.00 | C2 | |
| SG-NGTC5EXO1-01 | ZEBRA RUBBER BOOT TC53/TC58 | $99.00 | C2 | |
| SG-NGTC5-WMADP1-01 | ZEBRA WRIST MOUNT ADAPTER 191MM BLK FOR TC53/TC58 | $385.00 | C2 | |
| SG-NGTC5-WMADP1-02 | ZEBRA WRIST MOUNT ADAPTER 265MM BLK FOR TC53/TC58 | $385.00 | C2 | |
| SG-NGWT-CMPD-02 | ZEBRA COMFORT PAD WT6000 FOR WRIST MOUNT | $33.00 | C2 | |
| SG-NGWT-WSTPST-01 | ZEBRA WRIST STRAP SMALL/MEDIUM WT6000 | $122.10 | C2 | |
| SG-NGWT-WSTPLN-01 | ZEBRA WRIST STRAP MEDIUM/LARGE WT6000 | $122.10 | C2 | |
| SG-NGWT-WSTPXL-01 | ZEBRA WRIST STRAP EXTRA LARGE WT6000 | $154.00 | C2 | |
| SG-WT4027050-01R | ||||
| SG-NGTC5TC7-HDSTP-01 | ZEBRA HANDSTRAP TC53/TC58 1PK | $55.00 | C2 | |
| SG-PD40-WLD1-01 | ZEBRA WRIST STRAP MC40/PD40 | $19.80 | C2 | |
| SG-NGTC5-SCRNP-01 | ZEBRA SCREEN PROTECTION FOR TC53/TC58 | $44.00 | C3 | |
| The Vehicle cradle options can be configured in a number of different ways and can work with a number of different cables and accessories. Contact UMD Sales for a configuration suitable to your application. | ||||
| [E] Extended Maintenance | ||||
| Z1AE-TC53XX-3C00 | ZEBRA ONECARE ESSENTIAL TC53XX 3YR COMP | $631.40 | V | |
| Z1AE-TC53XX-3C03 | ZEBRA ONECARE ESSENTIAL TC53XX 3YR COMP+COMM+DASH | $752.40 | V | |
| Z1AE-TC53XX-5C00 | ZEBRA ONECARE ESSENTIAL TC53XX 5YR COMP | $1,030.70 | V | |
| Z1AE-TC53XX-5C03 | ZEBRA ONECARE ESSENTIAL TC53XX 5YR COMP+COMM+DASH | $1,232.00 | V | |
