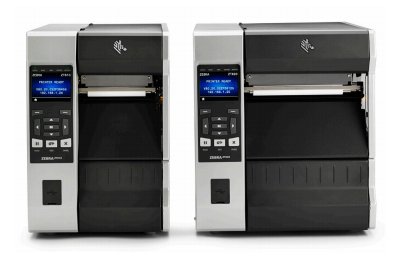

Zebra - ZT600 Series
RFID Bar Code Label Printer


The Zebra ZT600 Series printers combine industrial durability and user-friendly features with future-proof adaptability — including a factory- or field-installable RFID encoder — to meet your evolving needs for years to come. Gain greater visibility of your printing systems with Link-OS applications and managed operational and asset visibility services (OVS/AVS), plus the ability to deepen your insight into your entire business with advanced RFID printing and encoding.

The ZT610 and ZT620 RFID industrial printers are engineered to accurately and efficiently print and encode labels for today’s most advanced item-level tracking applications. Adaptive encoding enables media flexibility and simple RFID calibration, eliminating complex placement guides. An intuitive menu further reduces setup time.

Built to deliver outstanding print quality under the most challenging industrial conditions, ZT600 Series RFID printers virtually eliminate operational downtime due to printer failure. Their durable, all-metal designs hold up against extreme temperatures, dust, debris, moisture and worse. And high-quality print mechanisms and internal components deliver superior print quality and speed across the widest range of applications.

Tags are spaced incredibly close together, with a distance (pitch) of 0.6"/16 mm or narrower on most RFID inlays — smaller than what other printer/ encoders can accommodate. By spacing inlays closer, label converters use less material, which reduces your cost per label, requires fewer media roll changes and gives you faster printer/encoder throughout.

Features:

  • DT & TT printing
  • 8" diameter label roll on a 3"core
  • Tear-off or label peel; tickets or tags in rolls or fan-folded
  • Rugged and Reliable
  • 203, 300 or 600dpi print resolution options
  • Optional RFID reader/writer
  • User Friendly - from loading labels to changing the print head operations are quick and easy
  • ZPL and ZPLII Language selectable
  • Optional Zebranet 802.11ac Print Server Card
  • 12 month Warranty with Extension options

Specifications

Model
ZT610
ZT620
Physical Characteristics
Length
505mm
505mm
Height
395.6mm
395.6mm
Width
268.2mm
341.5mm
Weight
22.7kg
26kg
Environmental Characteristics
Operating Temperature
5°C to 40°C
Storage Temperature
-30°C to 60°C
Operating Humidity
20% to 85% non-condensing
Storage Humidity
20% to 85% non-condensing
Print Speed
Selectable
203dpi:
300dpi:
600dpi:

60–355mm/s (2.4–14 ips) variable
60–304mm/s (2.4–12 ips) variable
60–152mm/s (2.4–6 ips) variable

60–203mm/s (2.4–8 ips) variable
60–203mm/s (2.4–8 ips) variable

Media Specifications
Label Width
20mm to 114 mm
51mm to 180 mm
Minimum Label Length
Rewind:
Peel:
Tear-Off:
Cutter:

6 mm (0.24")
13 mm (0.51")
3 mm (0.12")
38 mm (1.5")

6 mm (0.25")
13 mm (0.5")
18 mm (0.7")
38 mm (1.5")
Maximum Label Length
(Non-continuous)
991 mm (39")
991 mm (39")
Label Type
Continuous, die-cut, notch, hole or black mark
Label Roll Diameter (maximum)
203 mm (8.0")
Label Core Diameter
76 mm (3.0")
Ribbon Width
20mm to 110 mm (0.79"- 4.33")
51mm to 170 mm (2"- 6.7")
Ribbon Type
Wound Out
Ribbon Roll Diameter (maximum)
81.3 mm (3.2"), 450m
Ribbon Core Diameter
25.4 mm (1.0")
Print Specifications
Width (maximum)
203dpi
300dpi
600dpi

104 mm (4.0")
105.7 mm (4.16")
105.6 mm (4.16")

168 mm (6.6")
168 mm (6.6")

Print Resolution
8 dots/mm (203 dpi, 12 dots/mm (300 dpi) or 16 dots/mm (600dpi)
8 dots/mm (203 dpi or 12 dots/mm (300 dpi)
Memory
Standard
2GB Flash
1GB SDRAM
Time
Clock
Internal RTC (Real Time Clock)
Barcodes
1 Dimensional
All major Bar Code Symbologies
2 Dimensional
Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec
Fonts
16 resident fonts
Interface's
Standard
RS232, USB Client, USB Host, gigabit Ethernet, BT4.0
Optional
Centronics (Parallel), 802.11ac (WiFi),
UHF EPC Gen2 915MHz RFID Reader/Writer

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] RFID Printers
RFID Label Printer
ZT61042-T0P01C0Z ZEBRA ZT610 4-INCH 203DPI T/T MULTI RFID TOUCH $6,831.00 C3
ZT61043-T0P01C0Z ZEBRA ZT610 4-INCH 300DPI T/T MULTI RFID TOUCH $7,095.00 C3
ZT61046-T0P01B0Z ZEBRA ZT610 4-INCH 600DPI T/T MULTI-IF RFID $10,824.00 C3
[B] Non RFID Label Printer
ZT610 Series
ZT61042-T0P0100Z ZEBRA ZT610 4-INCH 203DPI T/T MULTI TOUCH $4,488.00 C3
ZT61042-T1P0100Z ZEBRA ZT610 4-INCH 203DPI T/T MULTI CUTTER TOUCH $5,500.00 C3
ZT61042-T2P0100Z ZEBRA ZT610 4-INCH 203DPI T/T MULTI REWIND TOUCH $4,917.00 C3
ZT61043-T0P0100Z ZEBRA ZT610 4INCH 300DPI T/T MULTI COLOR TOUCH $4,774.00 C3
ZT61043-T1P0100Z ZEBRA ZT610 4-INCH 300DPI T/T MULTI CUTTER TOUCH $5,797.00 C3
ZT61043-T2P0100Z ZEBRA ZT610 4-INCH 300DPI T/T MULTI REWIND TOUCH $5,214.00 C3
ZT61046-T0P0100Z ZEBRA ZT610 4-INCH 600DPI T/T MULTI TOUCH $7,425.00 C3
ZT61046-T1P0100Z ZEBRA ZT610 4-INCH 600DPI T/T MULTI CUTTER TOUCH $8,448.00 C3
ZT61046-T2P0100Z ZEBRA ZT610 4-INCH 600DPI T/T MULTI REWIND TOUCH $7,854.00 C3
ZT620 Series
ZT62062-T0P0100Z ZEBRA ZT620 6-INCH 203DPI T/T MULTI TOUCH $7,425.00 C3
ZT62062-T2P0100Z ZEBRA ZT620 6-INCH 203DPI T/T MULTI REWIND TOUCH $7,964.00 C3
ZT62063-T0P0100Z ZEBRA ZT620 6-INCH 300DPI T/T MULTI TOUCH $7,700.00 C3
ZT62063-T2P0100Z ZEBRA ZT620 6-INCH 300DPI T/T MULTI-IF RW $8,239.00 C3
[C] Accessories
P1083320-041C ZEBRA UPGRADE KIT ZT600/ZT610R RFID $2,893.00 C3
P1083320-037C ZEBRA UPGRADE KIT 802.11AC ZT411/ZT421/ZT510/ZT600 $718.30 C3
[D] After Sales Support
Z1AE-ZT61-3C0 ZEBRA SERVICE ONECARE ESSENTIAL ZT61 3YR COMP $1,259.50 V
Z1AE-ZT62-5C0 ZEBRA SERVICE ONECARE ESSENTIAL ZT620 5YR COMP $2,827.00 V
Contact UMD for pricing on specific configurations sales@umd.com.au
An extensive range of off-the-shelf and custom labels are available.
