Times-7 A5060 RAM Mount Antenna Mounting Kit

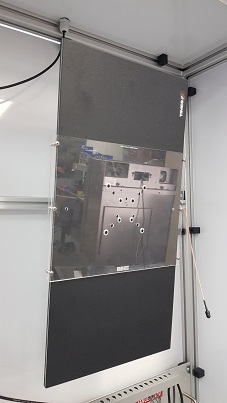

This Mounting Bracket Kit is for the Times-7 A5060 RFID Antenna and consists of custom laser-cut mounting plates that are bolted together with the Antenna sandwiched between and include a RAM-202U ball mounting base attached to the rear. The RAM Mounting Mounting hardware provides flexible mounting options as it can use any of the standard RAM-C Mount accessories available.

This Mounting plate can be customized to suit alternative attachment options on request and is part of the UMD Range of Custom Mounting Plates.

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] A5060 Antenna Mounting Kit (Sandwich Plates and "C" size RAM Ball)
4-0150-041-3 A5060-MNT-KIT-1 A5060 Antenna Plastic Mounting Kit $154.00 U
[B] A5060 Antenna Mounting Plates Only (without RAM Ball or fastenings)
4-0150-040-0 A5060 Antenna Mounting Plate $44.00 U
[C] Matching RAM Mount
Mounting Base (Ball)
RAM-202U 38mm Ball with Round Base $29.70 C3
Mounting ARM
RAM-201U Double Socket Arm C Size $49.50 C3
RAM-201U-B Short Double Socket Arm C Size $45.10 C3
RAM-201U-D Long Double Socket Arm C Size $90.20 C3
RAM-201-S-KEY5U Pin-Lock Arm C-Size (All 5 Pin) $61.60 C3
RAM Mount Catalog
