Avery Dennison HF Miniblock

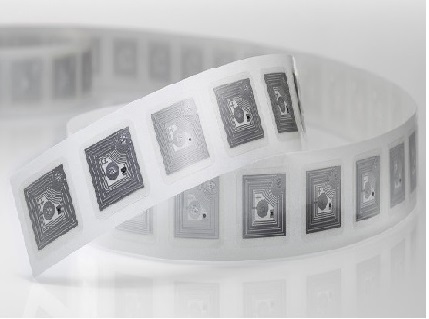

The Avery Dennison HF Miniblock RFID inlays and tags are the ideal solution for package and item level applications. The size of the tags are specially designed for pharmaceutical products and are usable within the industrial and medical industries.

Miniblock offers excellent performance for small objects that have a high demand for identification needs. Any mobile device can read the Miniblock using NFC. The NXP ICODE SLIX chip offers user memory of 896 bits while the NXP ICODE SLIX2 provides a superior user memory of 2,528 bits.

The inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management. A variety of applications require a reliable and state-of-the-art product and the Miniblock provides high performance.

Features

  • HF 13.56 MHz
  • Wet inlay for a variety of surfaces
  • 896 and 2500-bit memory chips
  • Mount on glass, wood, non-metal, plastic

Specifications

Physical Characteristics
Die-cut Dimensions 18mm x 18mm
Antenna Dimensions 14.5mm x 14.5mm
Overlay Clear PET
Environmental Characteristics
Operating Temperature -40°C to +85°C
Communication Characteristics
Operating Frequency 13.56 MHz
Chip Type NXP ICODE SLIX NXP ICODE SLIX 2
Chip Features
User Memory 896-bit 2500-bit
ISO Standards ISO 9001:2015, ISO 14001:2015


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Avery Dennison - HF Tags
HF Wet Inlays
AD-3002129 HF Miniblock, SLIX, ISO15693, 896bit, Wet Inlay, Clear PET, 18x18mm $0.77 A6
