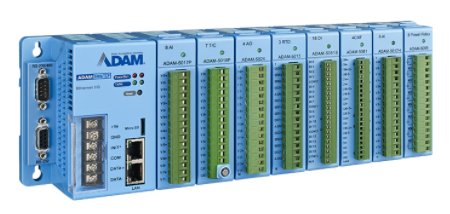

Advantech - Adam-5000 Series
Industrial Ethernet Controller for Distributed DA&C


The Advantech ADAM-5000 Series is a compact and powerful ethernet controller for direct connection to multiple I/O modules by multiple and concurrent accessing host PC's. The ADAM-5000L/TCP and ADAM5000/TCP are able to operate for upto 100m from the nearest upstream switch and allow for remote configuration as well as access over this distance, or upto 1.2Km using the RS-485 port.

With a wide selection of I/O modules available for use with the ADAM-5000 this controller allows for the use of a large mix and variety of Serial, Analog and Digital Inputs and Outputs, as well as a storage option.

By adopting a 32-bit RISC CPU, the ADAM-5000 Series has greatly advanced data processing abilities for the user, especially for network communications. There is a standard RJ-45 modular jack Ethernet port on the ADAM-5000 CPU board, and I/O modules field signals would be able to link with the Ethernet directly without assistance from other hardware devices such as converters or data gateways. Through an Ethernet network, your DA&C systems, computer workstations, and higher-level enterprise MIS servers can access plant- floor data. Such data can be used in system supervising, product scheduling, statistical quality control, and more.

Modbus/TCP is one of the most popular standards for industrial Ethernet networks, following this communication protocol, the ADAM-5000 Series is easy to integrate with any HMI software packages or user-developed applications that support Modbus. Users do not have to prepare a specific driver for the ADAM-5000 Series when they install the DA&C system with their own operating application. Moreover, the ADAM-5000 Series works as a Modbus data server. It allows eight PCs or tasks to access its current data simultaneously from anywhere: LAN, Intranet, or Internet.

Features

  • Cortex M4 CPU
  • 10/100Base-T auto-negotiation high-speed communication port
  • Supports Modbus/TCP for easy integration
  • Supports UDP event handling function
  • Up to 100 m communication distance w/o repeater
  • Allows remote configuration via Ethernet
  • Allows concurrent access for 16 host PCs
  • 4 I/O slots for up to 64 points and 8 I/O slots for up to 128 points data monitoring and control
  • 1500 VDC isolation for Ethernet communication
  • Built-in watchdog timer for system auto-reset
  • Windows configuration utility
  • Provides C and .NET class library to develop applications
  • Support GCL function for easy IO interlocking logic
  • 24 Month Return to Base Warranty



Specifications
ADAM-5000L/TCP ADAM-5000/TCP
Physical Characteristics
Width 231 mm 355 mm
Height 110 mm 110 mm
Depth 75 mm 75 mm
Mounting Panel or DIN-rail
Environmental Characteristics
Operating Temperature -10 to 70C
Storage Temperature -25 to 85C
Humidity 5 to 95%, Non-Condensing
Electrical
Power Input 10 - 30 V/DC
Power Consumption 4.0W @ 24V/DC
(Not including I/O Modules)
5.0W @ 24V/DC
(Not including I/O Modules)
System Configuration
CPU Coretex M4
I/O Slots 4 8
Memory 1MB Flash
Storage 1 MicroSD Slot
Operating System Real-Time OS
LED Indicators LEDs for Power, Run, Communication (Link, Active, 10/100Mbps, Tx, Rx)
Standard (Inbuilt) Ports
Network2 x RJ45, 10/100 Mbps, sharing one MAC address
Serial1x RS-422/485, 1x RS232 (For System Monitoring)

Supported I/O Module List
Module TypeModelSpecificationReference

Analog I/O

ADAM-50133-ch RTD inputIsolated
ADAM-50178-ch AIIsolated
ADAM-5017P8-ch AI with independent InputIsolated
ADAM-5017H8-ch High-speed AIIsolated
ADAM-5017UH8-ch Ultra High-speed AIIsolated
ADAM-50187-ch Thermocouple inputIsolated
ADAM-5018P7-ch Thermocouple input with independent InputIsolated
ADAM-50244-ch AOIsolated

Digital I/O

ADAM-505016-ch DI/ONon-isolated
ADAM-505116-ch DINon-isolated
ADAM-5051D16-ch DI w/LEDNon-isolated
ADAM-5051S16-ch Isolated DI w/LEDIsolated
ADAM-50528-ch DIIsolated
ADAM-5053S32-ch Isolated DIIsolated
ADAM-5055S16-ch. Isolated DI/O w/LEDIsolated
ADAM-505616-ch DONon-isolated
ADAM-5056D16-ch DO w/LEDNon-isolated
ADAM-5056S16-ch Isolated DO w/LEDIsolated
ADAM-5056SO16-ch Iso. DO w/LED (source)Isolated
ADAM-5057S32-ch Isolated DOIsolated

Relay Output

ADAM-50606-ch. Relay outputIsolated
ADAM-50698-ch Relay outputIsolated

Counter/Frequency

ADAM-50804-ch Counter/FrequencyIsolated
ADAM-50814-ch High Speed Counter/FrequencyIsolated

Serial I/O

ADAM-50904-port RS232Non-isolated
ADAM-50914-port RS232/422/485 with Share InterruptNon-isolated
ADAM-50952-port CANIsolated

Storage

ADAM-50302-slot SD Storage ModuleNon-isolated
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] ADAM-5000 Distributed DAC System
ADAM-5000/TCP-CE 8-SLOT DISTRIBUTED DA&C SYSTEM BASED ON $1,012.00 A
[B] ADAM-5000L Distributed DAC System
ADAM-5000L/TCP-BE ADAM-5000-4 4-SLOT ETHERNET-BASED DISTRIBUTED DA&C $836.00 A
[C] ADAM Modules
ADAM-5055S-AE 16-CH ISOLATED DI/O MODULE W/ LED $264.00 A
ADAM-5018-A2E 7-CH THERMOCOUPLE INPUT MODULE $451.00 A
