Advantech - AMAX-5580
Industrial PC for Data Acquisition & Communications

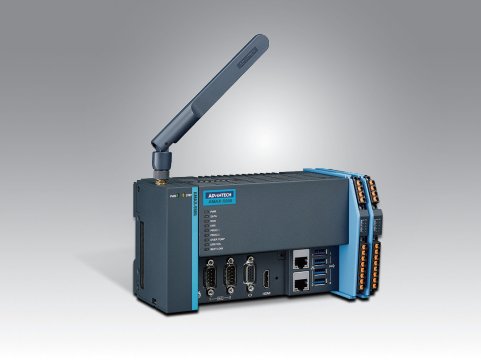

Advantech's AMAX-5580 is a compact and powerful Control IPC with an Intel Core i7/i5/Celeron CPU. It is the ideal open control platform to be combined with AMAX-5000 Series EtherCAT Slice IO modules, and features flexible I/O expansion, real-time I/O control, network capability through various interfaces, and support dual power input for robust power system. It also has a built-in standard mini PCI express interface for wireless communication. The AMAX-5580 is the best solution for data gateway, concentrator and data server applications, its seamless integration with I/O can save costs and fulfil a diverse range of automation projects.

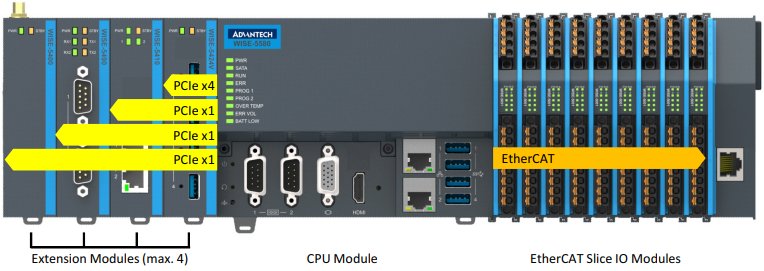

The AMAX-5580 Basic CPU module equipped with 4 PCIe lanes for left hand side function extension, where the first attached module can use the PCIe x4 resource and the other 3 use PCIe x1 resource. The supported functions include USB 3.0, PoE, GbE, RS-232/422/485, Flash Disk and Wireless Interface.

The Right hand side is the EtherCAT slice IO extension, which can be centralized and distributed through EtherCAT network topology. The supported IO function included Digital Input/Output, Voltage/Current Analogue Input and Output, Thermal couple, RTD, Counter/Encoder.

Features

  • Compact Fanless design
  • 6th Generation Intel Core CPU Options
  • DIN Mount Design
  • Flexible Expandable I/O
  • Dual Power input option with alarm
  • 24 Months Return to Base Warranty




Specifications
AMAX-5580-AC AMAX-5580-A5 AMAX-5580-A7
Physical Characteristics
Width:
AMAX-5400 Expansion Module
AMAX-5580 CPU Module
AMAX-5000Slice I/O Module

27 mm
139 mm
12 mm
Height: 106 mm
Depth:
AMAX-5400 Expansion Module
AMAX-5580 CPU Module
AMAX-5000Slice I/O Module

78 mm
78 mm
95 mm
Weight:
AMAX-5580 CPU Module

1.3 Kg
Mounting DIN-rail
Environmental Characteristics
Operating Temperature -10 to 60C
Storage Temperature -40 to 85C
Humidity 0 to 95% @ 40C Non-Condensing
Shock Operating, IEC 60068-2-27, 10G, half sine, 11 ms
Vibration Operating, IEC 60068-2-64, 1 Grms, random, 5 ~ 500 Hz, 1hr/axis (M.2)
Electrical
Power Input 24V/DC( 20%), With Secondary Dual Power Input Option with Alarm
Power Consumption 15W Typical, 42W Max.
System Configuration
CPU Intel Celeron 3955U 2.0 GHz
Skylake Dual Core, 2MB L2 Cache
Intel Core i5 6300U 2.4 GHz
Skylake Dual Core, 3MB L2 Cache
Intel Core i7 6600U 2.4 GHz
Skylake Dual Core, 4MB L2 Cache
System Chipset Integrated PCH-LP
Memory (Standard) 4GB, DDR4 Dual Channel 8GB, DDR4 Dual Channel
Storage 1 slot for SATA M.2 SSD, 2280 M-key
Expansion 1 x Full-size mPCIe slot for Wireless Module or NVRAM Module
AMAX-5400 Function Modules, Left Side (Max. 4)
AMAX-5000 EtherCat Slice IO Modules, Right Side
(For specific options see details below)
BIOS AMI UEFI 128Mbit Flash BIOS
Watchdog Timer Programmable 255 levels timer interval, from 1 to 255 sec
LED Indicators LEDs for power, battery, LAN (Active, Status), Tx/Rx and HDD
Standard (Inbuilt) I/O Ports
Serial2 x RS-232/422/485, DB9, 50 ~ 115.2kbps
Network2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000BASE-T Fast Ethernet)
USB4 x USB 3.0, 1 x internal USB
Video1x VGA (Supports 1920 x 1080 @60 Hz 24bpp)
1 x HDMI, support up to 4096 x 2160 @ 24Hz 24bpp
Internal ExpansionFull-size MiniPCIe/mSATA

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] AMAX-5580 - UMD Kits
Base Systems - Configured
AMAX-5580-AC0-0000-0 AMAX-5580 IPC/DAQ Celeron, Win 10, 4G, Base System $3,080.00 A
AMAX-5580-AC1-C000-1 AMAX-5580 IPC/DAQ Celeron Win 10, 4G+64G SSD,, CAN Module, Slice Module: Pwr + 4DI $4,587.00 A
With Ethernet Cat Slice I/O modules Pre-Installed
AMAX-5580-AC1-C000-16 AMAX-5580 IPC/DAQ Celeron 4G+64G SSD,,Win 10, CAN Module, Slice Module: Pwr + 4DI, 6 Ch T/C $5,137.00 A
AMAX-5580-AC1-C000-1666684C AMAX-5580 IPC/DAQ Celeron 4G+64G SSD,, Win 10, CAN Module, Slice Module: Pwr + 4DI, 24 Ch T/C, 8 Ch DI, 4 Ch Volt AI, 8 Ch DO (Source) $7,683.50 A
Base Controller Only (no O/S or options)
AMAX-5580-54000A PC-BASED CONTROLLER CORE I5 6300U, 8G D $3,575.00 A
AMAX-5580-74000A PC-BASED CONTROLLER CORE I7 6600U, 8G D $4,169.00 A
AMAX-5580-C3000A PC-BASED CONTROLLER CELERON 3955U, 4G D $2,662.00 A
[B] Internal Options
SQF-SM8U4-64G-SBE SQF mSATA 640-C 64G 3D sTLC BiCS4 (-40~80c) $638.00 A
[C] EthernetCAT Slice I/O Modules (unlimited) Mounted Right Hand Side
AMAX-5001-A SMART POWER INPUT MODULE W/ 4DI $297.00 A
AMAX-5015-A 4-CH RTD INPUT MODULE $517.00 A
AMAX-5017C-A 6-CH CURRENT AI MODULE $489.50 A
AMAX-5017V-A 6-CH VOLTAGE AI MODULE $489.50 A
AMAX-5017H-A 4-CH HIGH SPEED AI MODULE $748.00 A
AMAX-5018-A 6-CH THERMOCOUPLE INPUT MODULE $550.00 A
AMAX-5024-A 4-CH ANALOGUE OUTPUT MODULE $462.00 A
AMAX-5051-A 8-CH DIGITAL INPUT MODULE $198.00 A
AMAX-5051T-A 2-CH DI TIMESTAMP, 6-CH DI W/O TIMESTAM $253.00 A
AMAX-5052-B
AMAX-5056-A 8-CH SINK TYPE DIGITAL OUTPUT MODULE $198.00 A
AMAX-5056SO-A 8-CH SOURCE TYPE DIGITAL OUTPUT MODULE $209.00 A
AMAX-5056T-A 2-CH DO TIMESTAMP MODULE $286.00 A
AMAX-5057-A 16-CH SINK TYPE DO MODULE $550.00 A
AMAX-5057SO-A 16-CH SOURCE TYPE DO MODULE $253.00 A
AMAX-5074-A ETHERCAT COUPLER WITH ID SWITCH $352.00 A
AMAX-5079-A ETHERCAT EXTENSION $154.00 A
AMAX-5080-A 2-CH COUNTER/ENCODER INPUT MODULE (32-B $396.00 A
[D] Extension Module (max 4) Mounted left hand side
AMAX-5400E-A PCIE-MINI CARD EXPANSION MODULE $242.00 A
AMAX-5410-A 2X GIGE MODULE $440.00 A
AMAX-5410P-A 2X POE MODULE $693.00 A
AMAX-5424V-A 4X USB 3.0 MODULE $506.00 A
AMAX-5490-A 2X ISO RS-232/422/485 MODULE $396.00 A
AMAX-5495-A 2X CAN MODULE $572.00 A
[E] DIN-Rail Type Power Supply Module
1-6009-130-6 PS24RS5000D-T Din Mount 120W Power Supply 24V/5A $165.00 C
