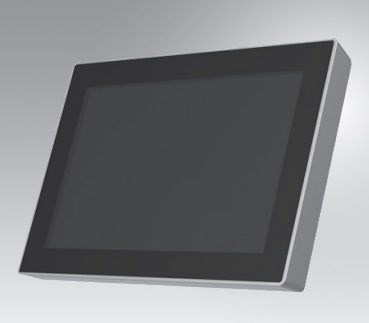

Advantech - UTC-510D Series
Touchscreen System


UTC-510 features an all-in-one computing system equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversifiedself-service and interactive signage deploy in different application areas. The systems deliver updated information with well-designed interactive interfaces, fully ensure relevant contentand targeted promotions are delivered. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits.

Features

  • Low Power & Fanless design
  • Built-in CPU
  • Providing Natural Viewing Experience with 10.1" Display
  • Front panel complies with IP65 protection standard
  • All in one aluminum extrusion design
  • Landscape & Portrait screen mode support by different applications
  • VESA 75 mm standard mounting holes for varied mounting demands
  • Attachable design for panel & peripherals to extend function and applications
  • 24 Months Return to Base Warranty
  • Extended warranty of 1, 2 or 3 years available
Specifications
  UTC-510D N2807 UTC-515D J1900
Physical Characteristics
Width 260.4 mm
Height 177.5 mm
Depth 40.1 mm
Weight 1.8 Kg
Mounting 75mm VESA
Environmental Characteristics
Operating Temperature 0 to 45°C 0 to 40°C
Humidity 10 to 95% @ 40°C Non-Condensing
Vibration 1.0G
Shock 5G peak acceleration (11msec. duration)
Front Panel ProtectionIP65
Electrical
Power Input IEEE 802.3at/30W
Optional: 12 V/3 A ~ 24 V/1.5 A, 36W ITE Adapter
Power Consumption 10W Typical, 20W Max.
System Configuration
CPU IntelŪ Celeron N2807,
1.58 GHz (Dual-Core), L2 Cache 1MB		 IntelŪ Celeron J1900,
2 GHz (Quad-Core), L2 Cache 2MB
Memory 1 x SO-DIMM DDR3L 1333 MHz up to 8 GB
Display 10.1" TFT LCD with LED backlight, 1280 x 800, 16.7M Colours, 350 cd/m2
View Angle 170° / 170°
Touch Panel Options Projected Capacitive, No Touch Glass
HDD Internal 2.5" SATA Bay
I/O Ports
USB 2x USB 2.0, 1x USB 3.0 & 1x USB 2.0(DC Power Version only)
SerialCom1: DB9M RS232, Com2: RJ45 RS422/485
Audio2.5mm Headphone with MIC
Video1x HDMI
Network2x Gigabit Ethernet ports (1 with POE)
Expansion1 Full size MiniPCIe/mSATA
1 Half size MiniPCIe
Software
Operating SystemsWindows Embedded 7, Windows Embedded 8, Window 10 IoT Enterprise, Linux Ubuntu 14.04, Android 4.4.2
Mountable Options (1 only selectable)
Card ReadersMagnetic Stripe Reader (MSR), RFID Smart Card Reader
Barcode1D Barcode Reader, 2D Barcode Reader
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] UTC-510D Series Touch Computer - Base
UTC-510DG-ATB1E 10.1 GLASS WITH CELERON J1900, 2GB RAM $1,804.00 C3
UTC-510DP-ATN1E 10.1 PCT.T/S WITH CELERON J1900, 2GB R $1,958.00 C3
UTC-510GP-ATB0E 10.1 PCT.T/S WITH CELERON N3350, 2GB R $1,782.00 C3
UTC-510GP-ATB1E 10.1 PCT.T/S WITH PENTIUM N4200, 2GB R $1,991.00 C3
UTC-510GP-ATN1E 10.1 PCT.T/S WITH PENTIUM N4200, 2GB R $2,024.00 C3
Base System Units, depending on configuration may require additional peripherals, including Operating System, to be added.
For incomplete systems contact UMD for a Quote.
[B] Mounting Stands
UTC-510-STANDE0E
UTC-WALL-MOUNT4E UTC-510 VESA MOUNT (75X75) $99.00 C3
UTC-WALL-MOUNT5E UTC-510 VESA MOUNT (75X75) $110.00 C3
VESA Mount Brackets
