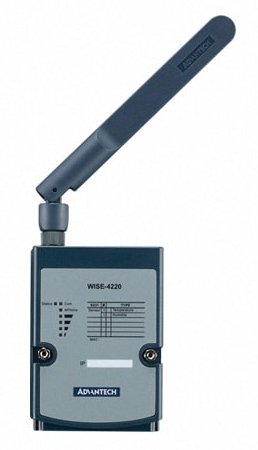

Advantech - Wise 4220
Industrial WiFi I/O Module


The WISE-4220 series is an Ethernet-based wireless IoT device, integrated with IoT data acquisition, processing, and publishing functions. As well as various I/O and sensor types, the WISE-4220 series provides data pre-scaling, data logic, and data logger functions. These data can be accessed via mobile devices and be published to the cloud with security at anytime and anywhere.

The Wi-Fi interface is easily integrated with wired or wireless Ethernet devices, users only need to add a wireless router or AP to extend existing Ethernet network to wireless. The limited AP mode enables the WISE-4220 to be accessed via other Wi-Fi devices directly as an AP.

All of the configuration interfaces are applied through the web service, and the web pages are based on HTML5, so users can configure the WISE-4220 without any device or OS limitations. You can use your mobile phone or tablet to directly configure the WISE-4220.

The WISE-4220 can log up to 10,000 samples of data with a time stamp. The I/O data can be logged periodically, and also when the I/O status changes. Once the memory is full, users can choose to overwrite the old data to ring log or just stop the log function.

Data logger can push the data to file-based cloud services using pre-configured criteria. With RESTful API, the data can also been pushed to a private cloud server in the format of JSON. Users can setup their private cloud server using the provided RESTful API and their own platform.

  • 2.4GHz Wi-Fi reducing the wiring cost during big data acquisition
  • Easily extend the existing network by adding APs, and share existing Ethernet software
  • Configured by mobile devices directly without installing any software or Apps
  • Zero data loss using the log function with RTC time stamp
  • Data can be automatically pushed to Cloud
  • Supports RESTful web API in JSON format for IoT integration

Specifications

IoT Wireless I/O ModuleWISE-4220-S231WISE-4220 with S214WISE-4220 with S250WISE-4220 with S251
Physical Characteristics
Dimensions
With Antenna
102 (h) x 70 (w) x 38 (d) mm
275 (h) x 70 (w) x 38 (d) mm
MountingDIN 35 rail, wall, stack and pole
CasePC
ConnectorPlug-in screw terminal block (I/O and power)
Environmental Specifications
Operating Temperature-25 to 70C
Storage-40 to 85C
Operating Humidity20 to 95 % (non condensing)
Storage Humidity0 to 95 % (non condensing)
Connectivity
WiFiIEEEC 802.11 b/g/n 2.4GHz, Client or Limited AP, 150m line of sight
SerialRS-485RS-485
Analog Input-4--
Digital Input-4 (Dry Contact)6 (Dry Contact)6 (Dry Contact)
Digital Output--2 (Sink Type)-
Temperature Sensor-25 to 70C---
Humidity Sensor10-90% RH---
Power
Input10-50VDC
Consumption1.2W @ 24V/DC
Indicators
LED'sGreen Status, Yellow Com, Green AP Mode, Yellow Signal Strength
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Advantech Wise 4220 Series Modules
WISE-4012 Series
WISE-4220-A WIFI 2.4G WIRELESS SENSOR MODULE $308.00 A
WISE-4220-S231A IOT WSN WITH TEMPERATURE & HUMIDITY SEN $473.00 A
WISE-4220 Series Add-On Module
WISE-S214-A WISE-4200/WISE-4400 4AI/4DI I/O MODULE $308.00 A
WISE-S250-A WISE-4200/WISE-4400 6DI/2DO/1RS-485 I/O $220.00 A
WISE-S251-A WISE-4200/WISE-4400 6DI/1RS-485 I/O MOD $154.00 A
