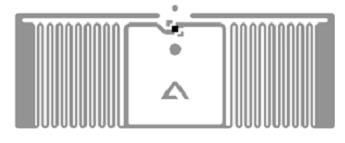

Alien Technology - ALN 9715 Glint
UHF RFID Inlay
 |
Powered by Alien®’s break-through Higgs™4 UHF RFID IC and innovative “Glint” antenna design, the ALN-9715 delivers industry leading EPC Gen 2 performance and reliability for jewelry and cosmetics, especially when tagging in compact and highly dense areas. With its Higgs-4 core, the “Glint” delivers next generation read and write performance, yet is completely optimized for the highest volume enterprise and retail applications. An optimized memory footprint includes a 32-bit TID, a 64-bit Unique TID for authentication and next generation serialization applications, a 128-bit EPC memory bank, 128-bits of user memory for distributed data applications, and password protected read and write support capabilities to prevent unauthorized viewing and modifi cation of the tag’s data. ALN-9715 inlays are World Tag compliant, enabling consistent operation across the diverse frequencies of the Americas, Europe, Middle East, Asia, and Africa. Applications
|
|---|
Specifications
| Physical Characteristics | |
|---|---|
| Dimensions | 27 mm x 9.7 mm |
| Adhesive | General Purpose Permanent |
| Overlay | TT Printable White Film |
| Environmental Characteristics | |
| Shelf Life | 2 Years @ 25°C 40% Relative Humidity (Non-Condensing) |
| Shelf Storage Limits | -25°C to +50°C 20% to 90% Relative Humidity (Non-Condensing) |
| Application Temperature | Greater Than -4°C |
| Operating Limits | -40°C to +70°C 20% to 90% Relative Humidity (Non-Condensing) |
| ESD Limit | HBM: 5.0kV CDM: 1.5kV |
| RFID Characteristics | |
| RF Protocol | EPC Gen 2(ISO 18000-6C) |
| Operating Frequency Range | 840 to 960 MHz |
| Operating Mode | Passive |
| Tag Characteristics | |
| EPC | 128 bits |
| IC | Alien Higgs-4 |
| Read Range | TBA |
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] Sample Tags | ||||
| 9-9740-152-4 | ALN-9715-WRW-1 | Alien Glint, White Wet Inlay, Higgs-4, Each | $0.33 | A |
| 9-9740-151-3 | ALN-9715-WRW-TST | Alien Glint, White Wet Inlay, Higgs-4, 1K | $319.00 | A |
| [B] Rolls | ||||
| 9-9740-150-2 | ALN-9715-WRW | Alien Glint, White Wet Inlay, Higgs-4, 20K | $4,840.00 | A |
