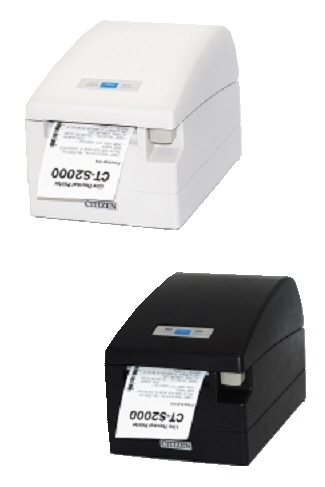

Citizen - CT-S2000
POS Thermal Printer


The Citizen CT-S2000 is a high speed, 2 colour, thermal receipt printer with an inbuilt paper cutter and inbuilt power supply. It also incorporates easy drop in paper loading, with 4 paper width options and front paper exit, making it ideal for wet areas and ticketing applications.

Features

  • Compact design
  • High speed printing (220 mm/sec)
  • Paper-drop-in style
  • 4 Paper width options
  • Front paper exit (ideal for wet areas)
  • Permanant bitmap data storage
  • 2 Colour print capabile
  • USB Standard with either Serial or Parallel interface
  • Black model available
  • ESC/POS emulation
  • 2 Year Warranty

Specifications
Physical Characteristics
Dimensions147(w) x 207(d) x 147(h) mm
Weight2.0 Kg
Environmental Characteristics
Operating Temperature5 - 40°C
Operating Humidity10 - 90%
Storage Temperature-20 - 60°C
Storage Humidity10 - 90%
Mechanism Characteristics
Print methodLine Thermal Dot Printing
Copy capacity1 Original
Columns:
82.5 mm Paper
Font A: 53   Font B: 71  Font C: 80
Columns:
80 mm Paper
Font A: 48   Font B: 64   Font C: 72
Columns:
60 mm Paper
Font A: 36   Font B: 48   Font C: 54
Columns:
58 mm Paper
Font A: 35   Font B: 46   Font C: 52
Print Speed220 mm/sec Max.
Paper FeedFriction Feed
Print Font
Character MatrixFont A:12 x 24 Matrix   Font B:  9 x 24 Matrix   Font C:  8 x 16 Matrix
Character SizeFont A: 1.25 x 3.00 mm   Font B: 0.88 x 3.00 mm   Font C: 0.88 x 2.00 mm
Character TableCode Page 437, 850, 852, 857, 858, 860, 863, 864, 865, 852, 866, Katakana, WPC1252, Thai code 18
Barcode TypeUPC-A/E, JAN(EAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93
Interface
USBStandard - Inbuilt
SerialRS-232 or
ParallelCentronics
Data buffer4 K bytes
Cash Drawer2 Drawers
Power
InputAC 100-240V
Paper Specifications
Roll Width82.5 mm, 80 mm, 60 mm or58 mm
Roll Diameter83 mm Max.
Core Size10mm
Thickness0.06 to 0.11 mm
Reliability
Head150 Km or 200,000,000 Pulses
Cutter2,000,000 Cuts
Certifications
Safety StandardUL, C-UL, FCC class A, TUV-GS, CE marking
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] CT-S2000
9-5005-030-9 CT-S2000w-U Thermal Line Printer with USB - White $651.20 2
9-5005-031-5 CT-S2000w-UC Thermal Line Printer with USB & Centronics - White $587.40 2
9-5005-032-8 CT-S2000w-US Thermal Line Printer with USB & Serial - White $587.40 2
9-5005-033-9 CT-S2000b-U Thermal Line Printer with USB - Black $651.20 2
9-5005-034-6 CT-S2000b-UC Thermal Line Printer with USB & Centronics - Black $587.40 2
9-5005-035-3 CT-S2000b-US Thermal Line Printer with USB & Serial - Black $587.40 2
9-5005-036-0 CT-S2000w-UE Thermal Line Printer with USB & Ethernet - White $915.20 2
9-5005-037-7 CT-S2000b-UE Thermal Line Printer with USB & Ethernet - Black $915.20 2
[B] Cable Assemblies
2-5210-020-6 CA210-2 D9S to Printer (2m) $22.00 U1
2-5101-020-4 CA101-2 Serial D25 to Printer $8.80 A
2-5102-020-9 CA102-2 Parallel Print Cbl 2M $8.80 A
2-6270-020-5 CA6270-2 USB 2.0 Cable A/B, Black - 2m $7.70 A
[C] Consumables
9-9080-586-5 PR8080T/24-PREM Thermal Paper Roll 80mm(w) x 80mm(d) (pk 24) - PREMIUM $60.50 B
9-7080-050-1 CA005/1 Clean-Penn $11.00 A
[D] Accessories
9-5009-083-0 CIF300E CTSxxx/CDS50x Interface Board - Ethernet $704.00 H
