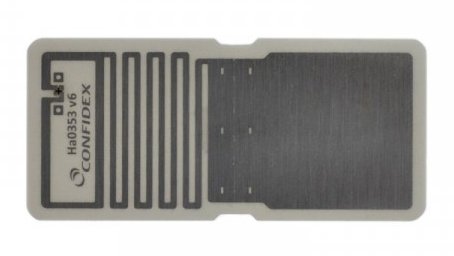

Confidex Ferrowave Flag
Robust UHF RFID Asset & Logistics Label Tags


The Confidex Ferrowave Flag UHF Label Tag is a versatile label for item level asset and part tracking of both metal and non metal items where the flag protrusion is suitable.

Features

  • Designed for use in a wide variety of environments
  • Designed for metal and non-metal asset applications
  • Up to 12 meters read range on a metal asset

Specifications

ProductFerrowave Flag
(3003441)
Physical Characteristics
Dimensions46 mm x 21mm x 0.2mm
Weight0.2g
Tag MaterialPrintable white PET
ColourWhite
Environmental Characteristics
Operating Temperature-35- 85C
Ambient Temperature-35- 85C
Water ProtectionGood, tested 5 hours in 1m deep water (IP68)
Washing ResistanceTolerates cleaning with standard solvents.
(Industrial pressure washing not recommended)
Chemical ResistanceNo physical or performance changes in:
- 24h Salt water (salinity 10%) exposure
- 168h Motor oil exposure
- 2h NaOH (10%, pH 13) exposure
- 168h Sulfuric acid (10%, pH 2) exposure
- 30min Acetone exposure
Storage Conditions1 year in +20C / 50% RH (shelf life for adhesive)
Communication Characteristics
Operating Frequency865 MHz - 928 MHz (FCC)
Chip TypeMonza 4E(EPC 496 bit; User 128 bit; TID 96 bit)
Read Distance(2W ERP)Up to 4 m on plastic or cardboard
Up to 12 m on metal
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Confidex Ferrowave Flag
CX-3003441
