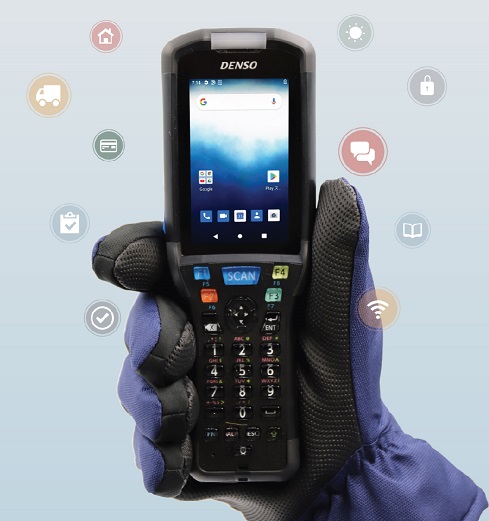

Denso - BHT-M60 Series
Hand Held Warehouse Computer


The DENSO BHT-M60 series is a robust Android Handheld Warehouse Terminal that features a large high-definition display to ensures crystal clear visibility. The terminal has an IP65 or IP67 rating with an ergonomic design that facilitates easy single-handed operation.

The DENSO BHT-M0 has a wide range of features commonly associated with mobile computers and a very generous 3 Year Warranty option, is powered by Android 10 and has been specifically designed to work as an industrial warehouse terminal, providing rich options for data collection, data communication, long working hours, and its colour display guarantees easy reading in all lighting conditions.

Integrated with Bluetooth and NFC this Terminal series also includes optional 3G/4G LTE WWAN models with GPS that enable greater flexibility.

Features

  • Built tough to survive drop test and sealed against moisture/dust to industrial standard IP65/IP67
  • Android 10 operating system with a powerful Qualcomm 2.2GHz Octa-Core CPU
  • High Quality 3.2"(81mm) touch screen display
  • Crack and Scratch Resistant Dragontrail Pro Glass
  • 13-megapixel Rear Camera
  • Ergonomic Operation (Angled Scan Engine)
  • Contactless Charging Battery Option
  • Extended Temperature operation
  • 3 Year Warranty Option

Specifications

BHT-M60-QWBHT-M60-QWG
Physical Characteristics
Length
195 mm
Width
66 mm
Depth
44 mm
Weight
Standard Battery
Extended Battery

305g
320g
Environmental Characteristics
Temperature
-20 to 50C
Fluid/Dust Protection
IP65/67
Shock Resistance
1.5m60 times, 3.0m Max Drop Survivability
Hardware
CPU
Qualcomm SDM660 64 bit 2.20 GHz(Octa-Core)
Memory
4GB RAM, 64GB Flash, Micro SDHC/SDXC (Upto 128GB)
Display
3.2inch (81mm)WVGA Colour Liquid Crystal dot matrix display(480x800 dots, with White LED Backlight)
Touch Screen
Dragontrail PRO(3)
User Interface
5 keys + 2 trigger keys
Camera
Rear 13MP auto focus
Front 5MP
Power
Main Battery
4020mAh Standard or 5800 Extended Lithium Ion Battery
Battery Life
Standard Battery Approx. 20 Hours
Extended Battery Approx. 29 hours
Software
Operating System
Android 10
Barcode Reader
Type
Area Imager
RFID Reader
TypeNFC ISO14443A&B, FeliCa, ISO15693
User Feedback
LED Indicator, Speaker, Vibrator
Communications
Wireless
IEEE802.11a/b/g/n/ac/r/k/v/w/mc and MU-MIMO 2x2
Bluetooth Ver5.1+EDR/LE
-
FDD-LTE (4G), W-CDMA/UMTS/HSPA/HSPA+ (3G), Nano SIM
GPS
A-GPS/GLONASS/QZSS/BeiDou/Galileo

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Denso BHT-M80
10
10
10
10
[B] Quick Charge Cradle (Requires USB Power Source and cable)
49
49
[C] Charging Cradles (Requires Power Supply and Power Cable)
49
49
496
49
49
2-6254-020-7 CA6254-2 Power Lead, Appliance (Fig8) $9.26 U1
[D] Accessories
Batteries (One supplied with Handheld)
49
49
Cables
49
Miscellaneous
49
49
