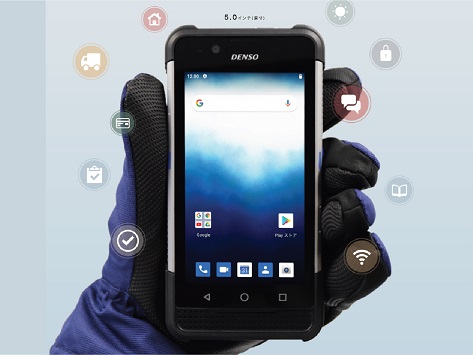

Denso - BHT-M80 Series
Hand Held Computer


The DENSO BHT-M80 series is a robust Android Handheld Terminal that features a large high-definition display which ensures crystal clear visibility. The terminal has an IP67 rating and an ergonomic design that facilitates easy single-handed operation.

The DENSO BHT-M80 has a wide range of features commonly associated with mobile computers and a very generous 3 Year Warranty option, is powered by Android 10 and hasa support for contactless charging. The BHT-M80 is specifically designed to work as an industrial PDA, providing rich options for data collection, voice and data communication, long-lasting working hours, and its large colour display guarantees easy reading in all lighting conditions.

Integrated with Bluetooth and NFC this Terminal series also includes optional 3G/4G LTE WWAN models with GPS that enable greater mobility applications.

Features

  • Built tough to survive drop test and sealed against moisture/dust to industrial standard IP67
  • Android 10 operating system with a powerful Qualcomm 2.2GHz Octa-Core CPU
  • High Quality large 5"(127mm) touch screen display
  • Crack and Scratch Resistant Dragontrail Pro Glass
  • Ergonomic Operation (Angled Scan Engine)
  • 15MP Rear Camera with Autofocus and 5MP Front Camera
  • 2 nano-SIM Slots, 4G & 4G in WAN model
  • Contactless Charging Battery Option
  • Extended Temperature operation
  • 3 Year Warranty Option

Specifications

BHT-M80-QWBHT-M80-QWG
Physical Characteristics
Length
167 mm
Width
84 mm
Depth
40 mm
Weight
Standard Battery
Extended Battery

365g
395g
Environmental Characteristics
Temperature
-20° to 50°C
Fluid/Dust Protection
IP67
Shock Resistance
1.5m×60 times, 2.5m
Hardware
CPU
Qualcomm SDM660 64 bit 2.20 GHz(Octa-Core)
Memory
4GB RAM, 64GB Flash, Micro SDHC/SDXC (Upto 128GB)
Display
5.0inch WVGA Colour Liquid Crystal dot matrix display(720×1280 dots, with White LED Backlight)
Touch Screen
Dragontrail PRO(3)
User Interface
5 keys + 2 trigger keys
Camera
Rear 13MP auto focus
Front 5MP
Power
Main Battery
4020mAh Standard or 5800 Extended Lithium Ion Battery
Battery Life
Standard Battery Approx. 20 Hours
Extended Battery Approx. 29 hours
Software
Operating System
Android 10
Barcode Reader
Type
Area Imager
RFID Reader
TypeNFC
User Feedback
LED Indicator, Speaker, Vibrator
Communications
Wireless
IEEE802.11a/b/g/n/ac and MU-MIMO 2x2
Bluetooth Ver5.1+EDR/LE
-
FDD-LTE (4G), W-CDMA/UMTS/HSPA/HSPA+ (3G), Nano SIM ×2
GPS
A-GPS/GLONASS/QZSS/BeiDou/Galileo

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Denso BHT-M80
104969-4310 BHT-M80-QW Denso M80 Terminal with 2D Scanner, BT & Wifi, Standard battery (BT1) $1,969.00 C3
104969-4320 BHT-M80-QW-L Denso M80 Terminal with 2D Scanner, BT & Wifi, Large battery (BT2L) $2,002.00 C3
104969-4110 BHT-M80-QWG Denso M80 Terminal with 2D Scanner, BT & Wifi & LTE, Standard battery (BT1) $2,222.00 C3
104969-4120 BHT-M80-QWG-L Denso M80 Terminal with 2D Scanner, BT & Wifi & LTE, Large battery (BT2L) $2,244.00 C3
[B] Quick Charge Cradle (Requires USB Power Source and cable)
496400-3040 CU-M80UQ USB QUICK CHARGE CRADLE FOR BHT-M80 $220.00 C3
496371-0310 CB00-US1500/4A-4C USB CABLE FOR CHARGE & COMMUNICATION $22.00 C3
[C] Charging Cradles (Requires Power Supply and Power Cable)
496400-3050 CU-M80U USB CRADLE FOR BHT-M80 WITH BATTERY CHARGER $242.00 C3
496400-3060 CU-M80L LAN CRADLE FOR BHT-M80 WITH BATTERY CHARGER $242.00 C3
496450-1380 CH-M80-4 4 SLOT TERMINAL CHARGER FOR BHT-M80 $473.00 C3
496450-1390 CH-BT1-4 4 SLOT BATTERY CHARGER FOR BHT-M80 $352.00 C3
496460-1120 12 VOLT POWER SUPPLY $55.00 C3
2-6254-020-7 CA6254-2 Power Lead, Appliance (Fig8) $8.80 U1
[D] Accessories
Batteries (One supplied with Handheld)
496982-0060 BT1 4020mAh STANDARD BATTERY WITH COVER $154.00 C3
496982-0070 BT1L 5800mAh LARGE BATTERY WITH COVER $187.00 C3
Cables
496371-0320 CB00-US100/3-4C USB CABLE (STEREO MINI PLUG-TYPE C/140mm) $55.00 C3
Miscellaneous
496949-0080 HBBHT-M80 HAND BELT $33.00 C3
496999-3680 PNBHT-1700 STYLUS PEN $22.00 C3
