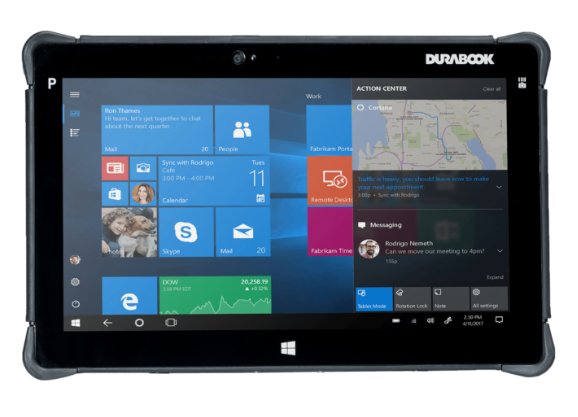

Durabook R11 Series
Rugged Tablet PC


The Durabook R11 Rugged Tablet PC is designed to maximize the efficiency of professional field workers. The Durabook R11 is only 20mm (0.78”) in height and weighs just 1.2kg (2.7lb),making it the world’s most compact tablet in the fully-rugged class. Adding to its appeal is a smooth,streamlined exterior that complements its tough image.

The Durabook R11L rugged tablet is built to meet the needs of workers in professions ranging from retail and hospitality to warehousing, logistics and field service. This tablet features a brilliant 11.6” capacitive touchscreen and high-performance, energy-smart Intel® processor for efficient use on the move. The R11L also offers an optional barcode reader, optional RFID reader, back camera, and optional smart card reader for seamless data-capture in a slim, light and durable device.

Features

  • 11.6” FHD DynaVue® SR display
  • 8th Generation Intel Core or Pentium 4000 Processor
  • Long-Life Battery up to 16 hours
  • Dedicated GPS & 4G LTE WWAN
  • Intel Wireless AC9260 & Bluetooth V5.0
  • Optional barcode, RFID & smart card reader
  • 36 Month warranty
Specifications
ModelR11R11L
Physical Characteristics
Width 299 mm
Height 192 mm
Depth 20 mm
Weight 1.2K400g
Security Kensington Lock
Environmental Characteristics
Operating Temperature -20 to 60°C
Storage Temperature -40 to 70°C
Operating Humidity 5 to 95%
Chassis Aluminium-Magnesium Alloy
Ingress Protection IP65
Drop Spec. 1.2m-26 faces, MIL-STD 810G
Electromagnetic Protection MIL-STD 461F Certified
Hazardous Environment NASI/ISA 12.12.01-2000, Class 1, Division 2
Stealth Mode Options for disabling LCD Backlight, LED's, Speakers, Camera flash and RF Devices for silent and unobtrusive operation
System Specifications
Processor Options         Intel Core i7-8650U vPro (8th Gen) 1.9GHz up to 4.2GHz processor, 8MB cache
Intel Core i7-8550U (8th Gen) 1.8GHz up to 4.0GHz processor, 8MB cache
        Intel Core i5-8350U vPro (8th Gen) 1.7GHz up to 3.6GHz processor, 6MB cache
Intel Core i5-8250U (8th Gen) 1.6GHz up to 3.4GHz processor, 6MB cache
Intel Pentium 4417U 2.3GHz processor, 2MB cache
System Memory 1 Slot 8GB upto 16GB RAM (2400MHz DDR4) 1 Slot 4GB RAM (2133MHz DDR4)
Storage 128GB SSD, Optional 256GB/512GB SSD
MicroSD Expansion Slot (SDXC)
128GB SSD
MicroSD Expansion Slot (SDXC)
Graphics Intel UHD Graphics 620 Intel HD Graphics 610
TPM 2.0
BIOS NIST BIOS Compliant
Display
Size 11.6″ FHD display with capacitive multi-touch screen
Pixels 1920 x1080
Option 1000 nits DynaVue sunlight readable
Electrical Specifications
Battery Lithium Ion, 11.1V, 3950mAh
Optional 11.1V, 7800mAh
Runtime Upto 8 Hours (Standard Battery)
Upto 16 Hours(Long Life Battery)
AC Adaptor 100-240V, 50-60Hz, 65W, DC-In Socket
Communication Specifications
Standard WiFi: 802.11a/g/n/ac
Bluetooth: Bluetooth 5.0
Optional GPS Module (UBLOX-NEO-M8N)*
4G LTE WWAN multi carrier mobile broadband*
RF Antenna pass through for GPS or WWAN
HF/LF RFID Reader
User Interfaces
Touch Screen Capacitive Multi-Touch Screen
Buttons Power, Up, Down,
Program(User defined function or for Stealth Mode),
Function (Assignable Trigger),
Windows
Additional Interfaces
Standard 2x USB 3.0 Type-A
Docking Connector (35-pin Pogo)
Audio In/Out Combo Jack
SIM Slot
Integrated Microphone and Speaker
Optional 1D/2D Barcode Reader
HF (NFC) Reader**
LF Reader**
RJ-45**
Camera 5.0 Megapixel Rear Camera with Flash, 2.0 Megapixel Front Facing Camera
Software
Operating System Windows 10 Pro, 64-bit
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Durabook R11 Series
R11 Series - Standard
R1A1A1DH_AXX R11-W R1 11.6 FHD (1920 x1080) Semi Rugged Tablet, Wireless, Bluetooth 4.0, 2MP Front & Rear Camera $3,179.00 C3
R1A1A2DE_AXX R11-LTE R1 11.6 FHD (1920 x1080) Semi Rugged Tablet, 4G LTE+GPS, Wireless, Bluetooth 4.0, 2MP Front & Rear C $3,685.00 C3
R11L Series - Light Version
R1A8D1BH_AHX R11L-W R1L11.6 FHD (1920 x1080) Semi Rugged Tablet, Wireless, Bluetooth, Barcode Scanner, Front & Rear Camera $2,783.00 C3
R1A8D1DE_AHX R11L-LTE R1L 11.6 FHD (1920 x1080) Semi Rugged Tablet, Wireless, Bluetooth 5.0, GPS + 4G LTE combo $3,520.00 C3
R11L-FIELD R11L-LTE-F R1L 11.6 FHD (1920 x1080) Sunlight Readable 1000nits touchscreen, Intel 4417U 2.3?GHz, Windows 10 Pro with 4G RAM, 128DB SSD, Wifi, BT5, GPS, 4G/LTE, 2/5MP Front/Rear Camera, IP65, includes office dock and charger $4,807.00 C3
