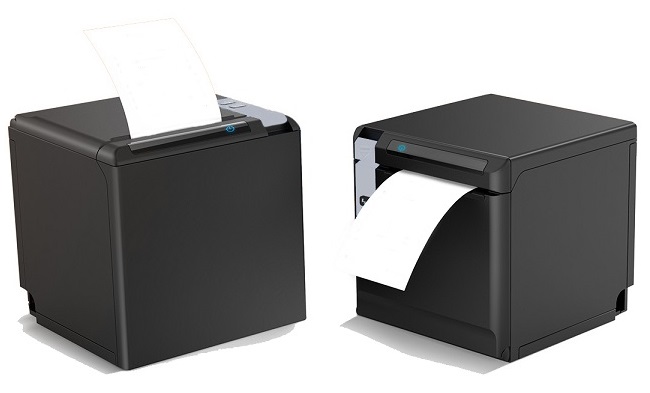

Element - RW60 Compact POS Thermal Printer


The Element RW60 3” Thermal Receipt Printer is a compact, easy to use printer ideal for small counter spaces. The flexible design, multiple connectivity options and cutter jam auto-elimination provide convenience and efficiency in the retail & hospitality environments.

Features

  • 203dpi Printhead
  • Three-in-one interface: Serial, Ethernet and USB
  • Vertical Couble Auto-cutter
  • 24 months return to base warranty

Specifications

 Physical Characteristics
Dimensions132 (h) x 135 (w) x 132 (d) mm
Weight1.37Kg
CutterFull Cut or Partial Cut
 Environmental Characteristics
Operating Temperature0°C to 45°C
Storage Temperature-20°C to 70°C
Operating Humidity25 to 85% (Non-Condensing)
Storage Humidity5 to 95% (Non-Condensing)
 Electrical Characteristics
Power Supply24 V DC/2.0A/td>
 Printing Characteristics
Print MethodDirect Thermal Line Printing
Print ResolutionStandard 203dpi (8dots/mm), Emulated 180dpi (7dots/mm)
Feed MethodFriction Feed
Print Width72 mm
FontsAlphanumeric; Simplified Chinese, Traditional Chinese; 46 International Character Sets
Print SpeedHigh Speed: 260 mm/s Max.
Paper Feed Speed260 mm/s Max. Continuous Paper Feed
 Media Specifications
Size58mm/80mm Wide, x 83 mm Diameter Max.
TypeDirect Thermal
 Interface
StandardUSB, Serial and Ethernet
OptionalUSB and BT
Cash Drawer Support2 Drawers
 Reliabiliy
Thermal Head150Km
Auto Cutter2,000,000 Cuts

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Element RW60 Compact POS Printer
RW60-005 RW60-USE-BK ELEMENT PRINTER THERMAL RW60 ETH/SER/USB BLK $341.00 C4
RW60-001 RW60-BT ELEMENT Ultra Compact Therma Printer with USB / Bluetooth - Black $275.00 C4
