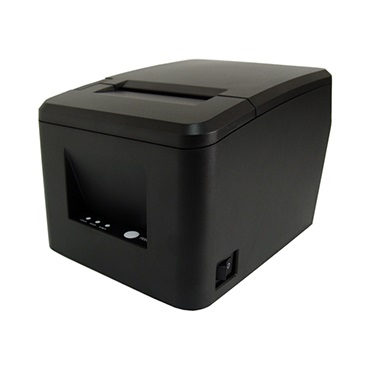

Element - RW80L POS Thermal Printer


The Element RW80L 3” Thermal Receipt Printer comes with such great features as triple interface, paper saving mode as well as the unique vertical double auto cutter, making it an ideal solution for retail & hospitality environments.

Features

  • 203dpi Printhead
  • Three-in-one interface: Serial, Ethernet and USB
  • Vertical Double Auto-cutter
  • 24 months return to base warranty

Specifications

 Physical Characteristics
Dimensions127 (h) x 141 (w) x 191 (d) mm
Weight1.5Kg
CutterPartial Cut
 Environmental Characteristics
Operating Temperature0°C to 45°C
Storage Temperature-10°C to 60°C
Operating Humidity10 to 85% (Non-Condensing)
Storage Humidity10 to 90% (Non-Condensing)
 Electrical Characteristics
Power Supply24 V DC/2.5A
 Printing Characteristics
Print MethodDirect Thermal Line Printing
Print ResolutionStandard 203dpi (8dots/mm), Emulated 180dpi (7dots/mm)
Feed MethodFriction Feed
Print Width72 mm
FontsAlphanumeric ASCII 9x 17, l2x24dots
User-defined YES
Codepage 64/48
Print SpeedHigh Speed: 230 mm/s Max.
Paper Feed Speed230 mm/s Max. Continuous Paper Feed
 Media Specifications
Size79.5 mm Wide, x 83 mm Diameter Max.
TypeDirect Thermal
 Interface
StandardUSB, Serial and Ethernet
OptionalN/A
Cash Drawer Support2 Drawers
 Reliabiliy
Thermal Head150Km
Auto Cutter1,500,000 Cuts

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Element RW80L POS Printer
RW80L-001 RW80L-USE-BK ELEMENT PRINTER THERMAL RW80L ETH/SER/USB BLK $253.00 C4
