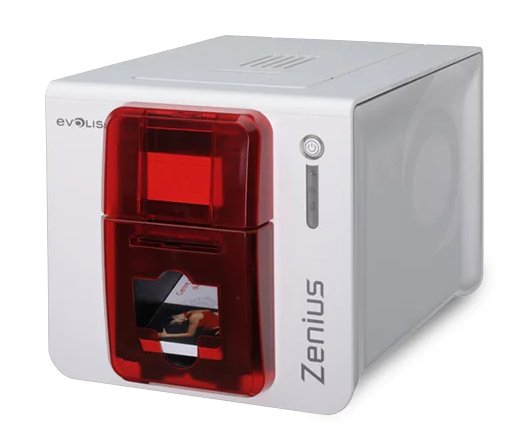

Evolis Zenius
Card Printer


The Evolis Zenius Card Printer is the one-stop solution to print high-quality single-sided cards,in monochrome or colour, and encode technology cards, in single or small runs, for a variety of applications.

With a sound level of just 46 dB (A) and its amazingly small size, Zenius can be accommodated in virtually any environment, be it a welcome desk, a sales counter, or an office desk. Zenius weighs 3.3 kg and is the lightest printer in its category.

Features

  • Black, Single colour or Multi colour printing
  • Windows Drivers Supplied
  • 300 dpi printing
  • Evolis Premium Suite software solution supplied with the Printer
  • Easy card loading
  • Optional Magnetic Stripe Encoder or Smart Card Writer
  • Optional Ethernet
  • Outstanding reliability
  • Eco-Friendly Design, Certifications and Statement of Compliance
  • Two year warranty on Printer and Printhead

Specifications

Physical Characteristics
Dimensions310 (w) x 205 (l) x 195 (h) mm
Weight3.3 Kg
Environmental Characteristics
Operating Temperature15 - 30C
Operating Humidity20 - 65% non-condensing
Operating VentalationFree Air
Storage Temperature-5 - 70C
Storage Humidity20 - 70% non-condensing
Printer Characteristics
Print methodThermal Transfer
Copy capacityOne Original, Edge to Edge
Card Specifications
TypePVC, Composite PVC, PET, ABS and Special Varnish Cards
FormatISO CR-80 - 7810 (53.98 x 85.6 mm)
Thickness0.25 to 0.76 mm
Feeder Capacity50 Cards
Output Tray Capacity20 Cards
Interfaces
StandardUSB 2.0
OptionalEthernet 10/100BaseT
Print speed
Colour120 - 150 Cards/hour
Mono400 - 500 Cards/hour
Resolution
Dots Per Inch300
Power
Adaptor Input100 - 240V/AC
Adaptor Output24VDC +/- 10%, 3A
Software
DriversSupports Windows XP SP2 or later; Vista 32/64, W7 32/64
ApplicationEvolis Premium Suite for Windows
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Evolis Zenius Classic USB Starter Package
E ZNCLA E ZNCLA Evolis Zenius USB Starter Package, Inclues 1 colour ribbon, 50 blank white cards, CardPresso XXS , starter cleaning kit $2,079.00 A
Includes 1 Colour ribbon (200 prints), 50 Blank White Cards, Starter Clean Kit.
[B] Cards
9-5090-401-4 C4001 Blank Cards 0.76mm, 5 x 100 cards $198.00 E
9-5090-402-1 C4002 Blank Cards 0.50mm, pk500 $176.00 C
9-5090-403-8 C4003 Blank Cards 0.76mm with HICO Mag Stripe, 5x100 cards $211.37 10%
9-5090-404-5 C4004 Blank Cards 0.76mm with LOCO Mag Stripe, 5x100 Cards $202.74 10%
[C] Consumables
R5F002SAA R5F002SAA Zenius/Primacy 5 Panel Color Ribbon - YMCKO - 200 cards/roll $146.66 10%
[D] Software
CP1015 CP1015 CardPresso Upgrade, XXS to XM $1,833.33 10%
