Feig - PRH101 i-scan-HF
HF RFID Reader

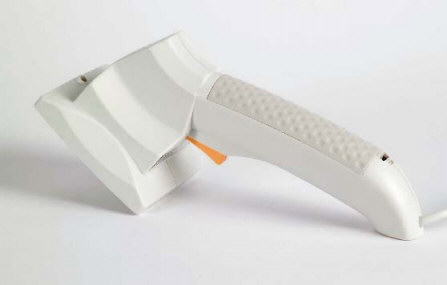

The Feig PRH101 i-scan-HF is a hand held HF RFID reader that provides a simple means for reading and collecting RFID tag data from single or multiple HF RFID tags either on demand or in continuous read mode.

USB interface is standard with options of RS2232 and Bluetooth are available.

The USB interface can be configured to operate as a HID device, which enables the RFID data to be entered directly as a keyboard input, thus enabling easy integration to existing applications software, with out any software changes.

Features

  • Stylish, lightweight, ergonomic
  • Single button operation
  • Compatible with ISO15693 and ISO18000-3 Tags
  • Full read/write functionality for compatible tags
  • Anti Collision Function
  • Scan and Polling Modes
  • USB Interface (Options of RS232 and Bluetooth available)
  • LED and Buzzer status

Specifications

Physical Characteristics
Dimensions100 mm (h) x 80 mm (w) x 230 mm (l)
Weight320 grams
HousingLightweight, Ergonomic
Environmental Characteristics
Operating/Storage Temperature0 to 50 °C Operating
-20 to 70 °C Storage
Enclosure ratingIP 30
Radio Characteristics
Frequency13.56 MHz
StandardISO 15693, ISO 18000-3
Communication Characteristics
Data InterfacesUSB(12Mbit),RS232
Transmit Power0.5W ± 2dB
Read RangeUpto 180mm(Dependent on Tag)
IndicatorsMulticolour LED, Buzzer
Power Characteristics
Voltage5VDC ± 0.2V
Operating Currentmax. 0.5A
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] Feig OBID i-scanHF PRH101
9-4410-040-8 ID.ISC.PRH101-USB Feig HF RFID Hand Held Reader with USB Interface $913.00 C3
