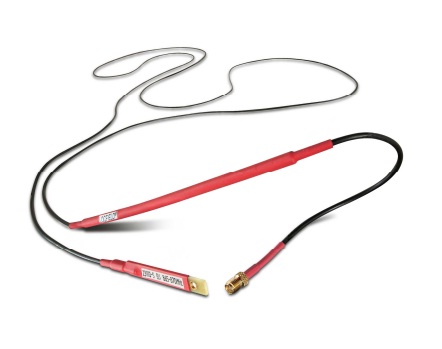

Harting Ha-Vis LOCFIELD
UHF RFID Cable Antenna


The Ha-VIS LOCFIELD changes everything. Instead of installing patch antennas, the coax antenna cable itself becomes the antenna. The read range can be varied from a few centimeters to about 2 m just by changing the power of the RFID reader. The LOCFIELD antenna can easily be installed in anyshape which serves the project in the best possible way.

Applications

  • Tool identification in machines
  • Door and window pass-throughs
  • Wireless sensor networks
  • Smart shelf

Specifications

  Mechanical
Dimensions Short: 300mm (active length), total length 60mm, diameter 3 mm
Medium: 1m (active length), total length 1.5m, diameter 3 mm
Long: 2m (active length), total length 3m, diameter 5 mm
  Environmental
Temperature -20 to 65°C(Operating)
-40 to 85°C(Storage)
Enclosure Rating IP 65
  Antenna Characteristics
Frequency 902-928 MHz (Australia)
VSWR 1.8:1
Polarization Linear
Gain -7dBi
Read Angle 360°
Impedance 50 ohms
RF Connector SMA Female (Jack)
Power Rating 7 W



Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Harting Ha-Vis LOCFIELD Antenna's
2093.610.1200.30 LOCFIELD-3 Ha-VIS LOCFIELD RFID Antenna Cable: 0.3m Active Length, 0.6m total, 3mm diam $374.00 C3
2093.610.1200.20 LOCFIELD-3 Ha-VIS LOCFIELD RFID Antenna Cable: 1m Active Length, 1.5m total, 3mm diam $385.00 C3
2093.610.2200.10 LOCFIELD-5 Ha-VIS LOCFIELD RFID Antenna Cable: 2m Active Length, 3m total, Low Loss Cable, 5mm diam $605.00 C3
