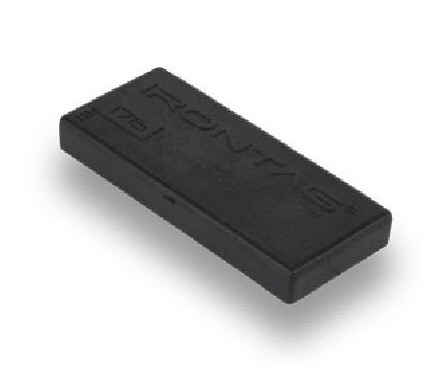

HID - Iron Tag
UHF RFID Tag
 |
HID Global’s IronTag UHF transponders deliver exceptional performance on metal surfaces and they are built to withstand vibration, shock, chemical exposure and fluctuating temperatures. The transponders enable RFID tagging of metal equipment and components that are subject to severe conditions. Compact and powerful, these tags offer robust performance with read ranges up to 4 m. The 512-bit user memory and 96-bit EPC number are configurable to accommodate longer EPC codes. In addition, the tags offer anti-collision functionality, fast data rate communication, and optional password protection for added security. The durable IronTag's mount to any metal surface with industrial glues or optional high-temperature stickers, making them ideal for logistics applications that track metal components through assembly, operation, maintenance and repair. The IronTag design meets or exceeds standards for the most demanding industries, including aircraft manufacturing and fleet management. It is also the ideal tag for metallic asset tracking applications where a small form factor and durability are vital. Features
|
|---|
Specifications
| Physical Characteristics | |||
|---|---|---|---|
| Dimensions | 53 mm x 23 mm x 7 mm | ||
| Weight | 14.7g | ||
| Housing Material | PPA, Polyphthalamide, (ISO PA6T/6I) | ||
| Colour | Black | ||
| Mounting Method | Glue, optional sticker | ||
| Environmental Characteristics | |||
| Operating Temperature | -40°C to +85°C | ||
| Storage Temperature | -40°C to +90°C | ||
| Peak Thermal Resistance | 180°C, 400 Hours | ||
| Flame Resistance | UL 94 HB according to ISO 1210 | ||
| Ingress Protection | IP68 (20°C, Water Immersion for 24 Hours to 1m) | ||
| Chemical Resistance | Fuel B, mineral oil, petroleum, salt mist, vegetable oil; UV (ISO 4892-2) | ||
| Mechanical Resistance | Vibration: IEC 68.2.6 (10g, 10…2000Hz, 3 axis, 2.5h) Shock: IEC 68.2.29 (40g, 18ms, 6 axis, 2000 times) Axial / Radial Force: 800 N / 500 N, 10 sec | ||
| Communication Characteristics | |||
| Operating Frequency | 902 MHz - 928 MHz | ||
| Chip Type | Higgs 3 | ||
| Read Distance | Up to 4 m on metal | ||
| Chip Features | |||
| Data Rate | Upto 640 kbits/s | ||
| Memory | 512 bit user memory, 96 bit EPC, 64 bit TID | ||
| Anti Collision | Yes | ||
| ISO Compliance | EPC Global Class 1 Gen 2 | ||
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] HID - In Tag 500 series | ||||
| 698902-010 | ||||
