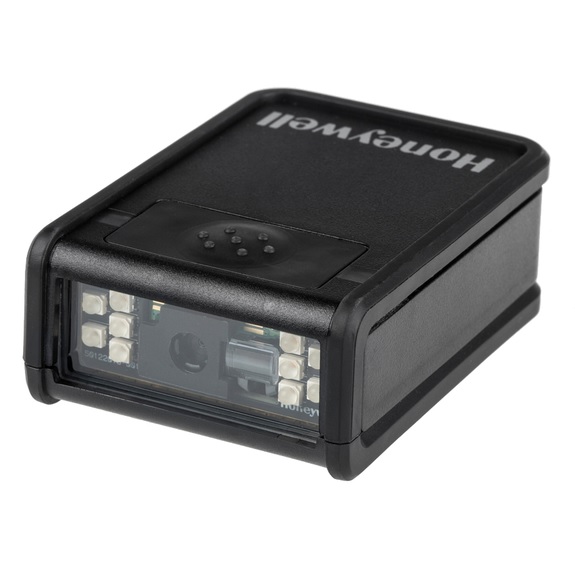

Honeywell - Vuquest 3320g
Presentation Barcode Reader


The Honeywell Vuquest 3320g compact area-imaging scanner is an aggressive scanner of 1D, PDF and 2D barcodes in a lightweight, durable and portable form factor. The scanner’s sleek and elegant design also blends seamlessly into retail environments.

Designed with the customer in mind, the unobtrusive illumination contained within the 3310g reduces the annoying after-effects commonly associated with the illumination used in imaging-based scanners.

The ability to control the triggering of an external device such as a beeper, photo eye or illumination via external I/O capabilities allows the Vuquest to enter new markets once reserved for expensive industrial products.

The 3320g is small enough to be held in the palm or worn on the back of the hand. Its compact size also allows it be mounted anywhere, including self-service scanning kiosks.

Features

  • Aggressive Pass-Through Scanning
  • Intelligent Multi-Interface Design
  • External Triggering Options
  • Mobile Phone Screen Barcode Reading
  • 24 month Return to Base Warranty

Specifications

Mechanical
Dimensions 51mm W x 26mm H x 73mm D
Weight 77 g
Environmental
Operating Temp. -20 to 50° C
Storage Temp. -20 to 70° C
Relative Humidity 5% to 95% (non-condensing)
Environmental IP53
Electrical
Voltage Range 5.0 VDC ±0.25V
Operating Current (nominal) 450mA Operating, 90mA Standby
Optical
Scan Pattern Area Image (838 x 640 pixel array)
Pitch ±45°
Skew ±65°
Light Source Visible Red LED's, 645nm ± 7.5nm
Ambient Light 100,000 lux (9,290 foot-candles)
Print Contrast Ratio 20% minimim reflective difference
Focal Point 127mm
Symbologies Decoded
Reads standard 1D, PDF, 2D and Postal Symbologies
(OCR Option Available)
Communications
Interfaces Supported Host: USB, RS232, Keyboard wedge

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Honeywell 3320g Scanner Kit
3320G-2USB-0 HONEYWELL VUQUEST 3320G 2D USB KIT BLACK $891.00 C3
3320G-4USB-0 HONEYWELL VUQUEST 3320G 2D USB WHI KIT $770.00 C3
[B] Honeywell 3310g Scanner(Head Only - requires cable and Maybe PSU)
3320G-4 HONEYWELL VUQUEST 3320G 2D SCANNER ONLY $748.00 C3
[C] Cables
52-52559-N-3-FR HONEYWELL CABLE MS3310G/3320G USB A STR POT BLK $33.00 C2
52-52562-3-FR HONEYWELL CABLE RS232 5V DB9 STR 2.9M 3310/3320 $44.00 C2
[D] Power Supply
46-00528 HONEYWELL PSU 5.2V 1A 1200/1470/1950/7120/9590 ETC $77.00 C2
[E] Software Licences
SW-EIO-33XX
SW-OCR-33XX
[F] Extended Warranty
SVC3320G-SG3N HONEYWELL EDGE SERVICE GOLD VUQUEST 5D 3Y $77.00 V
SVC3320G-SG5N HONEYWELL EDGE SERVICE GOLD VUQUEST 5D 5Y $132.00 V
SVC3320G-SG1R
SVCREPLACE-SCN3 HONEYWELL EDGE SERVICE ADDON SCANNER REPLACE 3Y $44.00 V
SVCREPLACE-SCN5 HONEYWELL EDGE SERVICE ADDON SCANNER REPLACE 5Y $77.00 V
