Honeywell - CF4680 2D Customer Facing Module
Bar Code Reader - OEM Engine

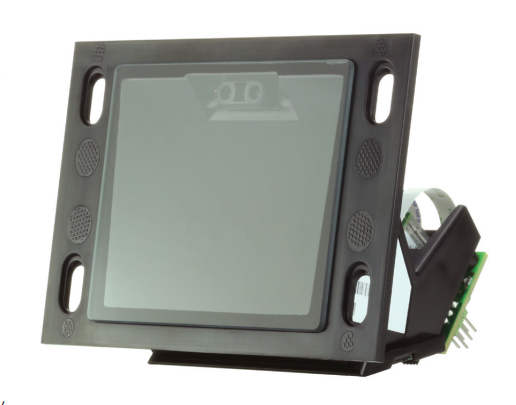

The Honeywell CF4680 2D Imager Module for Customer-Facing Designs provides a complete, self-contained 1D and 2D barcode scanning solution, whether decoding mobile phone screens or paper. Designed for easy integration, its all-in-one, easy-to-mount form factor simplifies integrationinto your fixed mount enclosure. Honeywell’s CF4680 2D Imager Module can help you expedite product design and reduce the total cost of your products.

Designed to be quickly and easily mounted, the CF4680 2D Imager Module comes out of the box with its decoded 2D optics, housing, exit window, beeper, USB interface board and mounting holes,minimizing adjustments and the need to purchase additional components when installing the device. The USB interface board allows the ability to use a standard USB cable, eliminating the installer’s need to purchase a custom cable to connect the barcode scanner to the kiosk for power and communication. This simplifies installation and helps to reduce the total cost of ownership.

The exit window is constructed of scratch-resistant tempered glass, providing enhanced durability when compared with imager modules that are constructed of polycarbonate plastic.

The CF4680 2D Imager Module operates with white LED illumination which is deflected from the end-user’s direct line of sight via a mirror, eliminating a blinding light.

The CF4680 2D Imager Module offers contact or close-to-contact scanning operation so that the end-user can more easily and more effectively read any standard 1D or 2D barcode by simply approaching or touching the built-in exit window with their mobile phone screen, coupon, loyalty card or ticket.

Utilizing the latest Honeywell decoding technology, the CF4680 2D Imager Module is designed for use in global customer-facing OEM applications such as self-service kiosks, access control at stadiums, events, public transportation facilities, vending machines, gaming equipment and fast food self-ordering kiosks.

Features

  • Omni-directional bar code reading
  • Designed to be mounted
  • Supports all common 1D & 2D barcodes
  • Deflected LED Illumination
  • Standard USB 2.0 Interface
  • Reliable solid state technology with low power consumption
  • Ideal for integrating into equipment requiring barcode capability
  • Selectable read distance

Specifications

Mechanical
Dimensions 90.6 mm (h) x 105 mm (d) x 75 mm (w)
Weight 50g
Environmental
Operating Temp. -30 to 60°C
Storage Temp. -40 to 85°C
Relative Humidity 0% to 95%(non-condensing, at 60°C)
Vibration 1 G acceleration (500 Hz to 2,000 Hz)/td>
Shock 18 shocks of 2.5 kG for 0.4 ms at 23°C
Electrical
Voltage 5.0 VDC ± 5%
Operating Current 216 mA while scanning
Hibernate Current 78 mA at idle, 2.5mA suspend
Optical
Scan Rate Upto 120 frames per second, global shutter
Optical Resolution 640 (H) x 480 (V) pixels
Scan Angle Tilt: 360°, Pitch: ± 50°, Skew: ± 50°
Print Contrast Ratio 20% (minimum)
Motion Tolerance 2 ms/Max
Illumination white LED
Aimer Red Dot LED
Distance Selection 3 position switch: 0 cm to 100 mm, 0 cm to 200 mm, 0 cm to 300 mm
Scan Window Options 1.9mm or 3.9mm Thick Tempered, Scratch Resistance Glass
Communications
Interface USB HID Keyboard, or USB Serial
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Honeywell CF4680 OEM Scan Engine
CF4680SR-W1-USB
CF4680SR-W2-USB
[B] Spares
CF3680-EW10 Replacement Window, 10pk
[C] Support
Engineering support is available on this product including interfacing. Contact UMD for details.
