Honeywell - CM Series 2D Imager Modules
Bar Code Reader - OEM Engines


Honeywell’s CM Series Compact 2D Imager Module provides a self-contained 1D and 2D barcode scanning solution, whether decoding mobile phone screens or paper. Each module is an all-in-one, easy-to-mount design simplifying integration into your fixed mount enclosure. A selection of optics allow you to meet the performance requirements your application requires.

• CM4680SR-XXX: Standard Performance (Standard Range)
• CM5680SR-XXX: Enhanced Performance (Standard Range)
• CM5680WA-XXX: Specialized Performance (Wide Angle)
• CM2180MP-XXX: Specialized Performance (Megapixel)

The CM Series offers many differentiating features that simplify installation (e.g., cable connector compatibility, more mounting options) and enhanced performance (e.g., Wide Angle and Megapixel optics options, wider choice of non-laser aimers and illumination, enhanced scan time andprint contrast, higher operating temperature range).

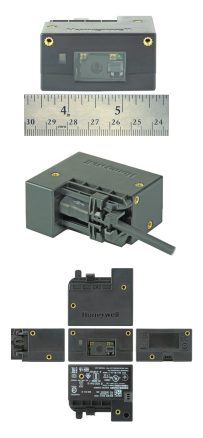

The unique design simplifies installation and deployment with it's compact size, a cable connector that extends off the side of the device instead of the back, reducing the depth of the product, which simplifies installation. A slider bracket which holds the micro-USB cable securely in place so it does not become disconnected easily.

Features

  • Omni-directional bar code reading
  • Designed to be mounted with five pairs of mounting holes
  • Supports all common 1D & 2D barcodes
  • Recessed Micro-USB connector socket
  • Reliable solid state technology with low power consumption
  • Ideal for integrating into equipment requiring barcode capability

Specifications

ModelCM4680SRCM5680SRCM5680WACM2180MP
Mechanical
Dimensions 55 mm (w) x 48 mm (d) x 28 mm (h)
Weight 50g 54g 54g 52g
Environmental
Operating Temp. -30 to 60°C
Storage Temp. -40 to 85°C -40 to 70°C
Relative Humidity 5% to 95%(non-condensing)
Vibration Random vibration, 5 G, from 22 Hz to 300 Hz, 2 hr/3 axes
Shock Operational after 10 drops at 1.5 m to concrete
Light Level 0 lux to 100,000 lux (0 to 9290 foot candles)
MTBF 100,000 hours
ESD Tolerance Direct discharge: ±8 kV, Air discharge: ±15 kV
Ingress Protection IP54
Electrical
Voltage 5.0 VDC ± 5%
Average Operating Current 220mA 400mA 400mA 250mA
Idle Current 110mA 100mA 100mA 80mA
Optical
Shutter Style Global Shutter Rolling Shutter
Optical Resolution 640 (H) x 480 (V) pixels 844 (H) x 640 (V) pixels 1280 (H) x 800 (V) pixels
Window Scan Angle
Horizontal:
Vertical:

40°
30°

42°
33°

68°
54°

48°
31°
Skew 50° 65° 70° 75°
Pitch 50° 45° 55°
Print Contrast Ratio 20% (minimum)
Motion Tolerance 6 ms/Max 5.84 ms/Max 100 mms/Max
Illumination White LED Red LED (624nm)/White LED Red LED (624nm) Red LED (617nm)
Aimer Red Dot LED (640nm) Green Line LED (528nm) No Aimer
Read Range
(Dependant on barcode)
33mm to 742mm 18mm to 445mm 10mm to 264mm 45mm to 570mm
Communications
Interface USB 2.0, Micro-B, HID Keyboard or USB Serial Port Profiles)
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Honeywell CM4680 OEM Scan Engine
CM4680SR-BW0 N4680 Honywell Compact Module, 2D Barcode Scanner with White LED $674.30 A
[B] Honeywell CM5680SR OEM Scan Engine
CM5680SR-BR0
[C] Honeywell CM5680WA OEM Scan Engine
CM5680WA-BR0
[D] Honeywell CM2180MP OEM Scan Engine
CM2180MP-BR0
[E] Support
Engineering support is available on this product including interfacing. Contact UMD for details.
