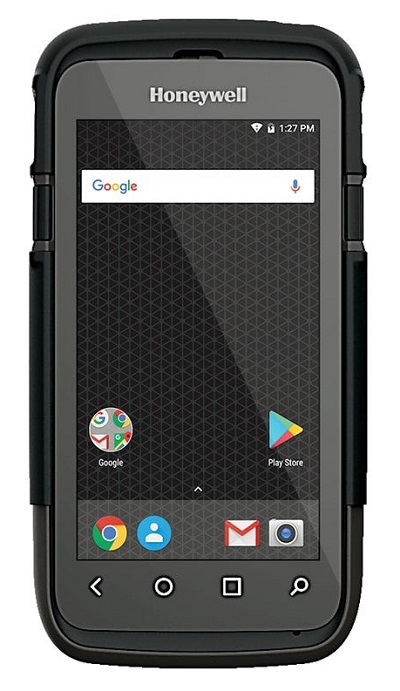

Honeywell Dolphin CT60XP
Hand Held PC


The CT60 XP is designed for highly mobile, frontline workers and managers in scan intensive workflows who need secure mobile data collection and processing. The CT60 XP is part of the CT60 product family which is the main offering for the touch-only rugged mobile computers in the Honeywell portfolio. Built on the Mobility Edge platform with enhanced ruggedness, it delivers best-in-class total cost of ownership while offering a secure and longest lifecycle for the Android system. The CT60 XP comes optionally with the technologically-advanced FlexRange imager which has scan performance in the most compact form factor in its class.

Built on the Mobility Edge platform, the CT60XP has received a prestigious STIG (Security Technical Implementation Guide) designation from the Defense Information Systems Agency (DISA) for its security capabilities. This recognition from DISA and the U.S. Department of Defense acknowledges the advanced security applications and tools the CT60XP encompasses, ensuring your data is kept safe and secure throughout the life of the device. The common hardware platform and enterprise lifecycle tools drive an integrated, repeatable, scalable approach for accelerated and secure development, deployment, performance management and lifecycle management.Support for five Android generations starting with Android 9 (P). Additionally, customers using Windows-based operating systems can migrate to Android without sacrificing reliability, performance or management features.

The CT60XP mobile computer is the first enterprise-grade device with LTE-Advanced and carrier aggregation for speeds up to 300 Mbps, providing better network coverage, speed, anytime, anywhere connectivity and device longevity. The CT60XP optionally includes the feature rich, "FlexRange" long-range image capture technology with breakthrough scan performance and best-in-class compact package. An optional scan handle is available for the flexibility to switch between handheld and pistol grip operations, reducing user fatigue.

Sleek, lightweight and rugged the CT60XP fits easily into a pocket. IP65 and IP68 ratings against dust/water spray: can withstand multiple 2.4 m (8 ft) drops to concrete and 2,000 1.0 m (3.3 ft) tumbles.

Features

  • Qualcomm Snapdragon Octa-core CPU
  • Rugged Form Factor in a Sleek Lightweight Design
  • Common Mobility Edge hardware platform and enterprise lifecycle tools
  • SR, HD and FlexRange Barcode Reader Options
  • Available in a Disinfectant-Ready Housing Option
  • Smart Battery Technology for full shift Operation
  • Warm Swap Battery
  • 12 Month Warranty with extended Support Options

Specifications

Physical Characteristics
Dimensions
161 (l) x 81(w) x 20.5(d) mm
Weight
360g
Environmental Characteristics
Operating Temperature
-20 to 50C
Storage Temperature
-30C to 70C
Humidity
0 to 95% (Non-Condensing)
Drop Protection
2.4 m (8 ft) to concrete at operating temperature, as per MIL-STD 810G;
2.4 m (8 ft) to concrete at 0-50C, as per MIL-STD 810H for disinfectant-ready housing;
Tumble
Exceeds 2,000 (1.0m) tumbles per IEC 60068-2-32 specifcation
ESD
8kV Direct, 15kV Air
Environmental Protection
Independently certified to meet IP68 and IP65 standards for moisture and particle intrusion
Hardware
Processor
2.2GHz Qualcomm Snapdragon 660 Octa-core
Display
118 mm (4.7 in), 1280 720 High Definition Bright Colour, Multi-touch Capacitive Touchscreen with Gorilla Glass Covering
Keys
Volume up/down key, left/right scan, power, Soft touch keys (Back, Home, Menu, Search)
Memory
4 GB DDR4 RAM, 32 GB Flash, micro SD slot (For upto 512GB memory card)
Power
3.6V 4Ah LiIon Main Battery with integrated battery diagnostics, warm battery swap capability, allowing up to 1 minute to change the battery
Run Time
12 Hours
Radio's
WWAN: 4G Radio (ATT/VZW/SPRINT/TMO/NA/EU) with two micro-SIM slots
LTE Advanced Support with Up to 400 Mbps CAT13 LTE downlink, Up to 75 Mbps CAT5 LTE uplink
LTE (FDD) Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 19, 20, 25, 26, 28, 29
LTE (TDD) Bands 38, 39, 40, 41
UMTS/HSPA+ (3G) Bands 1, 2, 4, 5, 6, 8, 9, 19
GSM/GPRS/EDGE Quad-Band (850/900/1800/1900 MHz)
1xRTT/EV-DO Bands BC0, BC1, BC10 (B26 BW)
WLAN: EEE 802.11 a/b/g/n/ac radio, Security: OPEN, WEP, WPA/WPA2 (Personal and Enterprise)
NFC
Bluetooth: V5.0 Bluetooth and BLE Supported
Camera
13-megapixel colour camera, 4K video with image stabilization, and advanced software features for enhanced exposure control
Barcode Option
Honeywell N6703SR Imager, N6703HD Imager or N6803 "FlexRange" Imager
Indicators
RGB LED, Vibrator
Sensors
Ambient light sensor, proximity sensor, accelerometer, gyroscope, magnetometer, pressure sensor
Operating Environment
Operating System Options
Android 9.0
Support for Android 10 and 11
System compatibility through to Android 13, pending feasibility
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Honeywell CT60XP WiFi Only Hand Held Computer
CT60-L0N-BDP210E
CT60-L0N-BFP210E HONEYWELL PDT CT60XP 2D-FLEX 4/32 AD/GMS $3,905.00 A
CT60-L0N-BRP210E HONEYWELL PDT CT60XP 2D-N6703 4/32 AD/GMS $3,553.00 A
CT60-L0N-BFP21DE
[B] Honeywell CT60XP WiFi and 4G Hand Held Computer
CT60-L1N-BDP210E
CT60-L1N-BFP210A
CT60-L1N-BFP210E
CT60-L1N-BFP211E HONEYWELL PDT CT60XP 2D-FLEX 4/32 4G AD/GMS ATEX $3,993.00 A
CT60-L1N-BFP21DE HONEYWELL PDT CT60XP DRH 2D-FLEX 4/32 4G AD/GMS $3,872.00 A
CT60-L1N-BRP210E
CT60-L1N-BRP21DE HONEYWELL PDT CT60XP DRH 2D-SR 4/32 4G AD/GMS $3,707.00 A
CT60XP is compatible with CT50 accessories
[C] Charging/Cradle Options
Portable Snap on Cup
CT50-USB HONEYWELL SNAP-ON ADP USB PSU/REQ CT50/CT60/CT60XP $187.00 A
213-029-001 HONEYWELL CT50/CT60/CN80 AC PWR ADPT KIT & USB CBL $132.00 A
Singe Bay Charging Kit
CT50-HB-0-R HONEYWELL DOCK DESK KIT 1-BAY CT50/CT60 $451.00 A
CT50-EB-0-R HONEYWELL DOCK DESK KIT ETHERNET 1-BAY CT50/CT60 $627.00 A
321-576-004
2-5199-020-0 CA199-2 IEC Power C13 to AU 3 pin Plug - 2m $9.26 U1
Quad Bay Charging Kit
CT50-CB-0 HONEYWELL MULTIDOCK KIT 4-BAY CHARGE CT60 $781.00 A
CT50-MB-0 HONEYWELL DOCK VEHICLE HW USB REQ CABLES CT60 $627.00 A
2-5199-020-0 CA199-2 IEC Power C13 to AU 3 pin Plug - 2m $9.26 U1
[D] Vehicle Cradle/Charging Options
Vehicle Installation Option 1 - Snap On to Cigarette Lighter Plug
CT50-MC HONEYWELL SNAP-ON ADP AUTO PWR CT50/CT60/CT60XP $253.00 A
Vehicle Installation Option 2 - Cradle to Cigarette Lighter Plug
CT50-MB-1-XP HONEYWELL DOCK VEHICL AUTO DIRECT CT50/CT60/CT60XP $627.00 A
RAM-B-166-202U Twist-Lock Suction Round Plate Standard Arm $23.10 A
Vehicle Installation Option 3 - Fixed Installation direct to Battery
CT50-MB-0 HONEYWELL DOCK VEHICLE HW USB REQ CABLES CT60 $627.00 A
226-109-003 HONEYWELL CABLE POWER DC DOCK VEHICLE $99.00 A
805-611-001 HONEYWELL MOUNTING KIT FOR VEHICLE DOCK $297.00 A
Vehicle Installation Option 4a - Fixed with 6 to 60V DC/DC converter
CT50-MB-0 HONEYWELL DOCK VEHICLE HW USB REQ CABLES CT60 $627.00 A
203-808-001
805-611-001 HONEYWELL MOUNTING KIT FOR VEHICLE DOCK $297.00 A
Vehicle Installation Option 4b - Fixed with 6 to 96V DC/DC converter
CT50-MB-0 HONEYWELL DOCK VEHICLE HW USB REQ CABLES CT60 $627.00 A
203-809-001
805-611-001 HONEYWELL MOUNTING KIT FOR VEHICLE DOCK $297.00 A
Other Docks
[E] Accessories
CT60-XP-SCH-DR HONEYWELL SCAN HANDLE CT60XP DR $330.00 A
CT50-SCH HONEYWELL SCAN HANDLE CT50/CT60 $286.00 A
213-048-001 HONEYWELL STYLUS CT40/CT50/CT60 5PK $88.00 A
213-049-003 HONEYWELL HANDSTRAP ADJUSTABLE CT50/CT60 3PK $55.00 A
346-087-001 HONEYWELL SCREEN PROTECTOR CT50/CT60/CT60XP $33.00 A
825-237-001
825-238-001 HONEYWELL HOLSTER BELT CT40/CT60 $110.00 A
[F] Batteries and Chargers
CT50-QBC-0-R HONEYWELL MULTIDOCK KIT 4-BAY BATTERY CT50/CT60 $451.00 A
2-5199-020-0 CA199-2 IEC Power C13 to AU 3 pin Plug - 2m $9.26 U1
Replacement Batteries
318-055-012 HONEYWELL BATTERY STANDARD 4020MAH CT50/CT60 $187.00 A
318-055-013 HONEYWELL BATTERY STANDARD 4020MAH CT60 ATEX $187.00 A
318-055-018
318-055-019 HONEYWELL BATTERY 4020MAH CT60XP ATEX $187.00 A
[G] Extended Maintenance Support Options
SVCCT60-SG3N HONEYWELL EDGE SERVICE GOLD CT60 5D 3Y $462.00 A
SVCCT60-SG5N HONEYWELL EDGE SERVICE GOLD CT60 5D 5Y $792.00 A
SVCCT60-SP3N HONEYWELL EDGE SERVICE PLAT CT60 2D 3Y $1,078.00 A
SVCCT60-SP5N HONEYWELL EDGE SERVICE PLAT CT60 2D 5Y $1,980.00 A
Add-Ons for Extended Maintenance Support
SVCACC-MOB3 HONEYWELL EDGE SERVICE ADDON MOBILE ACCESSORY 3Y $264.00 A
SVCACC-MOB5 HONEYWELL EDGE SERVICE ADDON MOBILE ACCESSORY 5Y $440.00 A
SVCREPLACE-MOB3 HONEYWELL EDGE SERVICE ADDON MOBILE REPLACE 3Y $143.00 A
SVCREPLACE-MOB5 HONEYWELL EDGE SERVICE ADDON MOBILE REPLACE 5Y $253.00 A
