Honeywell - Genesis XP 7680g
Presentation Bar Code Reader

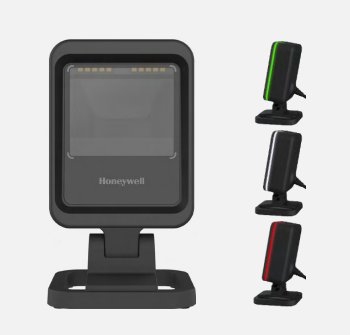

The Honeywell Genesis XP 7680g is a hands-free presentation scanner that delivers an impactful customer experience while increasing business productivity. The Genesis XP includes extreme performance “XP” scanning technology in a flexible design that fits multiple workflows. The compact, modern design features clean lines and warm, white illumination and a small footprint ideal for contemporary retail environments.

Compared to previous products, the Genesis XP scanning speed is 20% faster with a larger scanning area. Honeywell’s field proven XP technology handles poorly printed and damaged barcodes with ease. Featuring a full 1 mega-pixel imager and fast processor, the Genesis XP reads barcodes fast and handles a high level of motion tolerance resulting in fewer repeat scans, keeping employees productive and efficient.

The compact design requires minimal counter space, and its modern design fits easily into contemporary retail. The 360 colour LED ring highlights the scanning target area and provides clear feedback, offering an intuitive experience for both employees and customers. As scanning is easy to perform, this creates a pleasing user experience; a key element for delightful customer engagement. The warm, white light illumination is more pleasing to the eye, and automatic object detections turns the illumination completely off between scans, so the scanner is not a distraction.

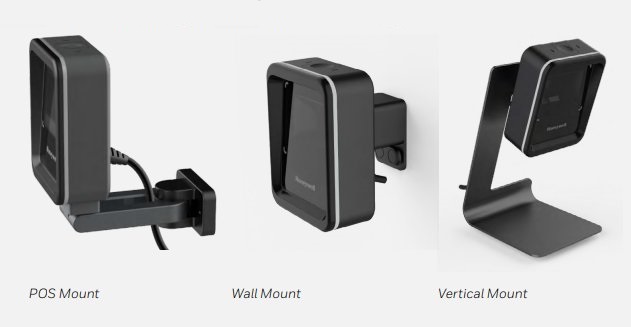

The Genesis XP was designed with flexibility in mind allowing it to easily adapt to the workflows of today and tomorrow. In addition to the standard adjustable compact stand, smart placement accessories are available for the Genesis XP. These new mounting accessories support wall mount, point-of-sale mount, and downward facing installations, allowing the product to be placed almost anywhere. A top mounted button is ideally placed for triggered, handheld scanning applications. A built-in auxiliary expansion port will support future smart accessories, adapting to future needs and requirements.

Feature Summary

  • Compact, lightweight and rugged
  • 1 Mega Pixel Area Imager
  • 20% Faster Scanning
  • Intuitive Colour LED Ring
  • Warm White Light Illumination
  • Automatic Object Detection
  • Top Mount Button
  • Flexible Mounting Accessories Available
  • Kiosk Ready Rear Mounting
  • 3 Year Factory RTB Warranty

Specifications

Mechanical
Dimensions 80mm D x 40mm W x 105mm H
145mm High with Stand
Weight 340g
Environmental
Operating Temp. 0 to 50° C
Storage Temp. -40 to 70° C
Relative Humidity 0% to 95% (non-condensing)
Shock 50 x 150cm (5ft) drops
1000 x 50cm tumbles
Environmental Sealing IP52
Electrical
Power Input 5.0V/DC
Operating Current 500 mA @ 5V (2.5W)
Optical
Motion Tolerance Upto 4m/sec.
Pitch ±65°
Skew ±65°
Light Levels 100,000 Lux
Print Contrast Ratio 20% minimim reflective difference
Scan Element 1280 x 800 pixel Area Imager
Symbologies Decoded Standard 1D, PDF, 2D, Dotcode Symbologies
Communications
Host System Interfaces USB, RS232, Keyboard Wedge, IBM 46xx (RS485)
Auxiliary Pin Connector for future expandability

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Honeywell Genesis XP 7680 Presentation Scanner (USB Kit)
7680GSR-2USB-1-A HONEYWELL GENESIS XP 7680G 2D USB STD BLK KIT $495.00 A
[B] Honeywell Genesis XP 7680 (Scanner Only - cable sold separately)
7680GSR-2-1-A #N/A #N/A A
7680GSR-2-A #N/A #N/A A
[C] Accessories - Stands
STND-02F07-016-01 HONEYWELL GENESIS 7680G FLEX POS MOUNT $110.00 A
STND-07R07-016-01 HONEYWELL GENESIS 7680G WALL MOUNT FIXED $77.00 A
STND-18R06-016-01 HONEYWELL GENESIS 7680G VERTICAL STAND $110.00 A
STND-04R06-016-21 HONEYWELL STAND FOR GENESIS XP 7680G $55.00 A
[D] Accessories - Cables
CBL-500-300-S00 HONEYWELL CABLE 1200/1300/1900 USB A STR 3M BLK $44.00 A
CBL-500-300-S00-09 HONEYWELL CABLE GENESIS XP 7680G USB 3M $44.00 A
CBL-503-300-S00
CBL-020-300-C00 HONEYWELL CABLE SCANNER RS232 5V 3M CLD BLK $44.00 A
CBL-020-300-S00-09 HONEYWELL CABLE GENESIS XP 7680G RS232 3M $44.00 A
[E] Accessories - Power
50129395-002
50130786-001
