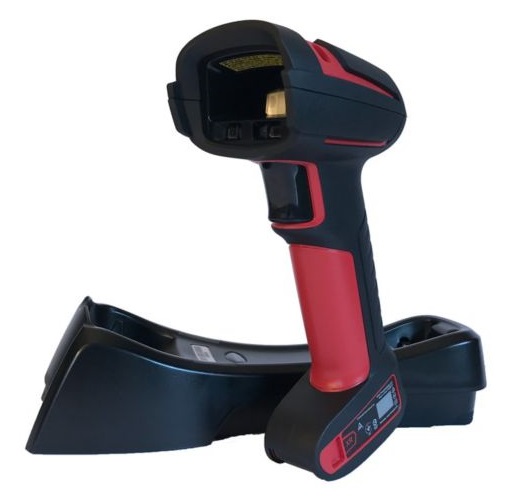

Honeywell - Granit XP 1991iXR
Wireless Handheld 2D Barcode Reader


The Honeywell Granit XP scanners have expanded the capabilities and redefined ultra rugged barcode reading.

With an ultra-rugged 3 meter (10 foot) drop, Granit™ XP is engineered to keep on working after the impact of drops from loading docks, forklifts and picking trucks.

The 1 meter (3.3 foot) tumble test indicates lasting durability with daily knocks and drops from workstations or waist height. A gruelling 7,000 tumble specification ensures Granit scanners are ready to work long-term in demanding environments. With Honeywell FlexRange technology, Granit XP XR models offer an ideal blend of no-sacrifice near-field scanning plus the expanded range to read UPCs at 1.5 m and rack labels at 10 m, addressing many warehouse, distribution centre and manufacturing requirements.

. Created for applications where high-speed scanning is needed to maximize productivity and where durability is non-negotiable for low total cost of ownership, the Granit XP 1991iXR scanner offers the optimal solution.

Features

  • Built rugged to survive operating in harsh environments
  • Extreme performance scanning
  • Recessed, scratch and impact resistant scanning window
  • Near field and extended range reading of barcodes
  • 36 Month RTB Warranty (12 Months on Battery)

Specifications

 Scanner Desktop/Wall Mount Base
Mechanical
Dimensions 192 mm L x 76 mm W x 100 mm H 245 mm L x 102 mm W x 60 mm H
Weight 405g 250g
Environmental
Operating Temperature -20 to 50°C
Storage Temperature -40 to 70°C
Relative Humidity 0% to 95% non-condensing
Drop 2 m: 50 drops from -30°C to 50°C, uncontrolled RH
2.4 m: 20 drops at 25°C, 55% RH
3 m: MIL-STD-810G, 25°C, 55% RH

Environmental Sealing IP67 and/or IP65 IP51
Light Levels 0 to 100,000 lux(9,290 foot-candles)
ESD ±20 kV air discharge, ±8 kV contact discharge
Electrical
Battery 2450 mAh Li-ion
Charging Power   5 W (1A @ 5 V)
Standby Power   0.6W (120mA @ 5 VDC)
Expected Operation Battery: 14 hours(1 scan per second)
Expected Charge Time Battery: 3.0 hours
Optical
Optics 2D Imagerr (1280 x 800 pixel array)
Motion Tolerance Up to 4.5 meters/second
Scan Angles 40° Horizontal; 30° Vertical
Roll, Pitch, Skew -360°, 45°, 65°
Print Contrast Ratio 20% Minimum Reflective Difference
Symbologies Decoded Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies
User
Good Decode, Bluetooth connectivity, Battery status LEDs, Beeper (adjustable tone and volume), Vibration (adjustable) USB, Keyboard Wedge, RS232 TTL
Communications
Host System Interfaces USB, Keyboard Wedge, RS232 TTL
Bluetooth Radio 2.4 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v4.2; Class 1: 100 m line of sight


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Honeywell Granit 1991iXR Wireless 2D Barcode Reader Kits
1991IXR-3SER-5-R
1991IXR-3USB-5-R HONEYWELL SCANNER GRANIT 1991IXR BT 2D USB KIT $2,497.00 C3
[B] Interface Cables
CBL-020-300-C00 HONEYWELL CABLE SCANNER RS232 5V 3M CLD BLK $44.00 C2
CBL-020-300-C00-01
CBL-020-300-C00-02 HONEYWELL CABLE RS232 5V SIGNAL DB9F COILED 3M IND $77.00 C2
CBL-500-300-C00 HONEYWELL CABLE 1200/1300/1900 USB A COILED 3M BLK $44.00 C2
CBL-500-300-C00-07 HONEYWELL CABLE 1980/1990 USB COILED 3M INDUST $88.00 C2
CBL-500-300-S00 HONEYWELL CABLE 1200/1300/1900 USB A STR 3M BLK $44.00 C2
CBL-500-300-S00-01
CBL-500-500-C00 HONEYWELL CABLE 1200/1300/1900 USB A COILED 5M BLK $44.00 C2
CBL-720-300-C00
CBL-800-300-C00
[C] Charging Base
CCB22-100BT-03N HONEYWELL DOCK CHARGE/COMMS BT GRANIT XP 191XI $638.00 C2
COB22 HONEYWELL DOCK CHARGE BASE FOR GRANIT 1991X $550.00 C2
[D] External Battery Charger
MB4-BAT-SCN01NAD0
MB4-BAT-SCN01NAW0 HONEYWELL DOCK CRG BATT 4-BAY VOYAGER/GRANIT/XENON $627.00 C2
[E] Battery
BAT-SCN05 HONEYWELL BATTERY LITHIUN-ION 1952G/1991I $154.00 C2
[F] Accessories
PS-05-1000W-I HONEYWELL PSU AC 5V 1202G/191XI/198XI/199XI/7980G $66.00 C2
HOLSTER-INDUSTRIAL
TOOLBAL HONEYWELL REEL KIT SCANNER $264.00 C2
520-24-H3
520-36/48-H3
[G] Service Contracts
SVC1991XLR-SG3N HONEYWELL EDGE SERVICE GOLD 1991XLR 5D 3Y $187.00 V
SVC1991XLR-SG5N HONEYWELL EDGE SERVICE GOLD 1991XLR 5D 5Y $374.00 V
SVCREPLACE-SCN3 HONEYWELL EDGE SERVICE ADDON SCANNER REPLACE 3Y $44.00 V
SVCREPLACE-SCN5 HONEYWELL EDGE SERVICE ADDON SCANNER REPLACE 5Y $77.00 V
