Honeywell - HF800
OEM Barcode Reader


The new Honeywell fixed-mount HF800 industrial barcode reader delivers outstanding reading capability for all types of 1D and 2D codes including those on printed labels and the most difficult direct part mark (DPM) barcodes, making it perfect for production data tracking for PCB and precision electronic parts, food production process management and confirmation of logistics barcodes on the external packing cartons of electrical and mechanical parts.

The HF800 is equipped with a 500K-pixel imager capable of collecting images at 60 fps. With its built-in red LED light source, combined with an exceptional DPM decoding algorithm, the HF800 is able to successfully resolve DPM Barcodes. In addition, its compact size makes it ideal for use in industrial environments with limited space. The IP65 protection rating also ensures that it can handlevarious harsh working environments.

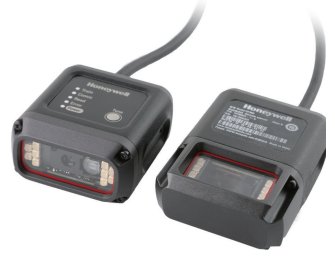

The HF800 is integrated with network ports, RS232 port and RS485 port as well as I/O port input to meet the needs of users in different application environments. A 0-degree and 90-degree version for vertical or horizontal mounting can be selected based on the site’s actual working needs.

Depending on the working distance, there are 3 different versions available– HD, SR and ER. The user can select the product that suits their needs for working distance and field of vision.

Features

  • Industrial Grade Barcode Reader
  • 0° and 90° Options
  • Ethernet, RS232 and RS485 Support
  • External I/O available
  • DPM Reading capable
  • 12 month Return to Base Warranty with Extended Maintenance options

Specifications

Horizontal, 0°Vertical, 90°
Mechanical
Dimensions 54.5mm L x 52.5mm H x 29mm H 73.2mm L x 52.5mm H x 29mm H
Weight 210 g 265 g
Environmental
Operating Temp. 0 to 50° C
Storage Temp. -20 to 70° C
Relative Humidity 10% to 90% (non-condensing)
Environmental IP65
Electrical
Voltage Range 10-30V/DC
5M, Max.
Optical
Imager Global Shutter, CMOS, 938x640 pixels
Model Read Distance Options
HD
SR
ER
(Depending on Barcode)
50-195mm
64-375mm
147-400mm
(Depending on Barcode)
25-170mm
39-350mm
122-375mm
Imaging Speed 60fps
Light Source Visible Red LED's
Aimer Laser Indicator LED Indicator
Symbologies Decoded
Reads standard 1D, PDF, 2D and Postal Symbologies
(OCR Option Available)
Communications
Interfaces Supported Ethernet, RS232, RS485
Network Mode Master/Slave

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Honeywell HF800 Scanner Only
HF800ER-1-1H #N/A #N/A C2
HF800ER-1-1V HONEYWELL SCANNER HF800 2D-ER ETH VER-CAMERA BLK $2,948.00 C2
Other configurations available on request
[B] Cables
50142347-001 HF800 Cable, Eternal, DB25F $77.00 A
50143315-001 HF800 Cable, Ethernet, M12 to RJ45 - 2m $77.00 A
HCB-PWRIO-105 ACC,Cable(Connect Comm Box,5M,IO&Power),HF800 $88.00 C2
[C] I/O Expansion Box
HBX-COMM-100 HBX HF8xx Communication Box, (no comm) $264.00 A
[D] Mounting Brackets
UMD have an extensive range of mounting hardware, including custom designed (laser cut)
[E] Extended Warranty
Contact UMD's After Sales Support team for a quotation.
