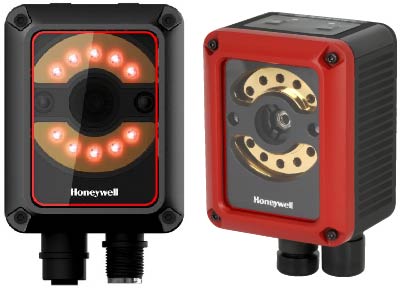

Honeywell - HF810 & HF811
Fixed Mount Reader
 |
The Honeywell HF810 & HF811 2D fixed mount industrial scanners deliver outstanding performance for the automatic detection and capture of barcodes. Its compact form factor offers DPM capabilities for rapid scanning in manufacturing. It is ideal for warehouse, distribution centres and manufacturing applications. Maximise uptime and productivity with flexible functionality for accessories such as external triggers and lighting. These fixed mount scanners are integrated with connection to Ethernet, RS232 and RS485 including support for industrial protocols (Ethernet/IP, MODDUS, POFINET). The HF810 & HF811 can even be networked to build a complete warehouse management solution. Features
|
|---|
Specifications
| HF810 | HF811 | |
|---|---|---|
| Mechanical | ||
| Dimensions | 70 mm H x 55 mm W x 45 mm D | |
| Weight | 180 g | |
| Environmental | ||
| Operating Temp. | 0 to 50° C | |
| Storage Temp. | -20 to 70° C | |
| Relative Humidity | 5% to 95% (non-condensing) | |
| Ingress Protection | IP65 | |
| Electrical | ||
| Input Voltage | 240V | |
| Output Current | 24VDC / 5A | |
| Optical | ||
| Scan Pattern | Area Imager | |
| Resolution | 0.5 MP | 2 MP |
| Scan Angle | Horizontal: 20-39° (Narrow vs. Wide FOV) Vertical: 11-22° (Narrow vs. Wide FOV) | |
| Symbologies Decoded | Reads standard 1D, PDF, 2D (QR, Datamatrix, Maxicode, Aztec) DPM | |
| Communications | ||
| Interfaces Supported | Ethernet, RS232, RS485, TCP/IP | |
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] Honeywell HF810 Scanner Only | ||||
| HF810-01RT00004K-R | HF810, 0.5 MegaPixel, Narrow FOV, Red LED Illuminations | $2,101.00 | C3 | |
| HF810-11RT00004K-R | HF810, 0.5 MegaPixel, Wide FOV, Red LED Illuminations | $2,101.00 | C3 | |
| [B] Honeywell HF811 Scanner Only | ||||
| HF811-01RT00004K-R | HF811, 2 MegaPixel, Narrow FOV, Red LED Illuminations | $2,398.00 | C3 | |
| HF811-11WT00004K-R | ||||
| [C] Cables | ||||
| HF8TCB-ETHER-002 | ||||
| HF8TCB-SERIAL-002 | ||||
| HF8TCB-IOB-002 | HONEYWELL CABLE PWR/SERIAL/IO M12 2M FOR HF81X | $121.00 | C3 | |
| HCB-PWR-02 | HF81X Power Supply, 24V | $253.00 | C3 | |
| [D] Mounting Brackets | ||||
| HF8ACC-BRACKET-01 | HF81X Installation Bracket | $22.00 | C3 | |
| UMD have an extensive range of mounting hardware, including custom designed (laser cut) | ||||
| [E] Accessories | ||||
| HF8TCB-IOB-005 | HF81X Power, Serial & IO Cable with M12 connector to device and bare wires to host, 5 meters | $110.00 | C3 | |
| HF8TCB-ETHER-005 | HF81X Ethernet Cable with M12 connector, 5 meters | $110.00 | C3 | |
| HF8TCB-SERIAL-005 | ||||
| [F] Extended Warranty | ||||
| HF810 Extended Warranty | ||||
| SVCHF810-EXW1R | ||||
| SVCHF810-EXW2 | ||||
| SVCHF810-EXW3 | ||||
| Add-ons for Extended Maintenance Support | ||||
| SVCHF810-SG3N | HONEYWELL EDGE SERVICE GOLD HF810 5D 3Y | $264.00 | V | |
| SVCHF810-SG5N | ||||
| HF811 Extended Warranty | ||||
| SVCHF811-EXW1R | ||||
| SVCHF811-EXW2 | ||||
| SVCHF811-EXW3 | ||||
| Add-ons for Extended Maintenance Support | ||||
| SVCHF811-SG3N | HONEYWELL EDGE SERVICE GOLD HF811 5D 3Y | $286.00 | V | |
| SVCHF811-SG5N | ||||
