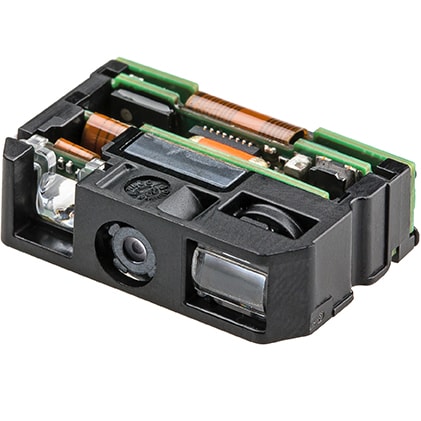

Honeywell - N6600 Series 2D Module
Bar Code Reader - OEM Engine


Enhanced performance barcode imaging is now slimmer and more compact. The N660X Series 2D imager integrates Honeywell decoding and imaging technology in our most compact design. The enhanced 1D and 2D scanning performance also provides an improved user experience and more integration flexibility.

Built on Honeywell's imaging platform, this technology delivers an enhanced barcode reading experience, with increased speed and improved accuracy. Inside the ultra-compact N660X Series engine, a proprietary imaging sensor is embedded that is designed specifically for professionalbarcode reading. With its white illumination, this compact sensor captures more detail and is very motion tolerant—making it easier to decode hard-to-read barcodes and tolerate challenging ambient light environments.

Interface flexibility was critical in the design of the N660X Series. It supports both traditional parallel and MIPI interfaces for emerging technologies. This enables easier integration with the latest processors, saves space, reduces overall design cost and shortens the integration and development cycle. The N660X Series is also backwards-compatible with nearly all N560X Series designs, which reduces development complexity and makes it easier and faster to integrate.

The N660X Series is available with an LED-based aimer (N6600) that provides a sharp, green aimer line which is clear and has better visibility, and makes targeting and scanning easier. To better fit our customers' application requirements a better visible laser aimer (N6603) is also available.

As the next-generation flagship product, the N660X Series utilizes the latest Honeywell decoding and imaging technology. It is also a smart choice for enterprise mobility, tablet, sledand wearable device makers who do not want to compromise thermal management, power consumption, peak current control and EMI for enhanced 2D scanning performance.

Features

  • Omni-directional bar code reading
  • Compact size
  • Supports all common 1D & 2D barcodes
  • Highly Visible Green LED aimer or Laser aiming box option
  • Parallel or MIPI Interface Support
  • Reliable solid state technology with low power consumption
  • Ideal for integrating into equipment requiring barcode capability
  • 15 month Honeywell shipment date limited warranty

Specifications

Mechanical
Dimensions 6.8 mm (h) x 16.2 mm (d) x 23.5 mm (w)
Weight 3g
Environmental
Operating Temp. -25 to 50°C
Storage Temp. -40 to 85°C
Relative Humidity 0% to 95%(non-condensing, at 50°C)
Vibration 5,1 mm [0.20 in] peak-to-peak displacement from (5 Hz to 22 Hz), 5 G acceleration (22 Hz to 300 Hz)
Shock 3,500 G for 0.4 ms at 23°C
Electrical
Voltage 3.3 VDC ± 5%
Operating Current N6603 (laser aimer): 315 mA
N6600 (LED aimer): 375 mA
Hibernate Current 150 mA
Optical Characteristics
Scan Rate Upto 60 frames per second
Optical Proprietary CMOS sensor with global shutter and 844 × 640 pixel resolution;60 frames per second max
Illumination White LED (exempt risk group)
Aiming Assist Visible green LED Line (N6600) or Red Laser Aiming Box (N6603)
Scan Angle Tilt: 360°, Pitch: ± 45°, Skew: ± 60°
Print Contrast Ratio 20% (minimum)
Motion Tolerance Up to 584 cm per second in total darkness with 100% EAN at 10 cm read distance
Depth of field Standard Range: 28-420mm depending on barcode
45-820mm depending on barcode
Communications
Interface Parallel or MIPI
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Honeywell N6600 OEM Scan Engine Kit (Order all parts)
N6600SR-W0-102
MINI DB
50126121-001
50121763-001
Other Configurations available on request
[B] Support
Engineering support is available on this product including interfacing. Contact UMD for details.
