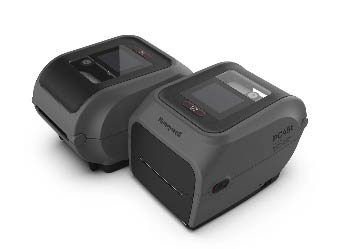

Honeywell - PC45
Barcode Label Printer


The Honeywell PC45 series desktop printers are compact and reliable enterprise label printers designed to tackle the rapidly changing work environment. The PC45 upholds the PC series’ long tradition of reliable performance. These printers are ideal for businesses requiring a durable, secure and stable printing platform.

The PC45 supports multiple print languages and features a large LCD colour touch screen. Stay connected with Wi-Fi 5 and Bluetooth 5.1 Low Energy. Utilise WLAN and optional WWAN connectivity to connect printers over variating distances. Ensure smooth operations and uninterrupted transitions with network protocols from a local server or within the cloud.

Take advantage of optional RFID, low media and low ribbon enabled sensors to enhance printing capabilities and avoid unnecessary downtime. Remote management features guarantee notification upon error and allows configuring printer settings over the air. Available in direct thermal and thermal transfer models.

Features

  • Direct Thermal & Thermal Transfer printing models
  • Graphical user interface with full touch 3.5” LCD display
  • Available in 203 or 300dpi
  • Smart media calibration
  • Variety of printing languages
  • Optional RFID Reader/Writer

Specifications

 PC45DPC45T
Physical Characteristics
Length
168 mm
179.6 mm
Width
181.3 mm
212.9 mm
Height
215.6 mm
285.5 mm
Weight
1.8 kg
2.7 kg
Environmental Characteristics
Operating Temperature
0°C to 45°C
Storage Temperature
-20°C to 75°C
Power
Input
100–240V AC/50–60 Hz, 1.5 A
Output
24V DC, 3.15 A
Media Specifications
Maximum Media Width
118 mm
Maximum Media Length
6.35 mm
Media Roll Capacity
127 mm O.D
Media Types
Wristband, tags, receipt paper, linered and linerless labels, labels with black mark or gap
Media Sensing
Gap, notch, black mark, continuous
Print Specifications
Width (maximum)
203 dpi: 108 mm
300 dpi: 106 mm
Print Speed
203 dpi: 2ips up to 8ip
300 dpi: 2ips up to 6ip
Print Resolution
203 dpi: 8 dots/mm
300 dpi: 12 dots/mm
Memory
Standard
256 MB RAM
512 MB Flash
Interfaces
Standard
Ethernet 10/100 Mbps, USB 2.0 Host High Speed, USB 2.0 Device High Speed
Optional
RS-232, up to 115.2 KB/s
RFID Option
1 8000-6C / EPC Class 1 Generation 2
Optional
User Interface
88.9 mm (3.5 in) 320 x 240 Colour LCD, 1 Print/Feed button and ready-to-work LED


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Honeywell PC45 Direct Thermal Printer
PC45D000000200 HONEYWELL PRINTER PC45D DT 203DPI ETH $770.00 C2
PC45D00EU00200 HONEYWELL PRINTER PC45D DT 203DPI ETH RFID $2,695.00 C2
PC45D020000200 HONEYWELL PRINTER PC45D DT 203DPI ETH/WIFI $990.00 C2
PC45D100000200
PC45D200000200
[B] Honeywell PC45 Thermal Transfer Printer
PC45T000003200 HONEYWELL PRINTER PC45T TT 203DPI ETH RTC $1,078.00 C2
PC45T000003300 HONEYWELL PRINTER PC45T TT 300DPI ETH RTC $1,848.00 C2
PC45T000003200 HONEYWELL PRINTER PC45T TT 203DPI ETH RTC $1,078.00 C2
PC45T000003300 HONEYWELL PRINTER PC45T TT 300DPI ETH RTC $1,848.00 C2
[C] Cables
2-5199-020-0 CA199-2 IEC Power C13 to AU 3 pin Plug $8.80 A
[D] Accessories
205-190-005 HONEYWELL PC45D/PC45T EXTERNAL MEDIA HOLDER $242.00 C3
205-187-004 HONEYWELL PC45D LINERLESS CUTTER KIT $506.00 C3
205-187-003
205-187-002
205-188-002
205-188-001 HONEYWELL PD45T SELF STRIP LABEL TAKEN SENSOR $88.00 C3
205-187-001
[E] Extended Maintenance Support Options
SVCPC45-SG3N HONEYWELL EDGE SERVICE GOLD PC45 5D 3Y $165.00 V
SVCPC45-SG5N HONEYWELL EDGE SERVICE GOLD PC45 5D 5Y $297.00 V
Printhead Refresh Service -Contract Add-On Option (pre-purchase printheads at a discount)
SVCPRINTHEAD-PC1 HONEYWELL EDGE SERVICE ADDON PRINTHEAD PC 1Y 1PH $132.00 V
SVCPRINTHEAD-PC3 HONEYWELL EDGE SERVICE ADDON PRINTHEAD PC 3Y 2PH $253.00 V
SVCPRINTHEAD-PC5 HONEYWELL EDGE SERVICE ADDON PRINTHEAD PC 5Y 3PH $374.00 V
