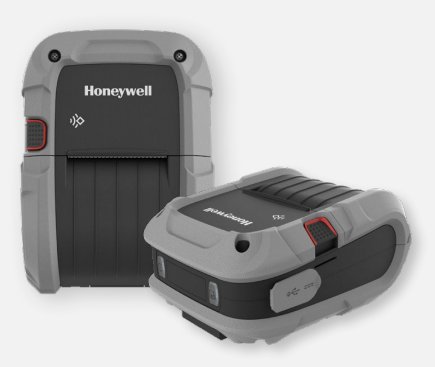

Honeywell - RPf Series
Portable Wireless Printer


The RPf Series mobile thermal printers are built for the most rugged environments, offering exceptional media and battery capacity, quiet operation, and excellent value to help operations increase efficiency and minimize downtime.

These portable printers provides big productivity gains and reduce errors by enabling workers to print labels at the location they need, so labels can be applied when and where they need to be applied. The RPf printers comes with powerful CPU and smart power management – allowing smooth, continuous operation so your workers can work efficiently with less media reloading, battery swaps, and downtime. The RPf Series printers print 25.4mm (1 in) to 104.1 mm (4.1 in) labels, tags or receipts and can accommodate a wide variety of media, including the heavy stock necessary for hang tags and specialty label needs. Plus, its fast and easy-loading design means fewer interruptions and increased productivity in your application, whether using one type of media or several. The RPf Series has the latest Wi-Fi capabilities for the best range and speed of communication on your network, and also include Bluetooth 5.0 LE for when workers are outside of WLAN range or using the printer with a Bluetooth mobile computer.

Built on Honeywell’s software platform, the RPf printer offers IT managers easy integrated device management, a high level of security throughout the entire printer lifespan, and upgrades that allow your printers to be updated with enhanced features.

Features

  • High power efficiency
  • Smart printing
  • Rugged and reliable
  • Hot-swap battery
  • 12 Month Return to Base Warranty with Extended Warranty Options Available

Specifications

 RP2fRP4f
 Physical Characteristics
Width160 mm164 mm
Height116 mm187 mm
Depth77 mm77 mm
Weight 720g(with battery)1020g(with battery)
 Environmental Specifications
Operating Temperature-20°C to 55°C
Storage Temperature-30°C to 65°C
Operating Humidity20% to 80% (Non-Condensing)
Storage Humidity20% to 80% (Non-Condensing)
Rain & Dust ResistanceIP54
Drop Spec2.0m to concrete
Tumble1,000 cycles at 0.5 m
 Power
Battery Type7.2V LiIon
Battery Capacity2500mAh4900mAh
Full Recharge Time4 Hours7 Hours
Power InputDC Inputs, for charging only 12–15V
Built-in spike and surge protection
 Printer Mechanism
Resolution203dpi (8 dots/mm)
PrintheadDirect Thermal
Print Speed25-125 mm/s
Media Width25 mm to 57 mm51 mm to 111 mm
 Controller
Printer Command Language SupportFP/DP (Fingerprint / Direct Protocol)
DPL (Datamax Printer Language)
ZPL II (Zebra Printer Language)
IPL (Intermec Printer Control Language)
XML Printing
C#
PDF
CPCL
EZ-Print
Memory256 MB SDRAM, 2 GB Flash
User Interface On/Off Button, Battery Charge, Battery Life, Media Status, Communication Status LED's
 Fonts
ResidentYes
DownloadableTrueType Font, TrueType Font, Bitmap Font(TrueType based)
GraphicsSupports GIF, PNG, PCX, BMP graphics
Barcode SymbologiesAll major 1D and 2D symbologies are supported.
 Media Specifications
Media TypeThermal Paper, One Ply, Tags, Receipt Paper, Linered and Linerless* Labels with black mark or gap sensing
Print Width48 mm Max.104 mm Max.
Roll Diameter58 mm
Core Inner Diameter10 mm, 19 mm or 25.4 mm
Media Thickness0.05 mm (2 mil) to 0.16 mm (6.3 mil)
 Interface
StandardUSB 2.0: Includes OTG for scanner, scale, and keyboard input
NFC: For pairing
Bluetooth 5.0 + LE dual radio mode, SPP, security modes 1-4, encryption 1-3e, Apple iOS compatible
WiFi 802.11 a/b/g/n/ac

* For use in RP Series printers equipped with linerless option only

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Honeywell RP2f Portable 2" Printer (Includes Battery)
RP2F0000D20 HONEYWELL MOB RP2F 2 INCH BT USB NFC WIFI $1,298.00 A
[B] Honeywell RP4f Portable 4" Printer (Includes Battery)
RP4F0000D22 HONEYWELL MOB RP4F 4/INCH BT/USB/WIFI NFC $1,650.00 A
[C] Accessories
Power Supplies & Chargers
220518-100 HONEYWELL PSU AC PRINTPAD/MF2T/MF4T/RL/RP2/RP4 $154.00 A
Wall Mount Kit, Order power supply separately:
229042-000 HONEYWELL DOCK CHARGE WALL KIT 1-BAY RP2/RP4 $231.00 A
5-Printer Wall Mount Kit, Order IEC power cable separately:
229043-000 HONEYWELL MULTIDOCK KIT CHARGE 5-BAY RP2/RP4 $1,353.00 A
2-5199-020-5
12V Only Car power adaptor:
510116-001-SP HONEYWELL CABLE CIGARETTE LGHT PWR CBL 12V PR2/RP4 $77.00 C2
Holders, Straps, etc
210302-000 HONEYWELL SHOULDER STRAP RL3E/RL4E/RP2/RP4 $66.00 A
210305-000-SP HONEYWELL BELT CLIP CORDURA MOUNT RL4E $99.00 A
280797-000-SP
50134863-001 HONEYWELL RP2 SOFTCASE $264.00 C2
750336-000 HONEYWELL CASE ENVIRONMENTAL SOFT FOR RP4 $264.00 C1
Replacement Batteries
50166632-001
50138010-001 #N/A #N/A C2
[D] Extended Maintenance RP2f
SVCRP2-SG3N HONEYWELL EDGE SERVICE GOLD RP2 5D 3Y $286.00 V
SVCRP2-SG5N HONEYWELL EDGE SERVICE GOLD RP2 5D 5Y $495.00 V
SVCRP2-SG1R HONEYWELL EDGE SERVICE GOLD RP2 5D 1Y RNW $121.00 V
[E] Extended Maintenance RP4f
SVCRP4-SG3N HONEYWELL EDGE SERVICE GOLD RP4 5D 3Y $385.00 V
SVCRP4-SG5N
SVCRP4-SG1R HONEYWELL EDGE SERVICE GOLD RP4 5D 1Y RNW $154.00 V
[F] Extended Maintenance Add-On Options:
SVCACC-PRN3 HONEYWELL EDGE SERVICE ADDON PRINTER ACCESSORY 3Y $286.00 V
SVCACC-PRN5 HONEYWELL EDGE SERVICE ADDON PRINTER ACCESSORY 5Y $473.00 V
SVCREPLACE-PRN3 HONEYWELL EDGE SERVICE ADDON PRINTER REPLACE 3Y $143.00 V
SVCREPLACE-PRN5 HONEYWELL EDGE SERVICE ADDON PRINTER REPLACE 5Y $253.00 V
SVCSPAREMGMT-PRN3 HONEYWELL EDGE SERVICE ADDON PRINTER ADV EXCH 3Y $275.00 V
SVCSPAREMGMT-PRN5 HONEYWELL EDGE SERVICE ADDON PRINTER ADV EXCH 3Y $495.00 V
