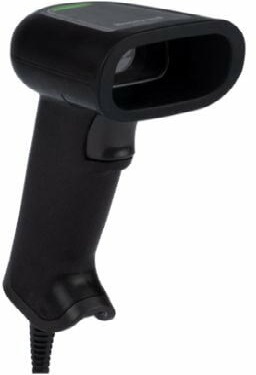

Honeywell - Xenon Ultra 1960
Handheld 2D Barcode Reader
 |
The Honeywell Xenon Ultra 1960 Premium Corded Scanner takes an industry leading step over the legacy Xenon and Xenon XP general purpose scanners. Use Honeywell’s next generation scanning technology to maximise uptime and productivity. Meet increased customer demands and expectations with the latest Xenon premium corded scanner. The Xenon Ultra family offers superior scanning performance on damaged and low quality barcodes to reduce wasted seconds on every scan. The 1960g for retail has an optional dual camera extended range (XR) model that captures from up-close high density to extended scanning distances. The 1960li for light industrial applications is engineered to perform in either handheld trigger mode or presentation mode without sacrificing quality. Scanning capabilities can capture both paper and light direct part mark barcodes. The improved software algorithm makes it an ideal addition to light industrial applications. Features
|
|---|
Specifications
| Mechanical | |
|---|---|
| Dimensions | 108.2 mm L x 70.4 mm W x 160.2 mm D |
| Weight | 147.2g |
| Environmental | |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -40 to 70°C |
| Relative Humidity | 0% to 95% non-condensing |
| Drop | Designed to withstand 2000 1.8 m drops to concrete |
| Ingress Protection | IP52 |
| Electrical | |
| Input Voltage | 4.4 to 5.5 VDC |
| Operating Power | 2.5 Watts (500mA @ 5 VDC) |
| Optical | |
| Motion Tolerance | SR/XR – 4 m/sec HD – 3.4 m/sec |
| Scan Angles | SR/HD: 42° Horizontal; 36° Vertical |
| Print Contrast | As low as 15% |
| Symbologies Decoded | Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code and OCR symbologies |
| Communications | |
| Host System Interfaces | USB, Keyboard Wedge, RS232 |
| User Feedback | |
| LED | Good Decode LEDs, Rear View LEDs |
| Optional | Beeper (adjustable tone and volume) |
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] Honeywell Xenon Ultra 1960g 2D Barcode Reader Kits | ||||
| 1960GSR-2USB-R | ||||
| 1960GHD-2USB-R | HONEYWELL SCAN KIT XENON ULTRA 1960G 2D-HD USB BLK | $330.00 | C3 | |
| [B] Honeywell Xenon Ultra 1960li 2D Barcode Reader Kits | ||||
| 1960LI-2USB-A | ||||
| [C] Interface Cables | ||||
| CBL-020-300-C00 | HONEYWELL CABLE SCANNER RS232 5V 3M CLD BLK | $44.00 | C2 | |
| CBL-500-150-S00 | HONEYWELL CABLE USB-A 1.5M 5V STRAIGHT | $44.00 | C2 | |
| CBL-500-300-S00 | HONEYWELL CABLE 1200/1300/1900 USB A STR 3M BLK | $44.00 | C2 | |
| CBL-500-500-C00 | HONEYWELL CABLE 1200/1300/1900 USB A COILED 5M BLK | $44.00 | C2 | |
| CBL-503-300-C00 | ||||
| CBL-503-300-S00 | ||||
| [D] Power Supply (For use with serial cable) | ||||
| 46-00528 | HONEYWELL PSU 5.2V 1A 1200/1470/1950/7120/9590 ETC | $77.00 | C2 | |
| [E] Accessories | ||||
| 50129064-001 | HONEYWELL WALL MOUNT BRACKET KIT 19XX | $77.00 | C2 | |
| STND-22F00-016-6 | HONEYWELL STAND 22CM FLEX FOR XENON ULTRA 1960 GRY | $88.00 | C2 | |
| STND-22F00-001-6 | HONEYWELL STAND 22CM FLEX FOR XENON 1950 GRY | $88.00 | C2 | |
| [F] Service Contracts | ||||
| SVC1960-SG3N | ||||
| SVC1960-SG5N | HONEYWELL EDGE SERVICE GOLD 1960 5D 5Y | $176.00 | C2 | |
| SVCREPLACE-SCN3 | HONEYWELL EDGE SERVICE ADDON SCANNER REPLACE 3Y | $44.00 | V | |
| SVCREPLACE-SCN5 | HONEYWELL EDGE SERVICE ADDON SCANNER REPLACE 5Y | $77.00 | V | |
| SVCSPAREMGMT-SCN3 | HONEYWELL EDGE SERVICE ADDON SCANNER ADV EXCH 3Y | $132.00 | V | |
| SVCSPAREMGMT-SCN5 | HONEYWELL EDGE SERVICE ADDON SCANNER ADV EXCH 3Y | $231.00 | V | |
