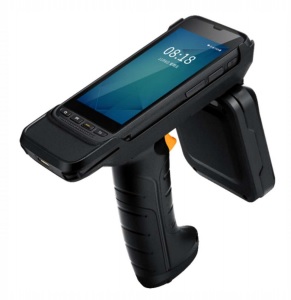

IDATA - iData50P RFID
Portable UHF RFID Reader Solution
 |
The iData 50P RFID Solution is a powerful and durable mobile computer running Andriod 9.0 with a large 4.7" display and Octacore processor, incorporating a high performance UHF Reader/Writer to enable reliable and fuss free RFID operation. With the iData 50P you have a new design for professional and advanced mobile applications suitable for the developing needs of industry. Features
|
|---|
Specifications
| iData50P | With XL1200 RFID Reader | |
|---|---|---|
| Physical Characteristics | ||
| Height | 16mm | 165mm |
| Width | 73.5 mm | 75 mm |
| Length | 150mm | 165mm |
| Weight | 230g | 755g |
| Environmental Specifications | ||
| Operating Temperature | -20°C to 60°C | |
| Storage Temperature | -40°C to 60°C | |
| Humidity | 0 to 95% Non-Condensing | |
| Drop Spec. | 1.5m drop to concrete | |
| Tumble Spec. | 200 1.0m tumbles | |
| ESD | 15 kV air discharge, 8 kV direct discharge | |
| Ingress Protection | IP65 | |
| Hardware | ||
| Processor | Octa-core 2.0 GHz | |
| Memory | 16 GB +2 GB (optional 128GB+ 6GB/64GB+ 4GB/32GB + 3GB) | |
| Expansion | Micro SD card slot, up to 256 GB | |
| Display | 4.7 inch, 1280 x 720 high resolution | |
| Touch Panel | Industrial-grade capacitive touch panel (supporting operation with gloves) | |
| Camera | 8MP, Rear Facing | |
| Keys | 4 front keys, 4 side keys, Power key (can be set as customised key) | |
| Battery | 3600mAh LiPo | Additional 5200mAh LiPo in Handle |
| Audio | Built-in microphone/Micro USB/Headphone connector | Connectors not accessible |
| Alerts | Vibrator/LED/Audio | |
| Sensors | G-Sensor/Proximity Sensor/Light Sensor | |
| Readers | ||
| Barcode | Choice of: 1D: Zebra SE965HP Laser or Honeywell N4313 Laser 2D: Zebra SE4710 Imager or SE4750MR Imager | |
| UHF RFID | EPC Class 1 Gen 2（ISO 18000-6C, 918-926MHz, 4dBi circular polarized antenna, power adjustable from 5dBm to 30dBm | |
| NFC | N/A | |
| Communication | ||
| Bluetooth | Version 5.0 (SPP profile, HID Profile, Apple iAP2/MFi), Class 2 | |
| GPS | GPS/AGPS/Beidou Compass/Galileo/Glonass | |
| WiFi | Wi-Fi 802.11ac/a/b/g/n/r 5G PA (Dual-band Wi-Fi:2.4G+5G) | |
| WWAN | 4G：FDD-LTE：B1/B3/B7/B8/B20 TDD-LTE：B34/B38/B39/B40/B41 | |
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] iData 50P | ||||
| IDATA50P-UHF-KIT-01 | iDATA-50P-UHF | Mobile Computer, N6603 2D, 4G, Wifi, NFC, 8MP Rear 5MP Front Camera, 3600mAh battery, 3 in 1 Single Charge Bay, PSU and cables with UHF RFID Reader/Writer | $2,310.00 | C3 |
| [B] Peripherals | ||||
| DA00-001-005 | IDATA 50 4 Slot Charging Cradle, include PSU | $220.00 | C3 | |
| YD-A5B4 | IDATA 50 4 Slot Battery Charger, include PSU | $209.00 | C3 | |
| [C] Replacement Parts | ||||
| 50A0-I00-000 | iDATA-50P | Mobile Computer, N6603 2D, 4G, Wifi, NFC, 8MP Rear 5MP Front Camera, 3600mAh battery, 3 in 1 Single Charge Bay, PSU and cables | $1,419.00 | C3 |
| 50UH-X00-000 | iDATA-50P-UHF-GUN | UHF RFID Handle / Gun for 50P, 4dBi, includes Charging Cradle, 5200mAH | $880.00 | C3 |
| [D] After Sales Support | ||||
| IDATA-50P-CEW3 | IDATA 50 Terminal - Comprehsive Extended Warranty - 3 years | $704.00 | P | |
| IDATA-XL1200-CEW3 | XL1200 (iData50 RFID Gun) - Comprehensive Extended Warranty - 3 years | $429.00 | P | |
