iData - i3
UHF Intelligent Mobile Terminal

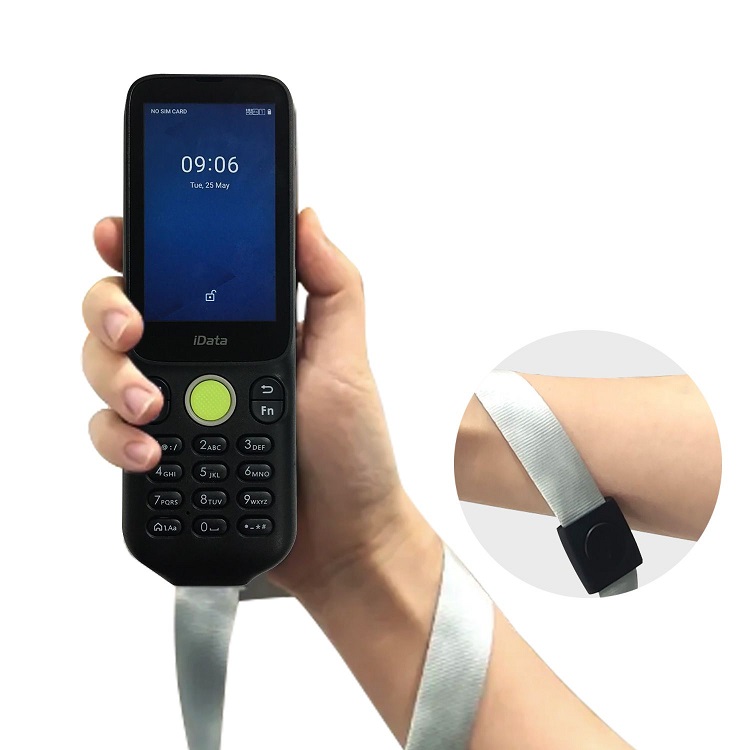

The iData i3 UHF Intelligent Mobile Terminal is leading the trend of getting "smaller."

Designed with a built-in UHF Reader for flexible operation, the i3 is small, light in the hand for full-day operation, with the latest Android 10 Operating System and economical battery consumption.

Features

  • Quad-core 2.0GHz CPU
  • Android 10
  • Compact and lightweight
  • Designed for UHF RFID scanning
  • Built in UHF RFID Reader
  • 12 Month Warranty with extended Support Options

Specifications

Physical Characteristics
Dimensions

158mm x 54mm x 18.5mm
Weight
178g
Environmental Characteristics
Operating Temperature
-20º to 60ºC
Storage Temperature
-40º to 60ºC
Humidity
0 to 95% (Non-Condensing)
Drop Protection
Multiple 1.5m drops to concrete
ESD
±8kV Direct, ±15kV Air
Environmental Protection
IP54
Hardware
Processor
Quad-core 2.0 GHz
Display
8.1 cm (3.2 in), 800 × 480, Industrial-grade Two-point-touch Capacitive Touchscreen
Keys
16 button numeric keypad, 5 position navigation/scan button, 2 side buttons, power
Memory
2GB RAM, 16GB Flash
Power
3.85V 3000mAh LiIon Main Battery
Charging
Type-C charging, charger: 5V/2A, 18W fast charge
Run Time
Min. 8 Hours (Full standard shift)
Radio's
WWAN: GSM/GPRS/EDGE/UMTS/HSPA/HSPA+WCDMA/TD, SCDMA/TDD, LTE/FDD, LTE
WLAN: IEEE 802.11 a/b/g/n/r/ac (Dual-band Wi-Fi: 2.4G+5G); Wi-Fi 5G PA amplifier
Bluetooth: Bluetooth 5.0 LE
NFC: Optional Integrated Near Field Communication
GPS: GPS/AGPS/Beidou/Galileo/GLONASS/QZSS
I/O Ports
1x USB-C - charging with headset function, OTG, built-in speaker/mic
Barcode
2D Imager
Indicators
LED, Vibrator
Sensors
G-Sensor
Operating Environment
Operating System
Android 10
RFID Reader Characteristics
Frequency
920-925 MHz
Protocol
EPC Class 1, Gen2 / ISO 18000-6C
Power
0-25dbm
Read Distance
0-1.5m
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] iData i3
ID30--DSU-400 iDATA-i3 UHF Mobile Intelligent Terminal - UHF RFID, Android 10.0 16/2GB, 3.2800x480 display, Wifi, LTE, BT5, GPS, 2D scanning USB $1,287.00 C4
